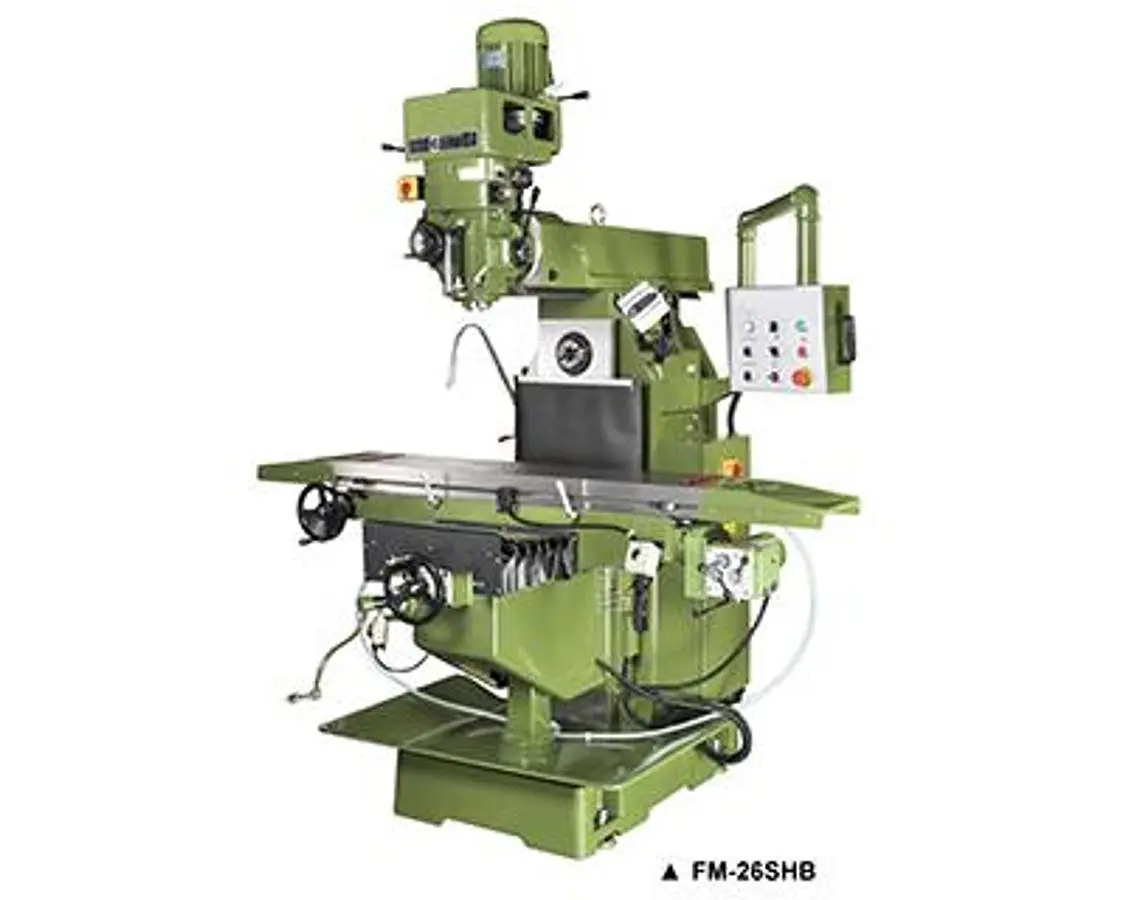

FM-26: FM-28
Longitudinal travel (M./A.): mm 1000 1000
Cross travel (M./A.): mm 400 400
Vertical travel (M./A.): mm 470 440
Slideway X/Y/Z: type △ / □ / □ △ / □ / □
Quill travel: mm 140 140
Overarm travel: mm 700 700
Overarm swivel: degree 360 360
Quill swivel (R&L)/(F&B): degree ±45 / Fixed ±45 / Fixed
Dimension: mm 1370x300 1370x300
T-slots (Width x No. x Pitch): mm 16x3x70 16x3x70
Milling head: type 10/20Steps Inverter 10Steps Inverter
Sped: 60Hz rpm 70-3350(10) 75-3500
50Hz: rpm 58-2780(10) 58-5560(20) 55-3600 60-2870 55-3600
Vertical feeds: mm/rev 0.04/0.08/0.15 0.04/0.08/0.15
Main/ Horizontal taper: type NT 40 NT 40
Horizontal spindle speed: rpm 60HZ:92-1614(9steps) 50HZ:73-1288(9steps) 60HZ:92-1614(9steps) 50HZ:73-1288(9steps)
Main/ Horizontal spindle: HP 5 5
X axis traverse: HP 1/2 1/2
Z axis elevation: HP 1/2 1/2
X axis speed: mm/min 30-1300(9 steps) 30-1300(9 steps)
Z axis speed: mm/min 345 345
Net Weight: kg 2200 2250
