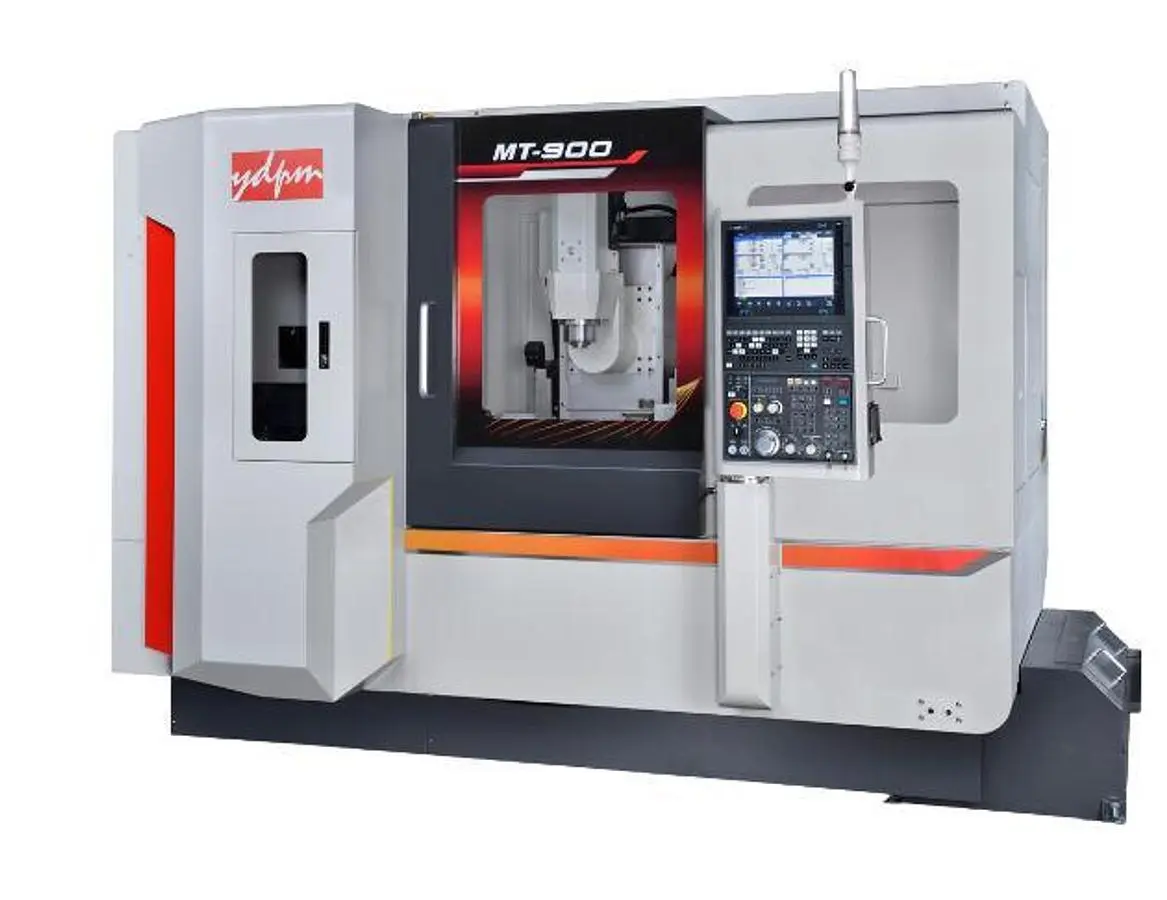

The MT-900 is a multi-axis mill-turn center designed to consolidate turning, milling, drilling, tapping, and multi-face machining into a single setup. With X/Y/Z/W linear axes combined with A, B, C1, and C2 rotary axes, the MT-900 offers flexible machining capability for a wide range of medium-complexity parts. Its configuration is similar to the MT-210, but with a longer machining length to accommodate extended workpieces and larger process requirements.
The machine features a 3,000-rpm main spindle (A2-5) with a 6-inch chuck, suitable for general turning applications. The built-in BBT-30 milling spindle reaches up to 24,000 rpm, supporting efficient light-to-medium milling operations. The B-axis provides ±105° of rotation with 1,080 N-m of torque, enabling multi-angle machining and improved process flexibility. Dual C-axes with 0.001° indexing capability support synchronized operations between the main and sub-spindle.
With rapid traverse speeds up to 30 m/min and a 24-tool magazine, the MT-900 enhances production efficiency in multi-process workflows. The left and right servo turrets (11 stations each) further expand tooling capacity and enable smooth transitions between cutting operations.
The MT-900 is well-suited for general industrial components, automotive parts, mechanical assemblies, and medium-complexity turned-milled work that benefits from process consolidation or reduced handling. By allowing multiple operations to be completed in one setup, the MT-900 improves throughput, consistency, and overall workflow efficiency—especially for users requiring slightly longer machining capability compared to the MT-210.
ITEM: UNIT MT-900
Swing over bed: mm Φ500
Max. machiing diameter: mm Φ300
Max. machining length: mm 922
X/Y/Z/W-axis: mm ±150 / 420 / 900 / 968
B / C1/C2/a-axis: ° ±105° / 360°/ 360° / 360°
Speed: rpm 3,000 (belt-drive)
Spindle nose: A2-5
Spindle bore dia. / Draw bar dia.: mm Φ56 / Φ45
Front bearing inner dia.: mm Φ80
Chuck size: inch 6″
Tool shank type: BBT-30
Max. spindle speed: rpm 24,000 (Built-in)
Max. spindle torque: Nm 7.8
A-axis index: arcmin 1
Rotary angle: ° 360
Max. speed: rpm 3,000
Max. torque: Nm 49
Repeatability accuracy: arcmin ±0.1
B-axis index: arcmin 1
C-axis index: arcmin 1
X/Y/Z/W-axis rapid traverse: m/min 24 / 30 / 24 / 24
Tool capacity: pcs 11
Max. tool diameter / length: mm Ø80 x 150
Max. tool weight: kg 3
Tool change time: sec 4.8
Type: Servo
Squre tool shank: mm 20 x 20
Boring bar shank: mm Ø32
Main-spindle: kw 7
Sub-spindle: kw 3
Milling-spindle: kw 10
X/Y/Z/B/W-axis: kw 1 x 5pcs
Tool magazine: kw 1
Turret (Left / Right): kw 0.75 x 2pcs
Hydraulic oil pump: kw 0.75
Coolant pump: kw 0.85
Requirement: KVA 380-415 / 220V 30KVA
L x W X H: cm 394 x 230 x 254
Net weight: kgs 5,000
Gross weight: kgs 5,284
