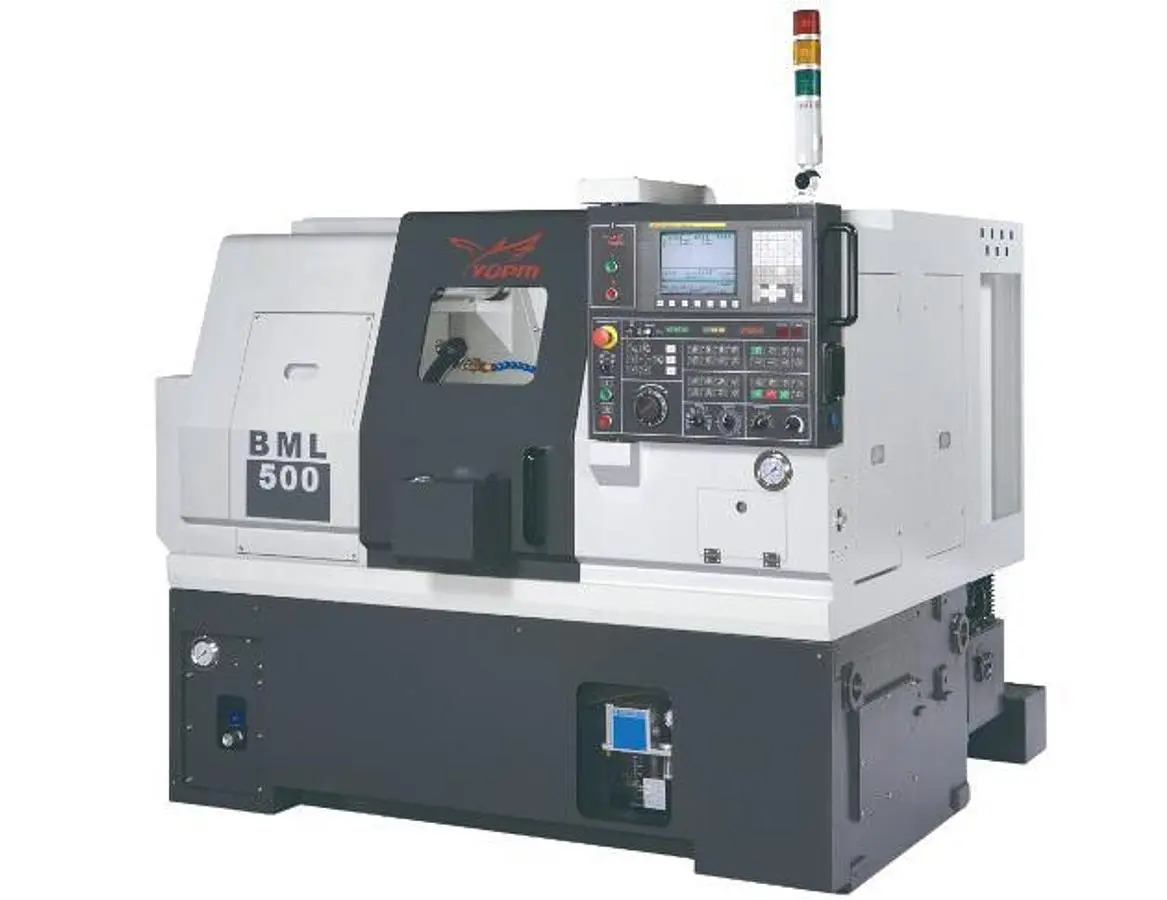

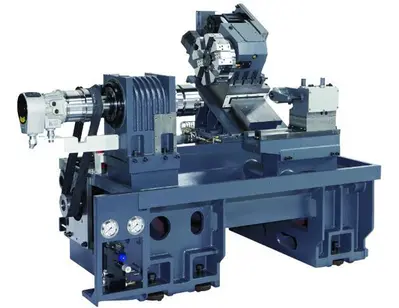

NEW INGENIOUS MACHINERY STD: LS-160; OPT: LS-160SV

ITEM: UNIT BML-500
Swing over bed: mm Φ500
Swing over saddle: mm Φ390
Maximum machining diameter: mm Φ360
Maximum machining length: mm 300
Slant angle of bed: ° 30°
X-axis: mm 195 (180+15)
Y-axis: mm –
Z-axis: mm 330
C-axis: mm –
W-axis: mm –
Spindle speeds: rpm STD: 50~6,000 (6″)
Spindle nose: A2-5
Spindle bore diameter: mm Φ56
Front bearing inner diameter: mm Φ80
Draw bar diameter: mm Φ45
Chuck diameter: inch 6″
Type: Manual
Stations: pcs STD: 10; OPT: 8
Square tool shank: mm STD: 20 x 20; OPT: 25 x 25
Boring bar shank diameter: mm STD: Φ32; OPT: Φ40
Indexing time (0~180°): sec LS-160: 1.8 (8T), 2.0 (10T)
LS-160SV: 2.3 (12T)
Spindle Speeds: rpm –
Rapid Traverse: m/min X: 20, Z: 24
Quill diameter: mm Φ55
Quill bore taper: MT4
Quill travel: mm 80
Tailstock travel: mm 300
Main-spindle: kw ß8 (7.5/11)
Sub-spindle: kw –
Live-tool: kw –
Axis servo motor: kw X/Z – ß8/3000 (1.2)
Hydraulic oil pump: kw 0.745
Chip conveyor: kw 0.2
Coolant pump: kw 0.8
Positioning: mm ±0.003
Repeatability: mm ±0.002
Requirements: KVA 380-415 / 220V 15 KVA
Height: cm 150
Floor space (L x W): cm 200 x 200
Packing (w/conveyor): cm 265 x 227 x 191
Net weight (w/conveyor): kg 3,050
Gross weight (w/conveyor): kg 3,275
