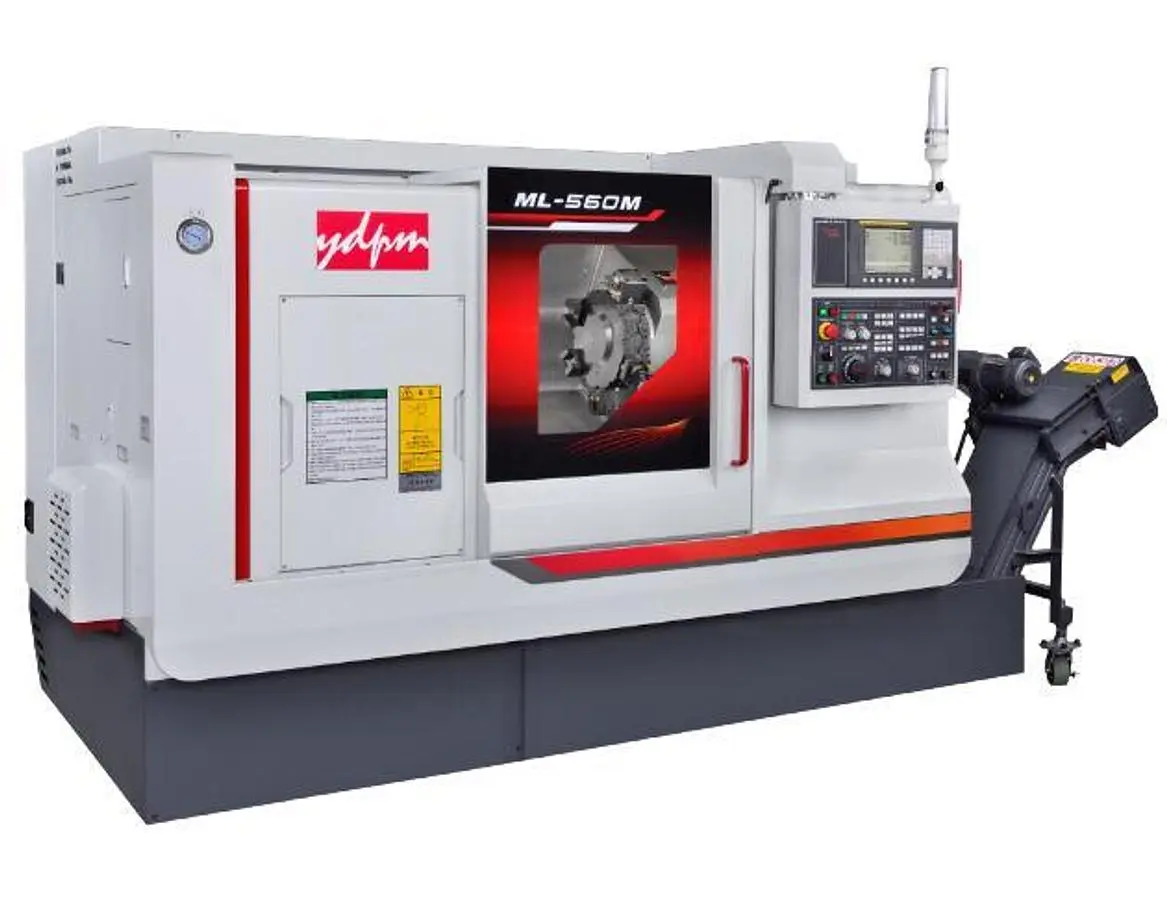

ITEM: BML-560M
Swing Over bed: Ø560
Swing Over Saddle: Ø420
Max. Machining Dia.: Ø320
Max. Machining Length: 570 mm
X-axis: 190 (160+30) mm
Z-axis: 610 mm
C-axis (Optional): 360˚ (0.001˚)
Turret Capacity: STD: 10 pcs
Chuck Diameter: STD 8″
Spindle Speeds: STD: 4,500 (A2-6)
Spindle Nose: STD: A2-6
