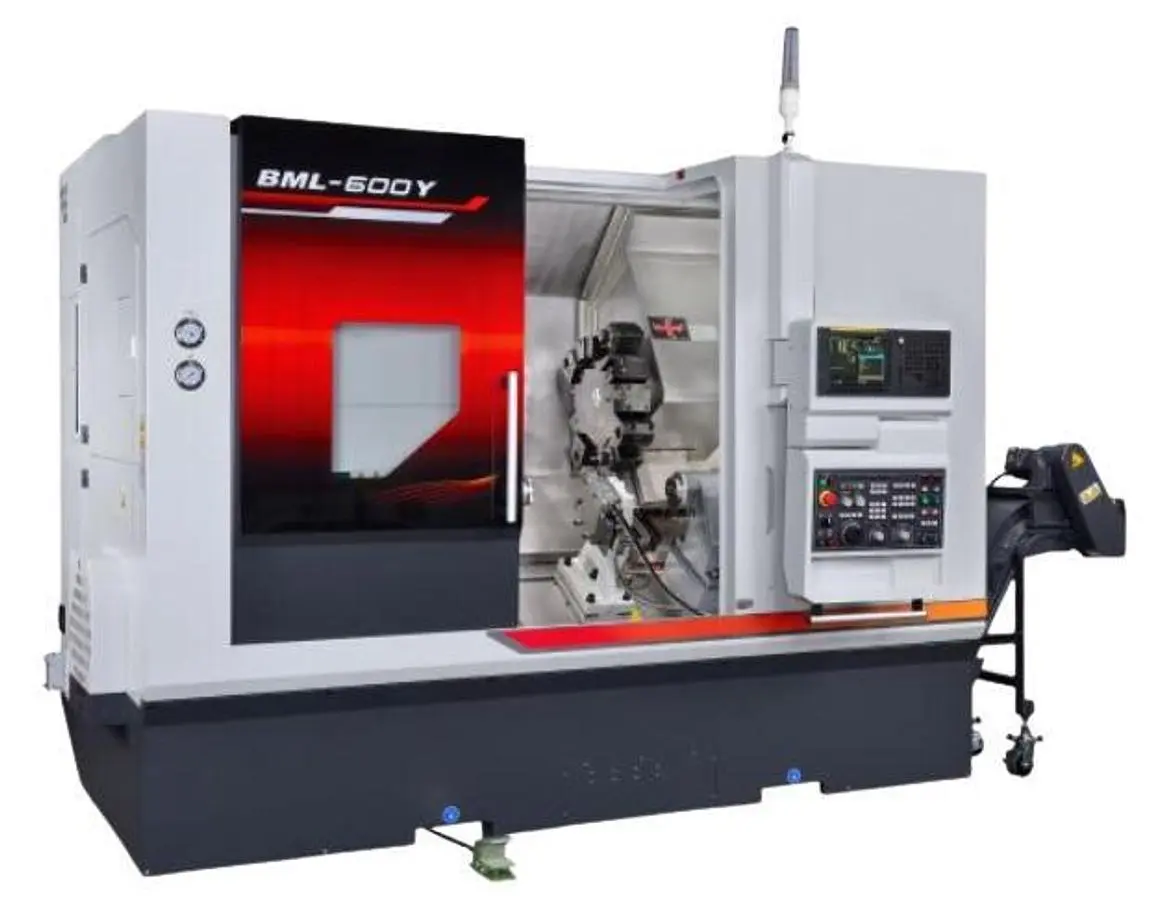

BML-600TY
Overview
MASSIVE SLANT BED STRUCTURE - A guarantee of rigidity and stability
With an aim to build a CNC lathe that provides high productivity, the design of Ingenious BML lathes focuses On minimizing vibration in heavy cutting. All structural parts are ruggedly constructed throughout to ensure deformation-free performance even after years of operation. The outstanding structural rigidity and stability allows for increased cutting depth and feed rates, which in turn reduces machining time.
Highly rigid machine structure
Slant Bed series are designed with a highly rigid slant bed that provides excellent damping capacity and smooth chip evacuation.
High Quality Cast Iron
The machine structure is manufactured from high quality Meehanite cast iron, stress rel eved for lifetime accuracy.
Box Ways on X, Y, Z Axes
Extra-wide box ways on X, Y, Z axes make the machine suitable for heawy' cutting with maximum stability.

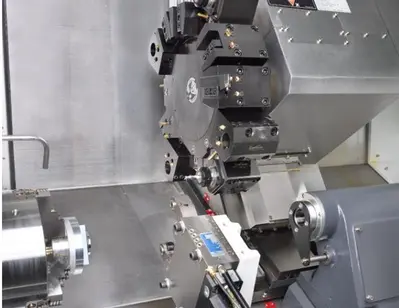

Twin Spindles / Single Turret
• The combination of the main spindle and sub-spindle and a power turret enable a workpiece to be machined completely with just a single setup.
• Designed for elimination secondary machining, ensuring machining accuracy and boosting productivity.
Specs
Swing Over Bed: Ø600
Swing Over Saddle: Ø450
Max. Machining Dia.: BMT65: Ø380 VDI40: Ø285
Max. Machining Length: BMT65: STD: 450 mm (8”) / OPT: 440 mm (10”)
VDI40: STD: 475 mm (8”) / OPT: 465 mm (10”)
Draw Bar Dia.: Ø45
X-axis: BMT65: 206 (190+16) mm
VDI40: 206 (142.5+63.5) mm
Y-axis: 100 (50+50) mm
Z-axis: BMT65: 450 mm
VDI40: 495 mm
Tool Capacity: 12 pcs
Chuck Diameter: STD: 8″+6”(W)
OPT: 10”+6”(W)
Spindle Speeds: Main Spindle:
STD: 50–4,500 (A2-6)
STD: 50–3,000 (A2-8)
Sub Spindle: 6,000 (A2-5)
Spindle Nose: Main: A2-6
STD: A2-8, A2-6 (Built-in)
Sub: A2-5
