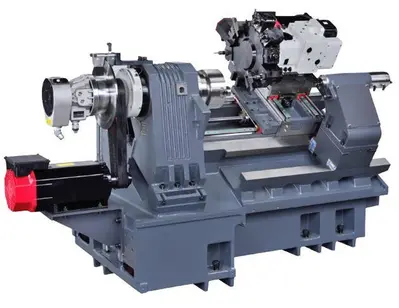

NEW INGENIOUS MACHINERY STD: LS-160A OPT: LS-160SV LS-160SP 434.016 STD: LS-160A OPT: LS-160SV LS-160SP 434.016

new

Welcome to Equipt
Log in or Sign up
Your Cart
You don't have any items in your cart.
NEW INGENIOUS MACHINERY STD: LS-160A OPT: LS-160SV LS-160SP 434.016 STD: LS-160A OPT: LS-160SV LS-160SP 434.016

NEW INGENIOUS MACHINERY STD: LS-160A OPT: LS-160SV LS-160SP 434.016 STD: LS-160A OPT: LS-160SV LS-160SP 434.016

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
CNC Lathes
Manufacturer:
INGENIOUS MACHINERY
Model:
STD: LS-160A OPT: LS-160SV LS-160SP 434.016 STD: LS-160A OPT: LS-160SV LS-160SP 434.016
Stock #:
8167064
Specifications

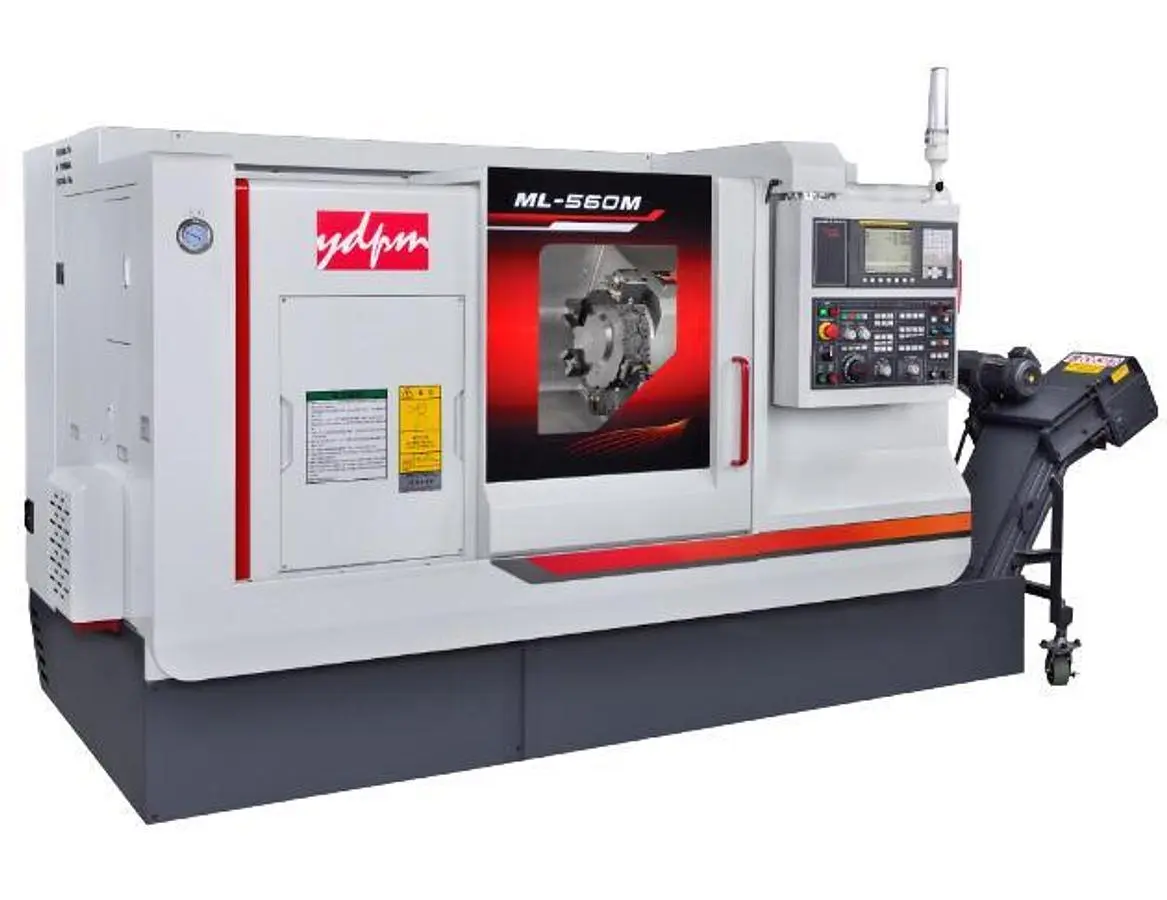

ITEM: UNIT ML-560S ML-560SY ML-560M ML-560MY
Standard: C axis Standard C axis
Swing over bed: mm Φ560 Φ700 Φ560 Φ700
Swing over saddle: mm Φ420 Φ560 Φ420 Φ560
Maximum machining diameter: mm Φ320 Φ300 Φ320 Φ320 Φ300 STD: 320; OPT: 350
Maximum machining length: mm 320 280 570 STD: 560; OPT: 500
Slant angle of bed: 30° 30° 30° 30°
X-axis: mm 190 (160+30) 190 (150+40) 190 (160+30) 190 (160+30) 190 (150+40) STD: 190 (160+30); OPT: 190 (175+15)
Y-axis: mm – ±50 – ±50
Z-axis: mm 360 350 610 STD: 600; OPT: 540
C-axis: ° – 360° (0.001°) 360° (0.001°) – 360° (0.001°) 360° (0.001°)
Spindle speeds: rpm STD: 50~4,500 (8″); OPT: 6,000 (10″) STD: 50~4,500 STD: 50~4,500 (8″); OPT: 6,000 (10″) STD: 50~4,500
Spindle nose: STD: A2-6; OPT: A2-5 A2-6 STD: A2-6; OPT: A2-5 A2-6
Spindle bore diameter: mm STD: Φ62; OPT: Φ79 (A2-6), Φ56 (A2-5) Φ62 STD: Φ62; OPT: Φ79 (A2-6), Φ56 (A2-5) Φ62
Front bearing inner diameter: mm Φ100 (A2-6); Φ80 (A2-5) Φ100 Φ100 (A2-6); Φ80 (A2-5) Φ100
Draw bar diameter: mm STD: Φ52; OPT: Φ66, Φ45 Φ52 STD: Φ52; OPT: Φ66, Φ45 Φ52
Chuck diameter: inch STD: 8″; OPT: 6″ STD: 8″ STD: 8″; OPT: 6″ STD: 8″
Type: Automatic Automatic Automatic Automatic

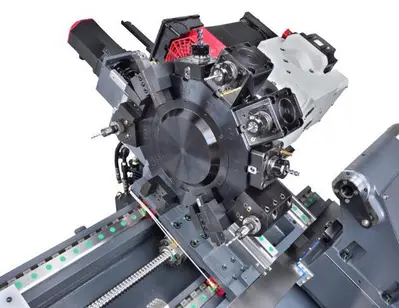

Stations: pcs STD: 10; OPT: 12 STD: 12 STD: 12 STD: 10; OPT: 8, 12 STD: 12 STD: 12
Square tool shank: mm STD: 25 x 25
OPT: 20 x 20 (12T) 20 x 20 20 x 20 STD: 25 x 25;
OPT: 20 x 20 (12T) 20 x 20 20 x 20
Boring bar shank diameter: mm Φ40, OPT: Φ32 (12T) Φ32 Φ40, OPT: Φ32 (12T) Φ32
Indexing time (0~180°): sec LS-160A: 2.0 (10T), 2.3(12T)
LS-160SV:0.85 (12T) 0.85 0.5 LS-160A: 2.0 (10T), 2.3(12T)
LS-160SV:0.85 (12T) 0.85 0.5
Spindle Speeds: rpm – 4,000 4,000 – 4,000 4,000
Rapid Traverse: m/min X: 30 ; Z: 30 X: 30 ; Y:24 ; Z: 30; C: 200rpm X: 30 ; Z: 30 X: 30 ; Y:24 ; Z: 30; C: 200rpm
Quill diameter: mm Φ65 Φ65 Φ65 Φ65
Quill bore taper: MT4 MT4 MT4 MT4
Quill travel: mm 100 100 100 100
Tailstock travel: mm 360 350 610 600
Main-spindle: kw STD: ß12 (11/15); OPT: α8 (7.5/11) STD: ß12 (11/15); OPT: α8 (7.5/11),
α12 (11/15kW) STD: ß12 (11/15); OPT: α8 (7.5/11) STD: ß12 (11/15); OPT: α8 (7.5/11),
α12 (11/15kW)
Live-tool: kw – α2/10000(2.2/3.7) STD: ß3/12000 (3.7/5.5);
OPT: α2/10000 (2/3.7) – α2/10000(2.2/3.7) STD: ß3/12000 (3.7/5.5);
OPT: α2/10000 (2/3.7)
Hydraulic oil pump: kw 0.75 0.75 0.75 0.75
Chip conveyor: kw 0.2 0.2 0.2 0.2
Coolant pump: kw 0.8 0.8 0.8 0.8
Positioning: mm ±0.003 ±0.003 ±0.004 ±0.004
Repeatability: mm ±0.002 ±0.002 ±0.003 ±0.003
Requirements: KVA 380-415 / 220V 15KVA 380-415/220V 26KVA 380-415 / 220V 15KVA 380-415/220V 26KVA
Height: cm 181 199 181 199
Floor space (WxD): cm 354 x 191 338 x 191 385 x 191 369 x 191
Packing (w/conveyor): cm 387 x 228 x 218 387 x 228 x 218 404 x 228 x 218 404 x 228 x 218
Net weight (w/conveyor): kg 3,380 3,860 3,720 4,200
Gross weight (w/conveyor): kg 3,670 4,150 4,070 4,550
