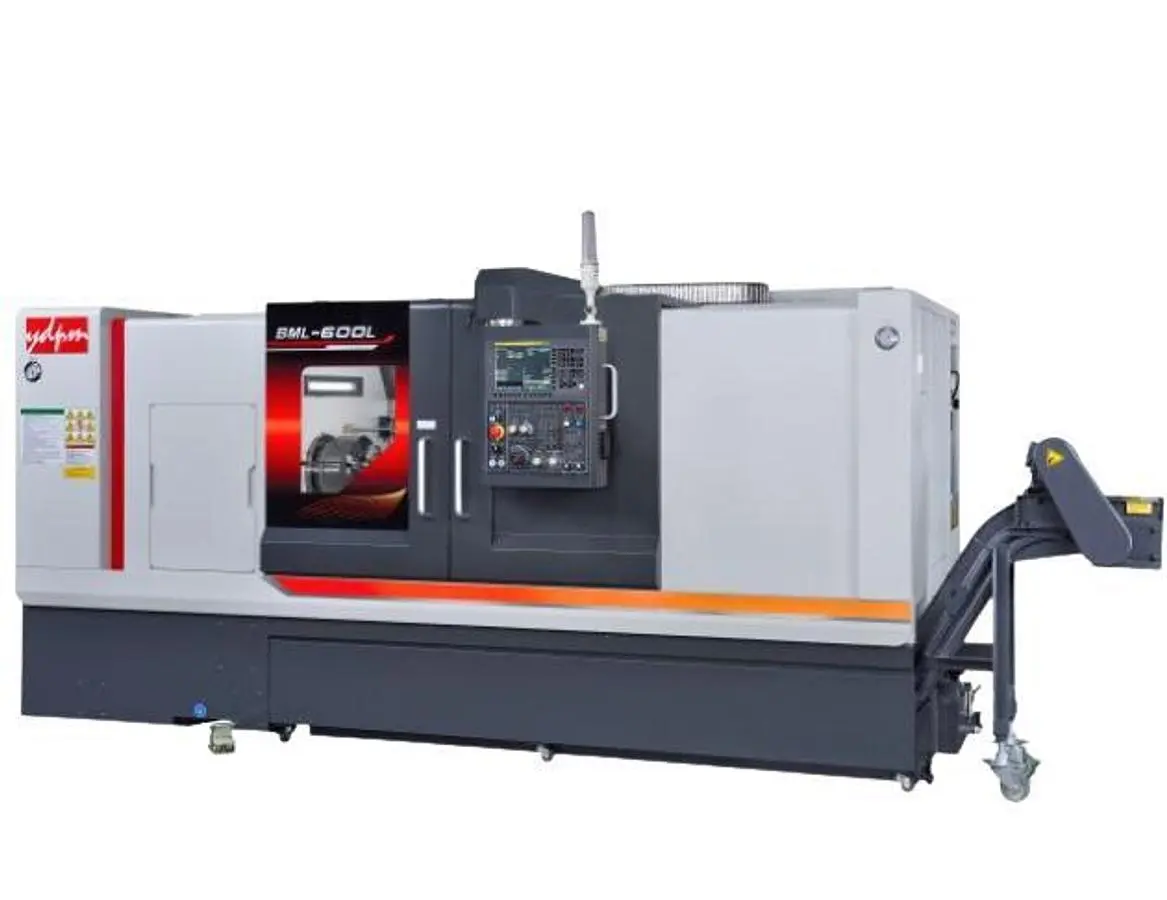

NEW INGENIOUS MACHINERY STD: LS-240 OPT: LS-240SV LS-200SP LS-200DTR STD: LS-240 OPT: LS-240SV LS-200DTR LS-200DTR
Overview
Specifications
ITEM: UNIT ML-600S ML-600Y ML-600T ML-600TY
Standard: C axis Standard C axis
Swing over bed: mm Φ600 Φ600 Φ600 Φ600
Swing over saddle: mm Φ450 Φ450 Φ450 Φ450
Maximum machining diameter: mm Φ420 Φ340 BMT65: 380; VDI40: 285 Φ420 Φ340 BMT65: 380; VDI40: 285
Maximum machining length: mm STD: 560 (8″); OPT: 540 (10″) BMT65 STD: 480 (8″); OPT: 470 (10″)
VDI40 STD: 520 (8″); OPT: 510 (10″) STD: 475 (8″);
OPT: 465 (10″) BMT65 STD: 450 (8″); OPT: 440 (10″)
VDI40 STD: 475 (8″); OPT: 465 (10″) BMT65 STD: 450 (8″); OPT: 440 (10″)
VDI40 STD: 475 (8″); OPT: 465 (10″)
Slant angle of bed: 30° 60° 30° 60°
X-axis: mm 230 (210+20) 225 (170+55) BMT65: 206 (190+16); VDI40: 206 (142.5+63.5) 230 (210+20) 218 (170+48) BMT65: 206 (190+16);VDI 40: 206 (142.5+63.5)
Y-axis: mm – ±50 – ±50
Z-axis: mm 600 (8″); 590 (10″) BMT65: 525; VDI40: 565 600 BMT65: 450; VDI40: 495
C-axis: ° – 360° (0.001°) 360° (0.001°) – 360° (0.001°) 360° (0.001°)
W-axis: mm – – 450 450
Spindle speeds: rpm STD: 50~4,500 (8″);
OPT: 50~3,500 (10″) STD: 50~4,500 (8″);
OPT: 50~3,500 (10″) Main spindle
STD: 50~4,500 (8″); OPT: 50~3,500 (10″) Sub-spindle
50~6,000 (6″)
Spindle nose: STD: A2-6; OPT: A2-8 STD: A2-6; OPT: A2-8, Built-in Spindle A2-6 STD: A2-6; OPT: A2-8, Built-in Spindle A2-6 STD: A2-5
Spindle bore diameter: mm STD: Φ62 (A2-6); OPT: Φ86 (A2-8) STD: Φ62 (A2-6); OPT: Φ86 (A2-8) STD: Φ62 (A2-6); OPT: Φ86 (A2-8) Φ56
Front bearing inner diameter: mm STD: Φ100 (A2-6); OPT: Φ120 (A2-8) STD: Φ100 (A2-6); OPT: Φ120 (A2-8) STD: Φ100 (A2-6); OPT: Φ120 (A2-8) Φ80
Draw bar diameter: mm STD: Φ52; OPT: Φ75 STD: Φ52; OPT: Φ75 STD: Φ52; OPT: Φ75 Φ45
Chuck diameter: inch STD: 8″; OPT: 10″ STD: 8″; OPT: 10″ STD: 8″+6″ (W); OPT: 10″+6″ (W) STD: 8″+6″ (W); OPT: 10″+6″ (W)
Type: Automatic Automatic – –
Stations: pcs STD: 10; OPT: 12 STD: 12 STD: 12 STD: 10; OPT: 12 STD: 12 STD: 12
Square tool shank: mm 25 x 25 25 x 25 25 x 25 25 x 25
Boring bar shank diameter: mm Φ40 Φ40 Φ40 Φ40
Indexing time (0~180°): sec LS-240: 1.4 (10T),
1.5 (12T); LS-240SV: 0.7(12T) 1.2 1.4 LS-240: 1.4 (10T),
1.5 (12T); LS-240SV: 0.7(12T) 1.4 1.4
Spindle Speeds: rpm – 50~4,000 50~4,000 – 50~4,000 50~4,000
Rapid Traverse: m/min X: 30, Z:30 X: 30, Z: 30, Y: 24, C: 200rpm X: 30, Z:30, W:24, C: 200rpm X: 30, Z: 30, Y: 24, W: 24, C: 200rpm
Quill diameter: mm Φ85 Φ85 – –
Quill bore taper: MT5 MT5 – –
Quill travel: mm 120 120 – –
Tailstock travel: mm 500 450 – –
Main-spindle: kw STD: α30ip (15/18.5); OPT: α22ip (11/15) STD: α30ip (15/18.5); OPT: α22ip (11/15) STD: α30ip (15/18.5); OPT: α22ip (11/15) STD: α30ip (15/18.5); OPT: α22ip (11/15)
Sub-spindle: kw – – α6 (5.5/7.5) α6 (5.5/7.5)
Live-tool: kw – α3/10000 (3.7/5.5) α3/10000 (3.7/5.5) – α3/10000 (3.7/5.5) α3/10000 (3.7/5.5)
Axis servo motor: kw X/Z – α12 (3.0) X/Y/Z – α12 (3.0) X/Z/W – α12 (3.0) X/Y/Z/W – α12 (3.0)
Hydraulic oil pump: kw 1.5 1.5 1.5 1.5
Chip conveyor: kw 0.2 0.2 0.2 0.2
Coolant pump: kw 0.8 0.8 0.8 0.8
Positioning: mm ±0.004 ±0.004; Y: ±0.003 ±0.005 X/Z: ±0.005; Y: ±0.003
Repeatability: mm ±0.003 ±0.003; Y: ±0.003 ±0.004 X/Z: ±0.004; Y: ±0.003
Requirements: KVA 380-415/220V 26 KVA 380-415/220V 30KVA 380-415/220V 30KVA 380-415/220V 30KVA
Height: cm 185 228 186 228
Floor space (WxD): cm 401 x 214 441 x 233 441 x 214 441 x 233
Packing (w/conveyor): cm 389 x 212 x 212 402 x 229 x 255 402 x 229 x 212 402 x 229 x 253
Net weight (w/conveyor): kg 5,430 6,100 5,990 6,200
Gross weight (w/conveyor): kg 5,730 6,370 6,328 6,700
