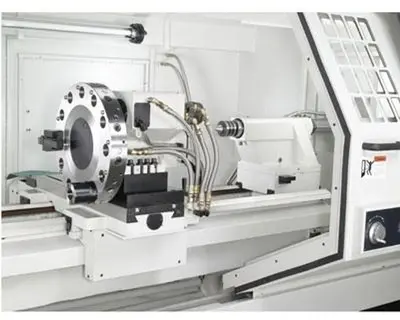

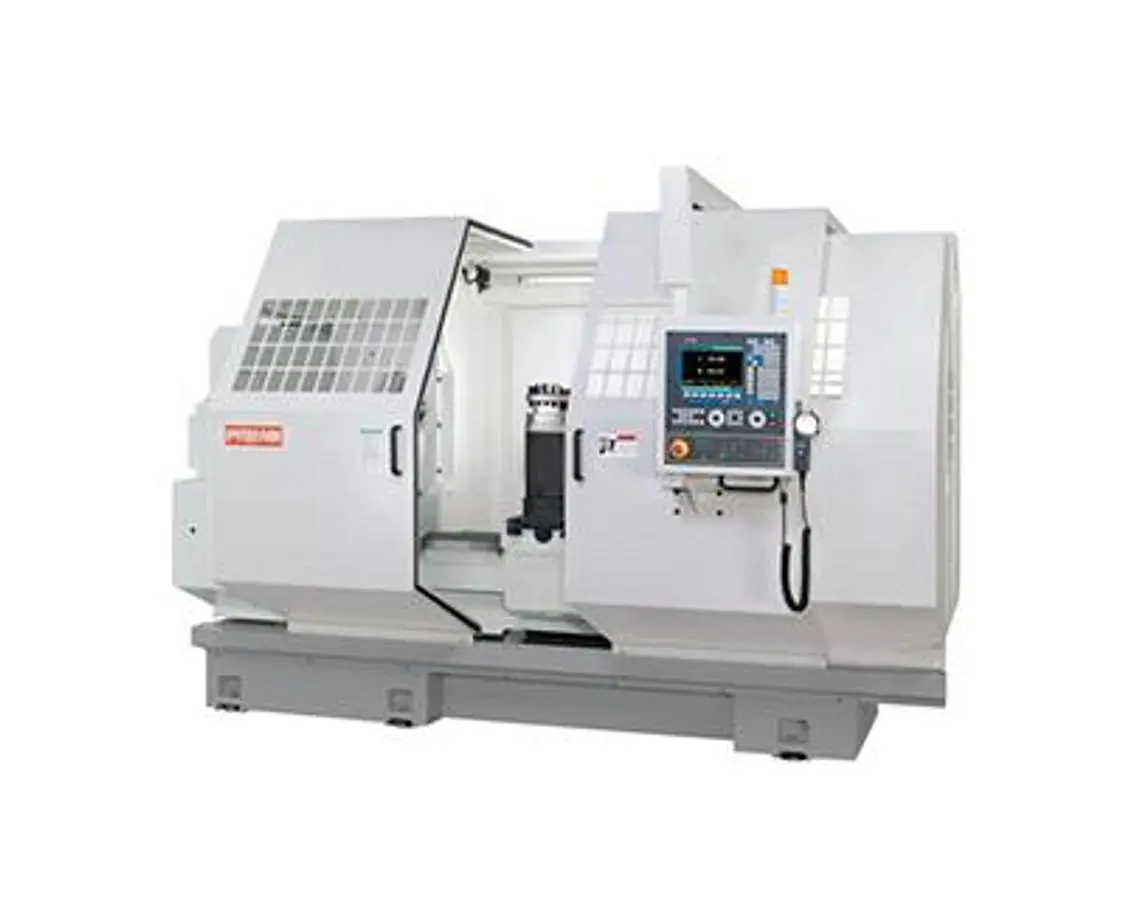

NEW TOP PHOENIX FL-10010CNC FL-10020CNC FL-10030CNC FL-10040CNC FL-10050CNC
Overview
The manufacturer reserves the right to modify the design, specifications, mechanisms…etc. to improve the
performance of the machine without prior notice. All the specifications shown above are just for reference.
Specs
Swing over bed: 1000mm (39-3/8")
Center height: 500mm (19-11/16")
Swing over cross slide: 710mm (27-15/16")
Distance between centers: 1100mm (43-5/16") 2100mm (82-5/8") 3100mm (122") 3900mm (153-1/2") 4900mm (192- 7/8")
Width of bed: 550mm (21-5/8")
Max. cutting diameter over bed: 1000mm (39-3/8")
Max. cutting diameter over cross slide: 710mm (27-15/16")
Spindle speeds: 5~800 r.p.m. (Ø155mm bore) 4 ranges, infinitely variable
Spindle nose: A2-11 (Ø155mm bore) or A2-15 (Ø250mm bore)/ A2-20 (Ø305/380mm bore) (opt.)
Spindle nose taper: 1/19.231 (same taper as MT No.7) (Ø155mm bore)
Spindle bore: Ø155mm (6-1/8") or Ø250mm(9-13/16") / Ø305mm(12") / Ø380mm(15") (opt.)
Longitudinal travel (Z axis): 1000mm (39-3/8") 2000mm (78-3/4") 3000mm (118-1/8") 3800mm (149-9/16") 4800mm (188-15/16")
Cross slide travel (X axis): 550mm (21-5/8")
Quill diameter: 125mm (4-15/16")
Quill travel: 275mm (10-13/16")
Quill taper: MT No.6
Spindle motor: AC 30HP or AC 40HP (opt.)
Coolant pump motor: 1/4 HP
Cutting feed rate: X/Z axis：3 m/min. (max.)
Rapid traverse: X/Z axis：7.5 m/min. (max.)
Machine weight (approx.): 5300kgs 6100kgs 6900kgs 7800kgs 9500kgs
