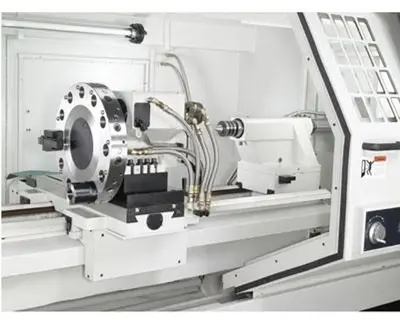

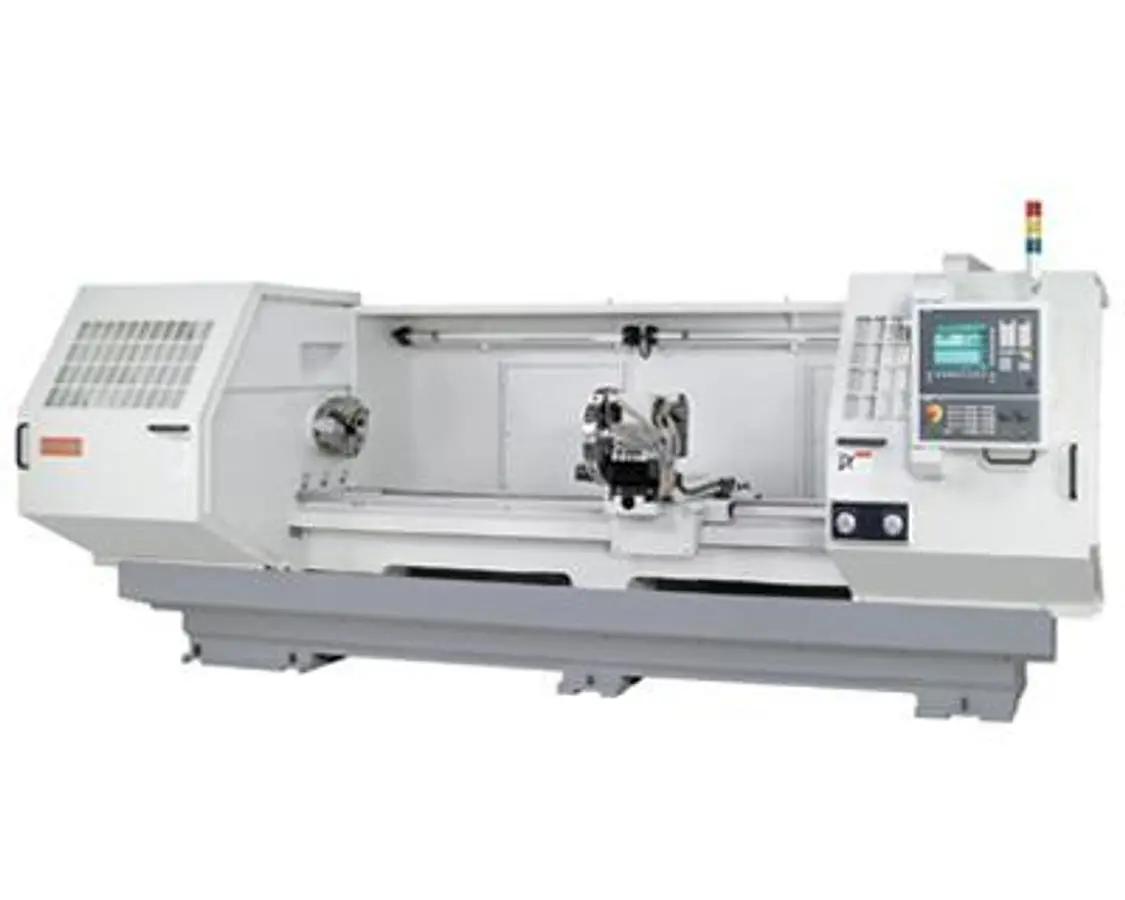

NEW TOP PHOENIX FL-7110CNC FL-7115CNC FL-7120CNC FL-7130CNC

NEW TOP PHOENIX FL-7110CNC FL-7115CNC FL-7120CNC FL-7130CNC

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
CNC Lathes
Manufacturer:
TOP PHOENIX
Model:
FL-7110CNC FL-7115CNC FL-7120CNC FL-7130CNC
Stock #:
8155798
Description

The manufacturer reserves the right to modify the design, specifications, mechanisms…etc. to improve the
performance of the machine without prior notice. All the specifications shown above are just for reference.

Specifications

Swing over bed: 710mm (28")
Center height: 355mm (14")
Swing over cross slide: 480mm (18-4/8")
Distance between centers: 900mm (35-7/16") 1400mm (55-1/8") 1900mm (74-13/16") 2900mm (114-1/8")
Width of bed: 450mm (17-11/16")
Max. cutting diameter over bed: 710mm (28")
Max. cutting diameter over cross slide: 480mm (18-7/8")
Spindle speeds: 30~2000 r.p.m. (Ø85mm bore) 3 ranges, infinitely variable
Spindle nose: A1-8 or D1-8 (Ø85mm bore) or A2-11 (Ø105mm/Ø155mm bore), (opt.)
Spindle nose taper: 1/19.231 (same taper as MT No.7)
Spindle bore: Ø85mm (3-3/8") or Ø105mm (4-1/8")(opt.)
Longitudinal travel (Z axis): 900mm (35-7/16") 1400mm (55-1/8") 1900mm (74-13/16") 2900mm (114-1/8")
Cross slide travel (X axis): 390 (14")
Quill diameter: 105mm (4-1/8")
Quill travel: 225mm (9")
Quill taper: MT No.5
Spindle motor: AC 15HP or AC 20HP (opt.)
X/Z axis motor: X axis：AC servo 1KW, 2000 r.p.m. Z axis：AC servo 2KW, 2000 r.p.m.
Coolant pump motor: 1/6 HP
Cutting feed rate: X/Z axis：3m/min. (max.)
Rapid traverse: X/Z axis：7.5m/min. (max.)
Machine weight (approx.): 3800kgs 4300kgs 4800kgs 5800kgs
