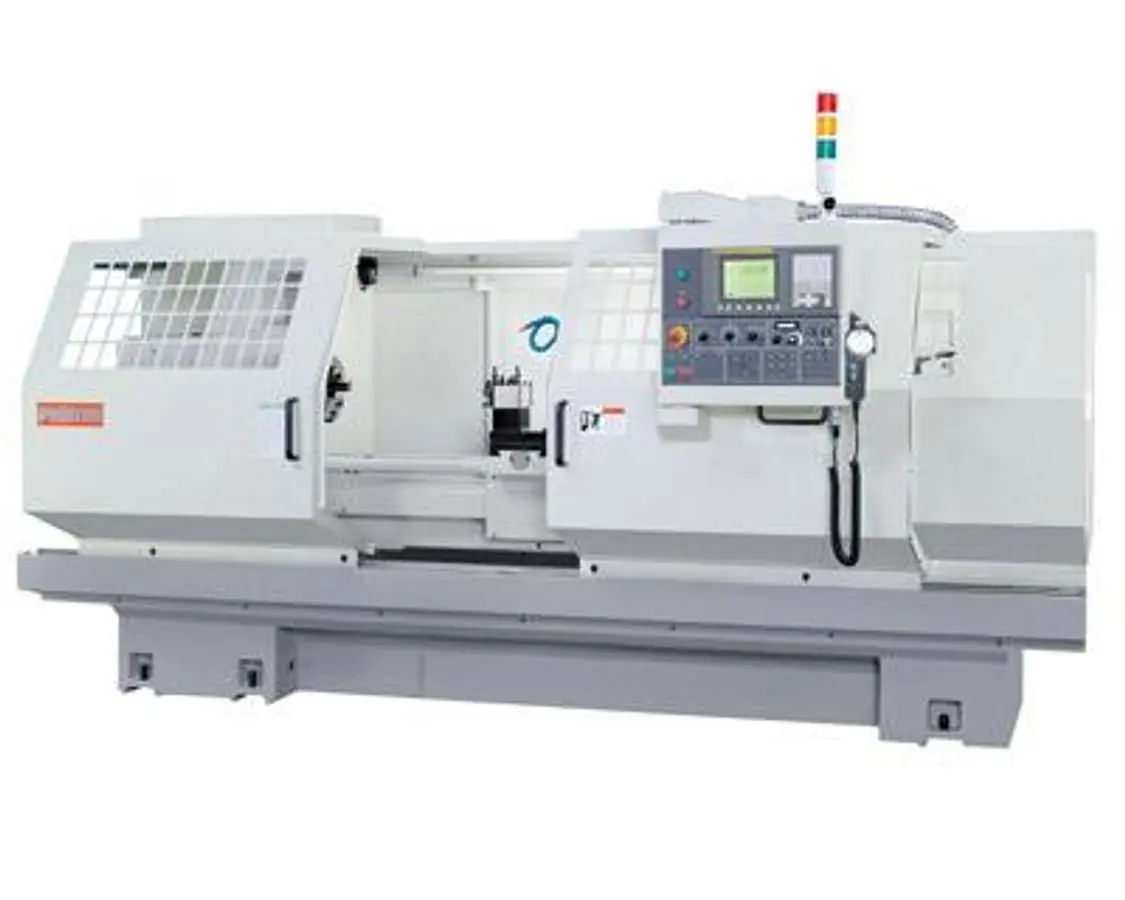

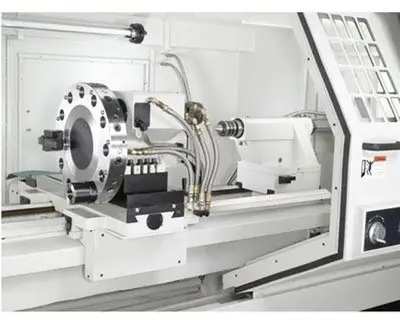

NEW TOP PHOENIX FL-5110 / 5115 / 5120 / 5130 CNC FL-5610 / 5615 / 5620 / 5630 CNC

The manufacturer reserves the right to modify the design, specifications, mechanisms…etc. to improve the
performance of the machine without prior notice. All the specifications shown above are just for reference

Swing over bed: 510mm (20") 560mm(22")
Center height: 255mm (10") 280mm(11")
Swing over cross slide: 290mm (11-3/8") 340mm(13-3/8")
Distance between centers: 840mm(33")(FL-5110/5610CNC) 1340mm(52-3/4")(FL-5115/5615CNC) 1890mm(74-7/16")(FL-5120/5620CNC) 2890mm(74-7/16")(FL-5130/5630CNC)
Width of bed: 350mm (13-3/4")
Max. cutting diameter over bed: 510mm(20") 560mm(22")
Max. cutting diameter over cross slide: 290mm(11-3/8") 340mm(13-3/8")
Spindle speeds: 30~2000 r.p.m. 3 ranges, infinitely variable
Spindle nose: A1-8 or D1-8
Spindle nose taper: 1/19.231 (same taper as MT NO.7)
Spindle bore: Ø85mm (3-3/8")
Longitudinal travel (Z axis): 800mm(31-1/2")(FL-5110/5610CNC) 1300mm(51-3/16")(FL-5115/5615CNC) 1800mm(70-7/8")(FL-5120/5620CNC) 2800mm(110-1/4")(FL-5130/5630CNC) (*about 70mm shorter w/ VDI 30 turret)
Cross slide travel (X axis): 290mm (11-3/ 8") 315mm (12-3/ 8")
Quill diameter: 75mm (3")
Quill travel: 160mm (6-5/16")
Quill taper: MT No.5
Spindle motor: AC 10HP or AC 15HP (opt.)
X/Z axis motor: X/Z axis : AC servo 1KW, 2000 r.p.m.
Coolant pump motor: 1/6HP
Cutting feed rate: X/Z axis : 3 m/min (max.)
Rapid traverse: X/Z axis : 7.5m/min (max.)
Machine weight(approx.): 3000 / 3300 / 3600 / 3900 kgs 3300 / 3600 / 3900 / 4200 kgs
