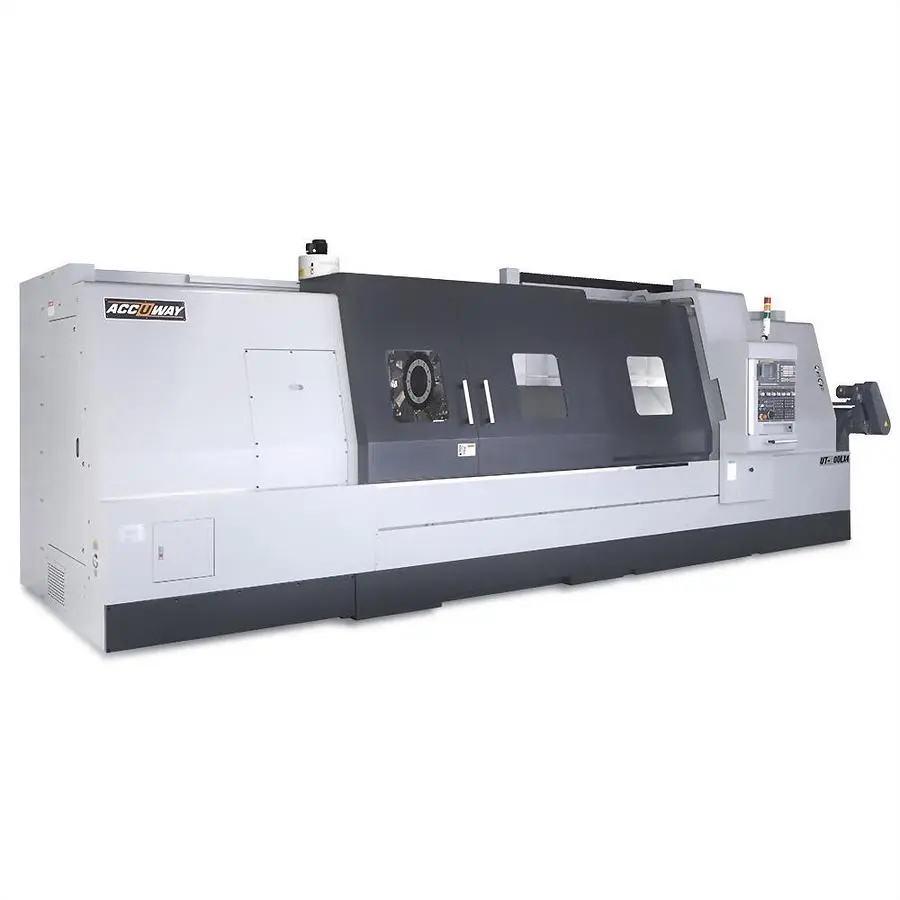

NEW ACCUWAY UT-600LX4

Super Heavy Duty Turning Center

STANDARD ACCESSORIES
FANUC 0i-T controller
RJ-45 interface
Rigid tapping
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Lubrication system
4-bar coolant system
Three-color warning light
Gear box

OPTIONAL ACCESSORIES
Upgrade to 15" Colored LCD monitor
Tool setter
Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet
A2-15 spindle headstock and 235 mm spindle through hole
A2-15 spindle headstock and 258 mm spindle through hole
APT 60 power turret + CS contouring control
APT 60 power turret + CF Axis Control
Steady rest
Transformer
CE version
Linear scale
Auto door

Controller: FANUC 0i-T
Swing over bed: mm 1030
Swing over saddle: mm 950
Max. turning diameter: mm 900
Max. turning length: mm 3950
Guide way type: Box
Spindle nose taper: ASA A2-15 A2-20
Chuck diameter: inch 20 20 24 32 32
Spindle hole diameter: mm 205 235 258 320 375
Spindle speed: rpm 1500 850 800 400 300
Spindle motor power(Cont. / 30min): kW 30/37 (37/45)+2-step
gearbox
X-axis Travel: mm 470
Z-axis Travel: mm 4100
X-axis Rapid Traverse Rate: m/min 20
Z-axis Rapid Traverse Rate: m/min 6
Tooling system: BOT
Turret driven type: Servo mechanical
Number of tools: station 12
Square tool shank size: mm 32
Round tool shank size: mm 50
Tailstock body travel: mm 3950
Quill travel: mm 150
Quill diameter: mm 160
Quill taper: MT 6
Machine dimension L x W x H: m 9 x 2.9 x 3
Net weight: kg 25400
