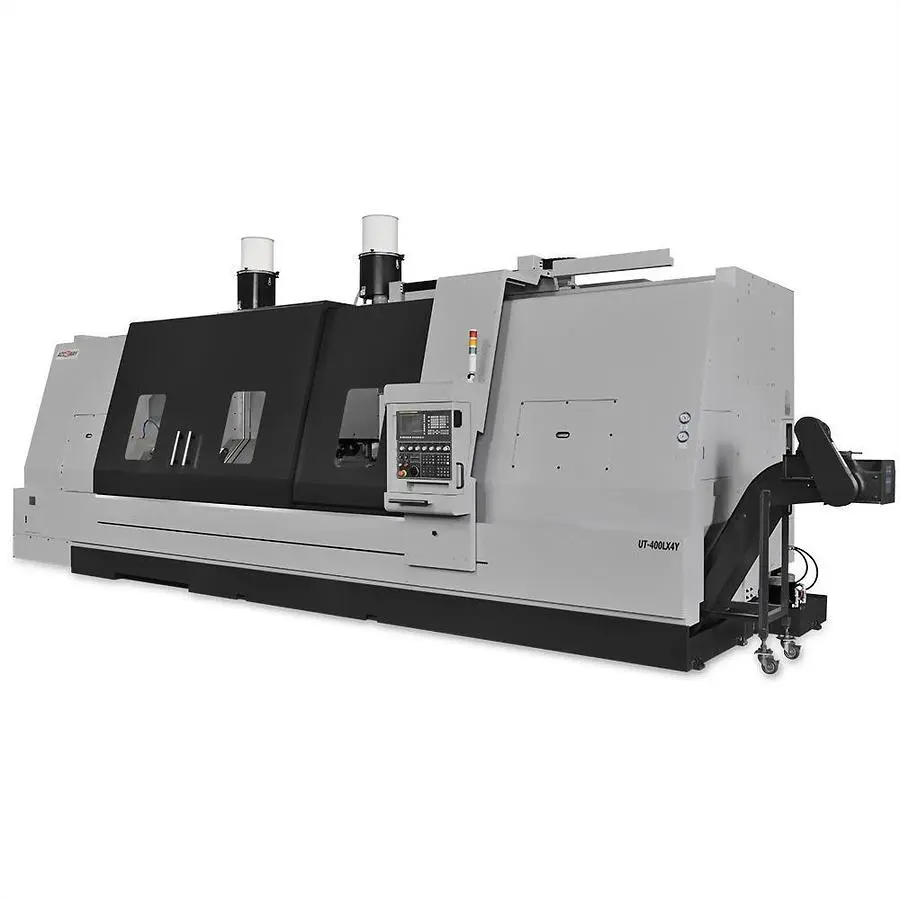

NEW ACCUWAY UT-400LX4Y

Slant Bed Turning Center

STANDARD ACCESSORIES
FANUC 0i-T controller
RJ-45 interface
Rigid tapping
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Lubrication system
4-bar coolant system
Three-color warning light

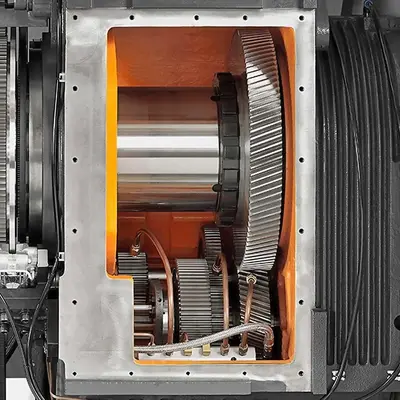

Gear box

OPTIONAL ACCESSORIES
Upgrade to 15" Colored LCD monitor
Tool setter
Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet
A2-15 spindle headstock and 205 mm spindle through hole
A2-15 spindle headstock and 235 mm spindle through hole
A2-15 spindle headstock and 258 mm spindle through hole

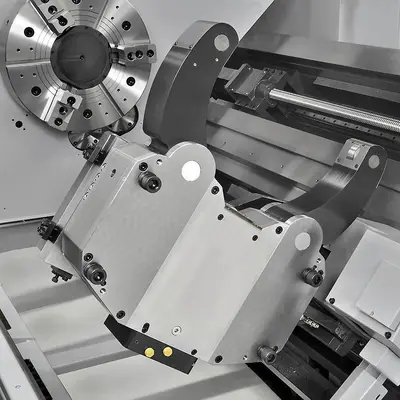

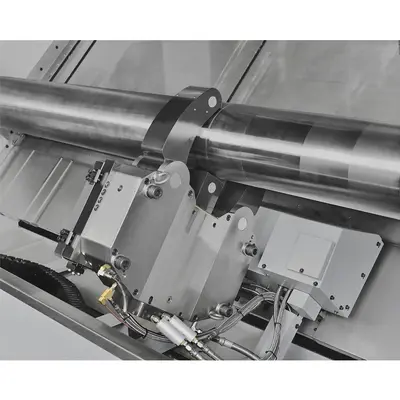

Steady rest
Transformer
CE version
0 degree rotary tool holder
90 degree rotary tool holder
Linear scale
Auto door

Controller: FANUC 0i-T
Swing over bed: mm 1200
Swing over saddle: mm 1040
Max. turning diameter: mm 700
Max. turning length: mm 3900
Guide way type: Box
Spindle nose taper: ASA A2-11 A2-15
Chuck diameter: inch 15 20 20 24
Spindle hole diameter: mm 131 205 235 258
Spindle speed: rpm 2000 1500 850 800
Spindle motor power(Cont. / 30min): kW 30/37(37/45)+2-step
gearbox
X-axis Travel: mm 380
Z-axis Travel: mm 4100
Y-axis Travel: mm ±75
X-axis Rapid Traverse Rate: m/min 20
Z-axis Rapid Traverse Rate: m/min 6
Y-axis Rapid Traverse Rate: m/min 10

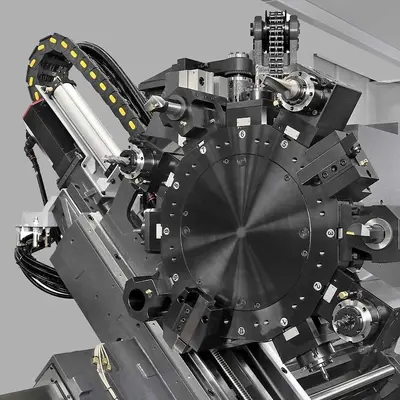

Tooling system: BMT-85
Turret driven type: Servo mechanical
Number of tools: station 12
Square tool shank size: mm 32
Round tool shank size: mm 50
Max. Rotary Tool Speed: rpm 4000
Rotary Tool power: kW 7.5/11

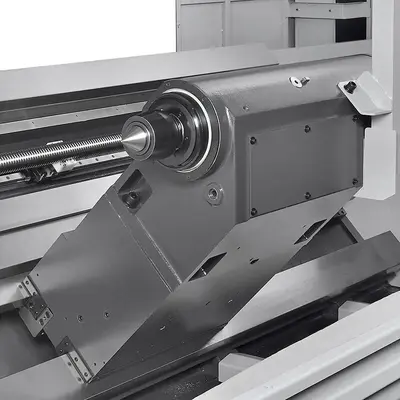

Tailstock body travel: mm 3950
Quill travel: mm 150
Quill diameter: mm 160
Quill taper: MT 6
Machine dimension L x W x H: m 9.4 x 3.2 x 3.1
Net weight: kg 23000
