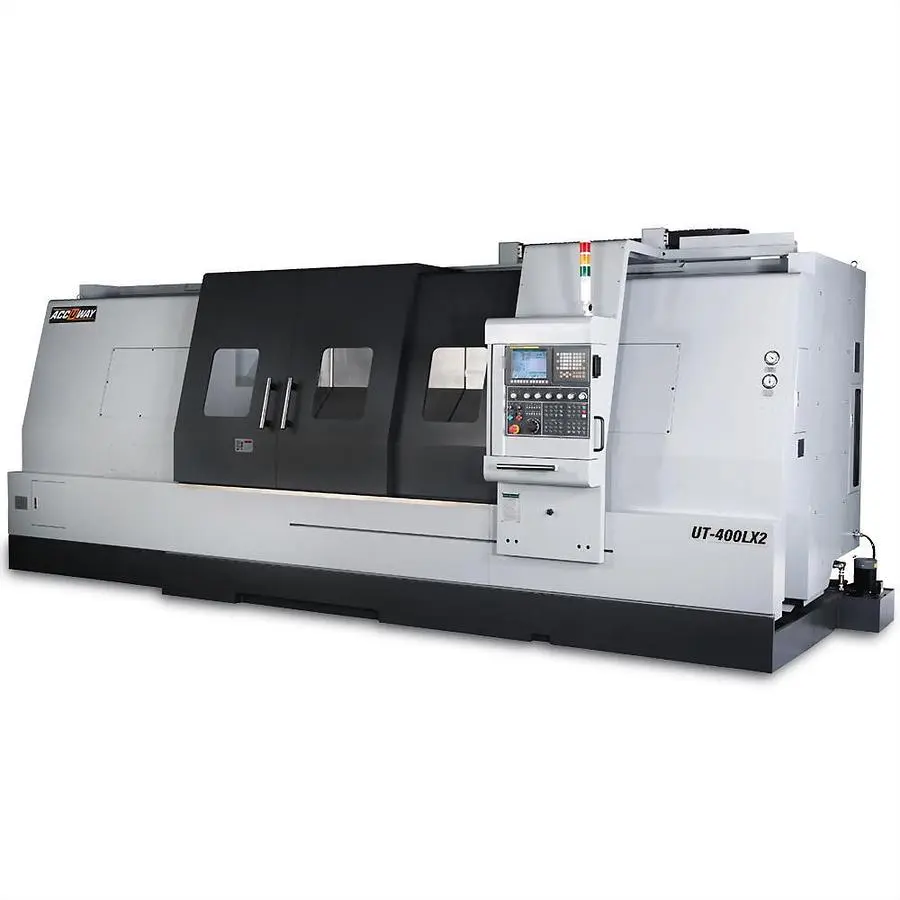

NEW ACCUWAY UT-400LX2

Super Heavy Duty Turning Center

STANDARD ACCESSORIES
FANUC 0i-T controller
RJ-45 interface
Rigid tapping
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Lubrication system
4-bar coolant system
Three-color warning light
Gear box

OPTIONAL ACCESSORIES
Upgrade to 15" Colored LCD monitor
Tool setter
Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet
A2-15 spindle headstock and 205 mm spindle through hole
A2-15 spindle headstock and 235 mm spindle through hole
A2-15 spindle headstock and 258 mm spindle through hole
APT 60 power turret + CS contouring control
APT 60 power turret + CF Axis Control
Steady rest
Transformer
CE version
Auto door
Linear scale

Controller: FANUC 0i-T
Swing over bed: mm 900
Swing over saddle: mm 745
Max. turning diameter: mm 700
Max. turning length: mm 2080
Guide way type: Box
Spindle nose taper: ASA A2-11 A2-15
Chuck diameter: inch 15 20 20 24
Spindle hole diameter: mm 131 205 235 258
Spindle speed: rpm 2000 1500 850 800
Spindle motor power(Cont. / 30min): kW 30/37 (37/45)+2-step
gearbox
X-axis Travel: mm 380
Z-axis Travel: mm 2200
X-axis Rapid Traverse Rate: m/min 20
Z-axis Rapid Traverse Rate: m/min 15
Tooling system: BOT
Turret driven type: Servo mechanical
Number of tools: station 12
Square tool shank size: mm 32
Round tool shank size: mm 50
Tailstock body travel: mm 2050
Quill travel: mm 150
Quill diameter: mm 160
Quill taper: MT 6
Machine dimension L x W x H: m 6.9 x 2.8 x 2.7
Net weight: kg 17500
