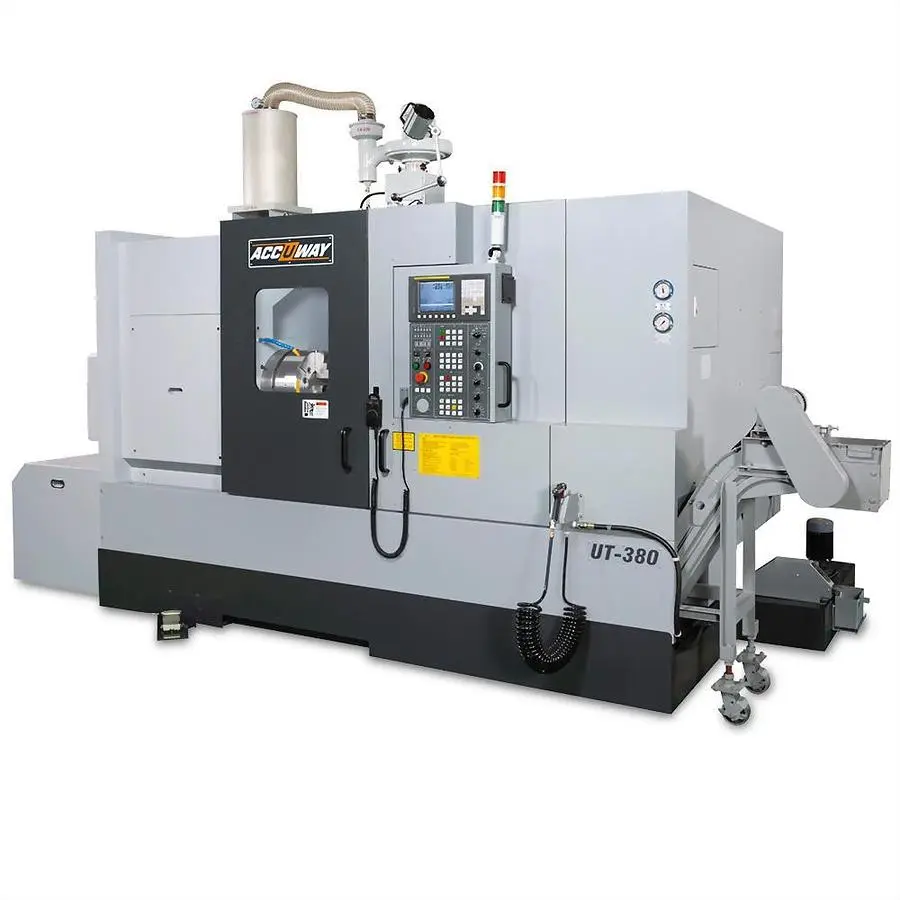

NEW ACCUWAY UT-380

High Performance Turning Center

STANDARD ACCESSORIES
FANUC 0i-T controller
RJ-45 interface
Rigid tapping
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Lubrication system
4-bar coolant system
Three-color warning light
Gear box

OPTIONAL ACCESSORIES
Upgrade to 15" Colored LCD monitor
Tool setter
Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet
A2-11 spindle headstock and 105 mm bar capacity
A2-11 spindle headstock and 116 mm bar capacity
A2-15 spindle headstock and 166 mm bar capacity
12-station servo turret
APT 50 power turret + CS contouring control
APT 50 power turret + CF Axis Control
Steady rest
Transformer
CE version
Linear scale
Auto door

Controller: FANUC 0i-T
Swing over bed: mm 850
Swing over saddle: mm 700
Max. turning diameter: mm 680
Max. turning length: mm 630 550 490
Guide way type: Box
Spindle nose taper: ASA A2-8 A2-11 A2-15
Chuck diameter: inch 12 15 18
Bar capacity: mm 90 105 116.5 166.5
Spindle speed: rpm 2700 2500 2000 1800
Spindle motor power(Cont. / 30min): kW 18.5/22 (30/37) + 2-step gearbox
X-axis Travel: mm 370
Z-axis Travel: mm 750
X-axis Rapid Traverse Rate: m/min 20
Z-axis Rapid Traverse Rate: m/min 20
Tooling system: BOT
Turret driven type: Hydraulic/Servo
Number of tools: station 12
Square tool shank size: mm 32
Round tool shank size: mm 50
Tailstock body travel: mm 540
Quill travel: mm 120
Quill diameter: mm 120
Quill taper: MT 6
Machine dimension L x W x H: m 3.6 x 2.3 x 2.2
Net weight: kg 6500
