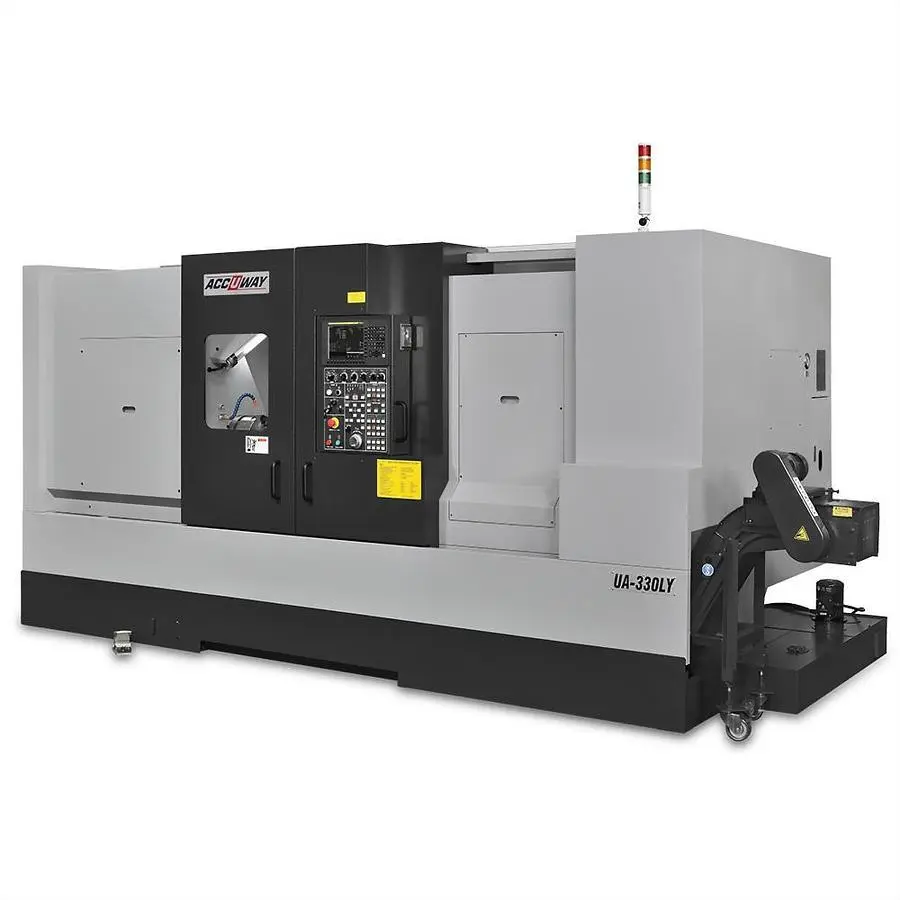

NEW ACCUWAY UA-330LY

Slant Bed Turning Center

STANDARD ACCESSORIES
FANUC 0i-T controller
RJ-45 interface
Rigid tapping
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Lubrication system
4-bar coolant system
Three-color warning light

OPTIONAL ACCESSORIES
Upgrade to 15" Colored LCD monitor
Collect chuck
Tool setter
Parts catcher and parts conveyor
Bar feeder interface (7 or 24 pins)
Bar feeder
Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet
Gear box
Transformer
CE version
Linear scale
0 degree rotary tool holder
90 degree rotary tool holder

Controller: FANUC 0i-T
Swing over bed: mm 800
Swing over saddle: mm 600
Max. turning diameter: mm 350
Max. turning length: mm 1140
Guide way type: Box Way
Spindle nose taper: ASA A2-8
Chuck diameter: inch 12 10
Bar capacity: mm 75
Spindle speed: rpm 2500 3500
Spindle motor power(Cont. / 30min): kW 15/18.5
X-axis Travel: mm 290
Z-axis Travel: mm 1250
Y-axis Travel: mm ±50
X-axis Rapid Traverse Rate: m/min 20
Z-axis Rapid Traverse Rate: m/min 24
Y-axis Rapid Traverse Rate: m/min 10
Tailstock body travel: mm 1040
Quill travel: mm 120
Quill diameter: mm 110
Quill taper: MT 5

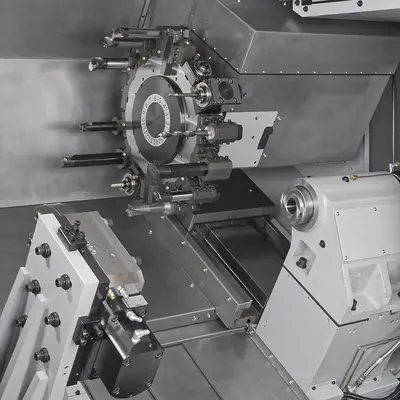

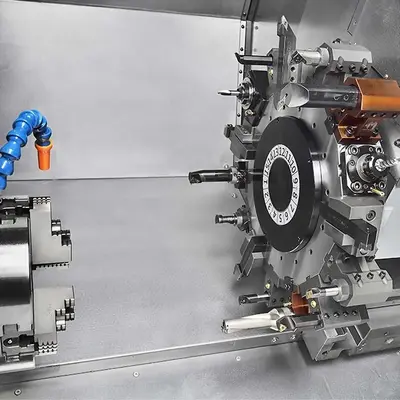

Tooling system: BMT-55N
Turret driven type: Servo mechanical
Number of tools: station 15
Square tool shank size: mm 25
Round tool shank size: mm 40
Max. Rotary Tool Speed: rpm 6000
Rotary Tool power: kW 3.7/5.5
Machine dimension L x W x H: m 4.9x 2.4 x 2.2
Net weight: kg 7500
