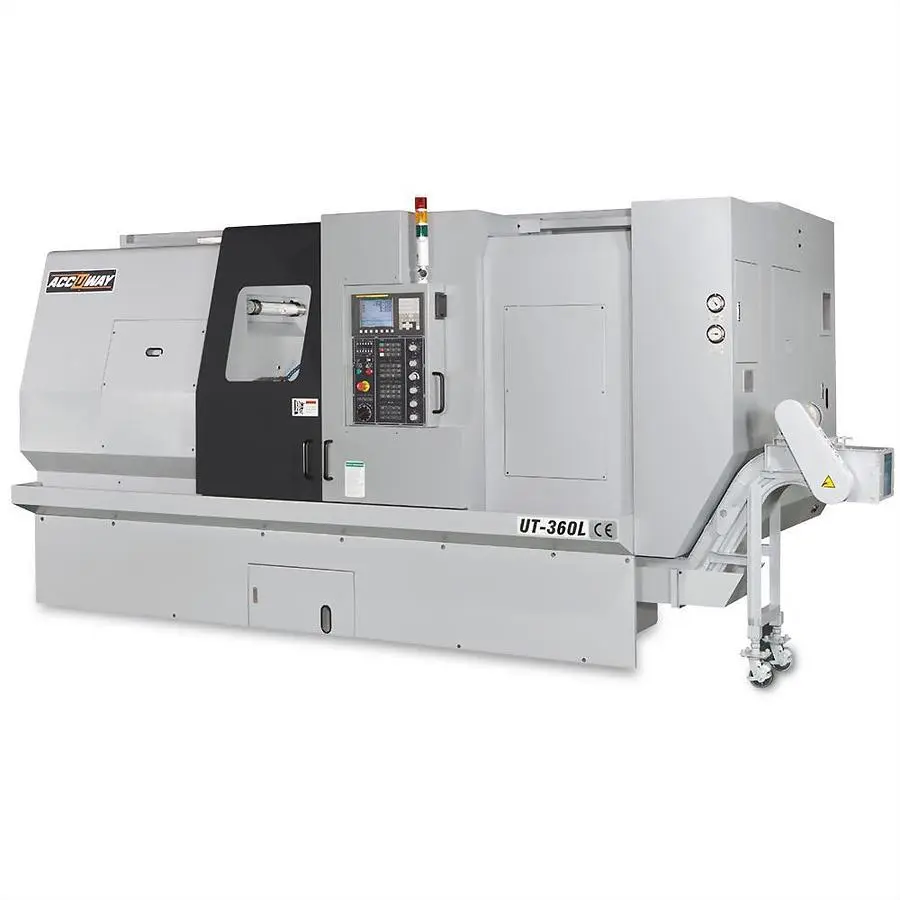

NEW ACCUWAY UT-360L UT-360LM

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
CNC Lathes
Manufacturer:
ACCUWAY
Model:
UT-360L UT-360LM
Stock #:
8142272
Description

High Performance Turning Center

STANDARD ACCESSORIES
FANUC 0i-T controller
RJ-45 interface
Rigid tapping
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Lubrication system
4-bar coolant system
Three-color warning light

OPTIONAL ACCESSORIES
Upgrade to 15" Colored LCD monitor
Tool setter
Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet
A2-11 spindle headstock and 105 mm bar capacity
A2-11 spindle headstock and 116 mm bar capacity
A2-15 spindle headstock and 166 mm bar capacity
12-station servo turret(UT-360L)
APT 50 power turret + CS contouring control(UT-360L)
APT 50 power turret + CF Axis Control(UT-360L)
Steady rest
Gear box
Transformer
CE version
Linear scale
Auto door
0 degree rotary tool holder(UT-360LM)
90 degree rotary tool holder(UT-360LM)

Specifications

Controller: FANUC 0i-T
Swing over bed: mm 750 750
Swing over saddle: mm 600 600
Max. turning diameter: mm 540 540
Max. turning length: mm 1130 1050 1040 960
Guide way type: Box
Spindle nose taper: ASA A2-8 A2-11 A2-8 A2-11
Chuck diameter: inch 12 15 12 15
Bar capacity: mm 90 105 116.5 90 105 116.5
Spindle speed: rpm 2700 2500 2000 2700 2500 2000
Spindle motor power(Cont. / 30min): kW 18.5/22 (30/37) 18.5/22 (30/37)
X-axis Travel: mm 305 305
Z-axis Travel: mm 1250 1250
X-axis Rapid Traverse Rate: m/min 20 20
Z-axis Rapid Traverse Rate: m/min 20 20
Tooling system: BOT BMT-75
Turret driven type: Hydraulic/Servo Servo mechanical
Number of tools: station 12 12
Square tool shank size: mm 32 32
Round tool shank size: mm 50 50
Tailstock body travel: mm 1040 1040
Quill travel: mm 120 120
Quill diameter: mm 120 120
Quill taper: MT 6 6
Machine dimension L x W x H: m 4.5 x 2.3 x 2.2 4.5 x 2.3 x 2.2
Net weight: kg 7000 7000
