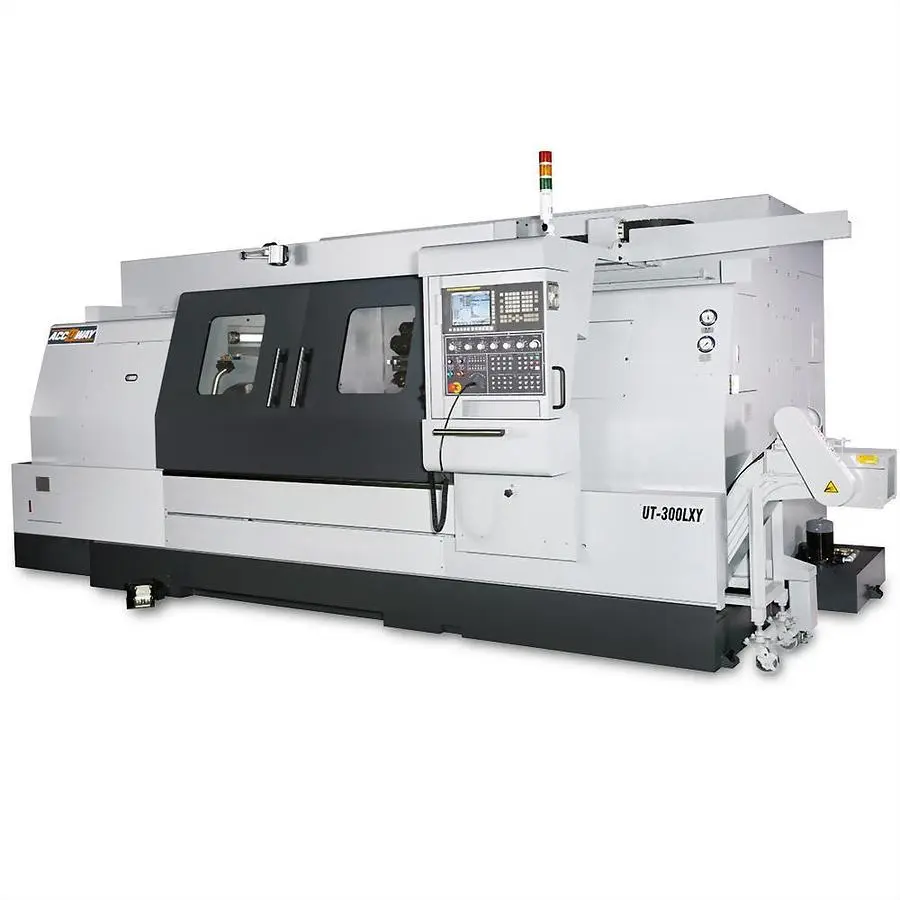

NEW ACCUWAY UT-300LXY

Slant Bed Turning Center

STANDARD ACCESSORIES
FANUC 0i-T controller
RJ-45 interface
Rigid tapping
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Lubrication system
4-bar coolant system
Three-color warning light

OPTIONAL ACCESSORIES
Upgrade to 15" Colored LCD monitor
Collect chuck
Tool setter
Parts catcher and parts conveyor
Bar feeder interface (7 or 24 pins)
Bar feeder
Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet
Steady rest
Gear box
Transformer
CE version
0 degree rotary tool holder
90 degree rotary tool holder
Linear scale

Controller: FANUC 0i-T
Swing over bed: mm 910
Swing over saddle: mm 720
Max. turning diameter: mm 420
Max. turning length: mm 1540 1470
Guide way type: Box
Spindle nose taper: ASA A2-8 A2-11
Chuck diameter: inch 10 12 15
Bar capacity: mm 75 90 105 116.5
Spindle speed: rpm 3500 2700 2500 2000
Spindle motor power(Cont. / 30min): kW 15/18.5 (18.5/22)
X-axis Travel: mm 275
Z-axis Travel: mm 1750
Y-axis Travel: mm ±50
X-axis Rapid Traverse Rate: m/min 20
Z-axis Rapid Traverse Rate: m/min 24
Y-axis Rapid Traverse Rate: m/min 10
Tooling system: BMT/VDI
Turret driven type: Servo mechanical
Number of tools: station 12
Square tool shank size: mm 25
Round tool shank size: mm 40
Max. Rotary Tool Speed: rpm 4000
Rotary Tool power: kW 3.7/5.5
Tailstock body travel: mm 1540
Quill travel: mm 120
Quill diameter: mm 85
Quill taper: MT 5
Machine dimension L x W x H: m 5.4 x 2.5 x 2.4
Net weight: kg 7800
