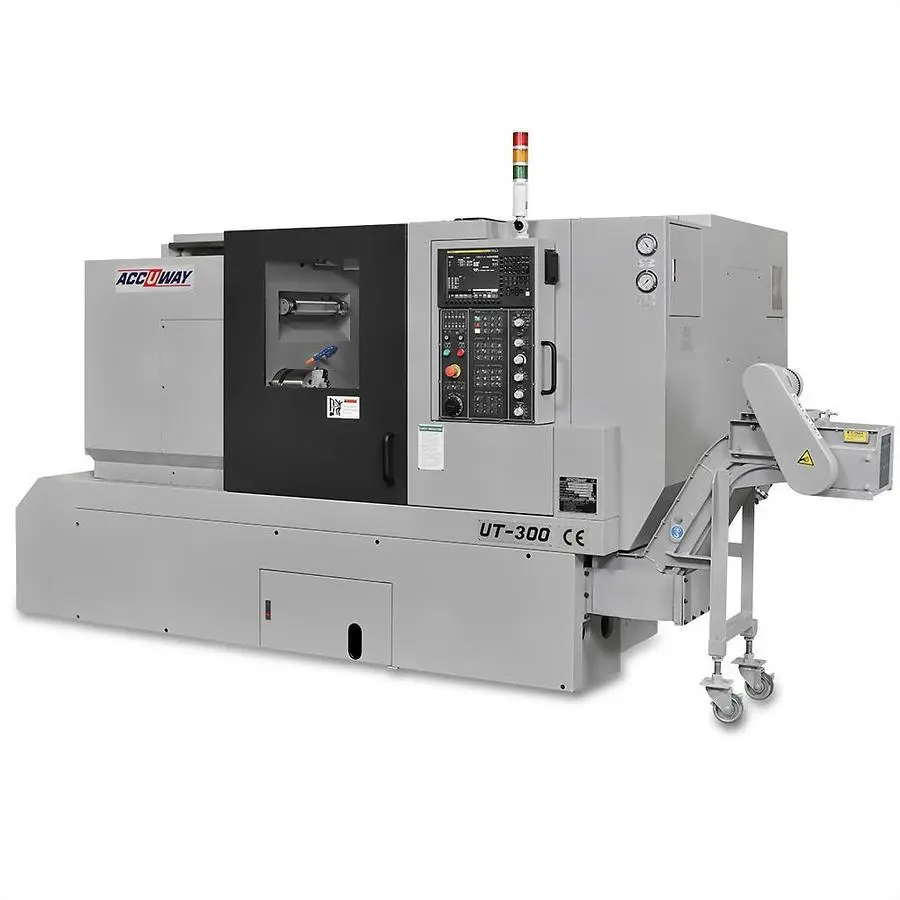

NEW ACCUWAY UT-300 UT-300M

Slant Bed Turning Center

STANDARD ACCESSORIES
FANUC 0i-T controller
RJ-45 interface
Rigid tapping
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Lubrication system
4-bar coolant system
Three-color warning light

OPTIONAL ACCESSORIES
Upgrade to 15" Colored LCD monitor
Collet chuck
Tool setter
Parts catcher and parts conveyor
Bar feeder interface (7 or 24 pins)
Bar feeder
Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet
Transformer
CE version
Loader interface
Gantry loader system
Auto door
Linear scale
0 degree rotary tool holder(UT-300M)
90 degree rotary tool holder(UT-300M)

Controller: FANUC 0i-T
Swing over bed: mm 612 612
Swing over saddle: mm 400 400
Max. turning diameter: mm 500 420
Max. turning length: mm 680 600 540 460
Guide way type: Box
Spindle nose taper: ASA A2-8 A2-11 A2-8 A2-11
Chuck diameter: inch 10 12 15 10 12 15
Bar capacity: mm 75 90 105 116.5 75 90 105 116.5
Spindle speed: rpm 3500 2700 2500 2000 3500 2700 2500 2000
Spindle motor power(Cont. / 30min): kW 15/18.5 (18.5/22)
X-axis Travel: mm 300 300
Z-axis Travel: mm 750 750
X-axis Rapid Traverse Rate: m/min 20 20
Z-axis Rapid Traverse Rate: m/min 24 24
Tooling system: BOT BMT/VDI
Turret driven type: Hydraulic/Servo Servo mechanical
Number of tools: station 12 12
Square tool shank size: mm 25 25
Round tool shank size: mm 40 40
Tailstock body travel: mm 540 540
Quill travel: mm 120 120
Quill diameter: mm 110 110
Quill taper: MT 5 5
Machine dimension L x W x H: m 3.3 x 1.8 x 1.8 3.3 x 1.8 x 1.9
Net weight: kg 5500 5500
