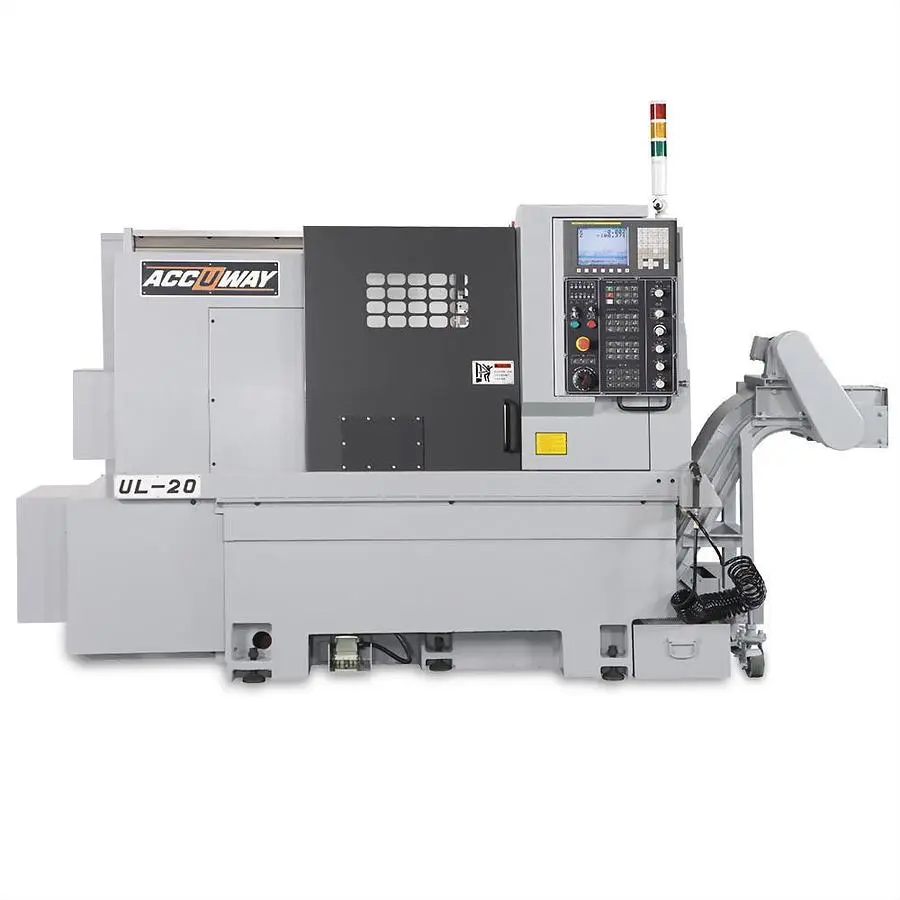

NEW ACCUWAY UL-20 UL-20M

Flat Bed CNC Turning Center

STANDARD ACCESSORIES
FANUC 0i-T controller
Rigid tapping
RJ-45 interface
10.4" Colored LCD monitor
Heat exchanger for electric cabinet
4-bar coolant system
Lubrication system
Three-color warning light

OPTIONAL ACCESSORIES
Upgrade to 15" Colored LCD monitor
Collet chuck
Tool setter

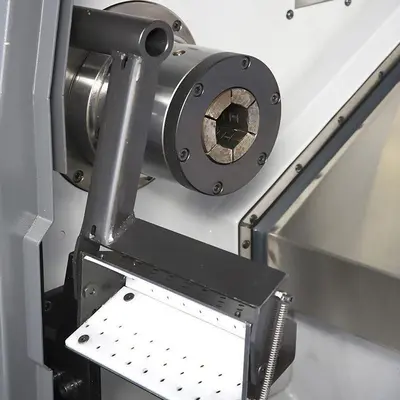

Parts catcher and parts conveyor
Bar feeder interface (7 or 24 pins)
Bar feeder
Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet
Transformer
CE version
Loader interface

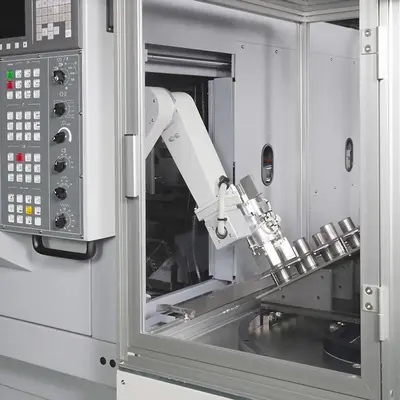

Gantry loader system
Auto door
Linear scale
0 degree rotary tool holder(UL-20M)
90 degree rotary tool holder(UL-20M)

Controller: FANUC 0i-T
Swing over bed: mm 455 455
Swing over saddle: mm 260 260
Max. turning diameter: mm 280 180
Max. turning length: mm 600 500
Guide way type: Box
Spindle nose taper: ASA A2-5 A2-6 A2-5 A2-6
Chuck diameter: inch 6 8 6 8
Bar capacity: mm 44 52 65 44 52 65
Spindle speed: rpm 6000 4500 4000 6000 4500 4000
Spindle motor power(Cont. / 30min): kW 11/15 11/15
X-axis travel: mm 175 175
Z-axis travel: mm 625 625
X-axis Rapid Traverse Rate: m/min 20 20
Z-axis Rapid Traverse Rate: m/min 20 20
Tooling system: BOT BMT/VDI
Turret driven type: Hydraulic/Servo Servo mechanical
Number of tools: station 8 10 12 12
Square tool shank size: mm 25 25 20 20
Round tool shank size: mm 32 32
Tailstock body travel: mm 400 400
Quill travel: mm 150 150
Quill diameter: mm 70 70
Quill taper: MT 4 4
Machine dimension L x W x H: m 2.5 x 1.5 x 1.7 2.7 x 1.5 x 1.75
Net weight: kg 3350 3500
