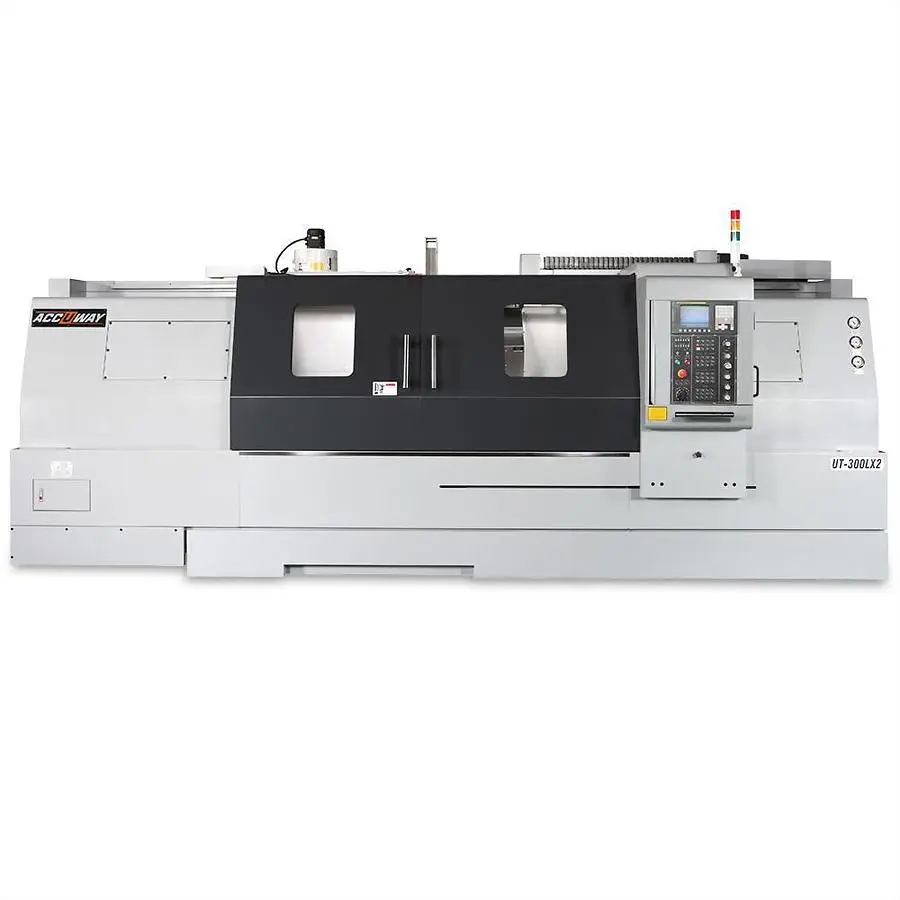

NEW ACCUWAY UT-300LX2

Slant Bed Turning Center

STANDARD ACCESSORIES
FANUC 0i-T controller
RJ-45 interface
Rigid tapping
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Lubrication system
4-bar coolant system
Three-color warning light

OPTIONAL ACCESSORIES
Upgrade to 15" Colored LCD monitor
Collet chuck
Tool setter
Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet
Transformer
CE version
Auto door
Steady rest
Linear scale

Controller: FANUC 0i-T
Swing over bed: mm 612
Swing over saddle: mm 400
Max. turning diameter: mm 500
Max. turning length: mm 2180 2100
Guide way type: Box
Spindle nose taper: ASA A2-8 A2-11
Chuck diameter: inch 10 12 15
Bar capacity: mm 75 90 105 116.5
Spindle speed: rpm 3500 2700 2500 2000
Spindle motor power(Cont. / 30min): kW 15/18.5(18.5/22)
X-axis Travel: mm 300
Z-axis Travel: mm 2250
X-axis Rapid Traverse Rate: m/min 20
Z-axis Rapid Traverse Rate: m/min 15
Tooling system: BOT
Turret driven type: Hydraulic/Servo
Number of tools: station 12
Square tool shank size: mm 25
Round tool shank size: mm 40
Tailstock body travel: mm 2040
Quill travel: mm 120
Quill diameter: mm 110
Quill taper: MT 5
Machine dimension L x W x H: m 5.5 x 2.3 x 2.2
Net weight: kg 9000
