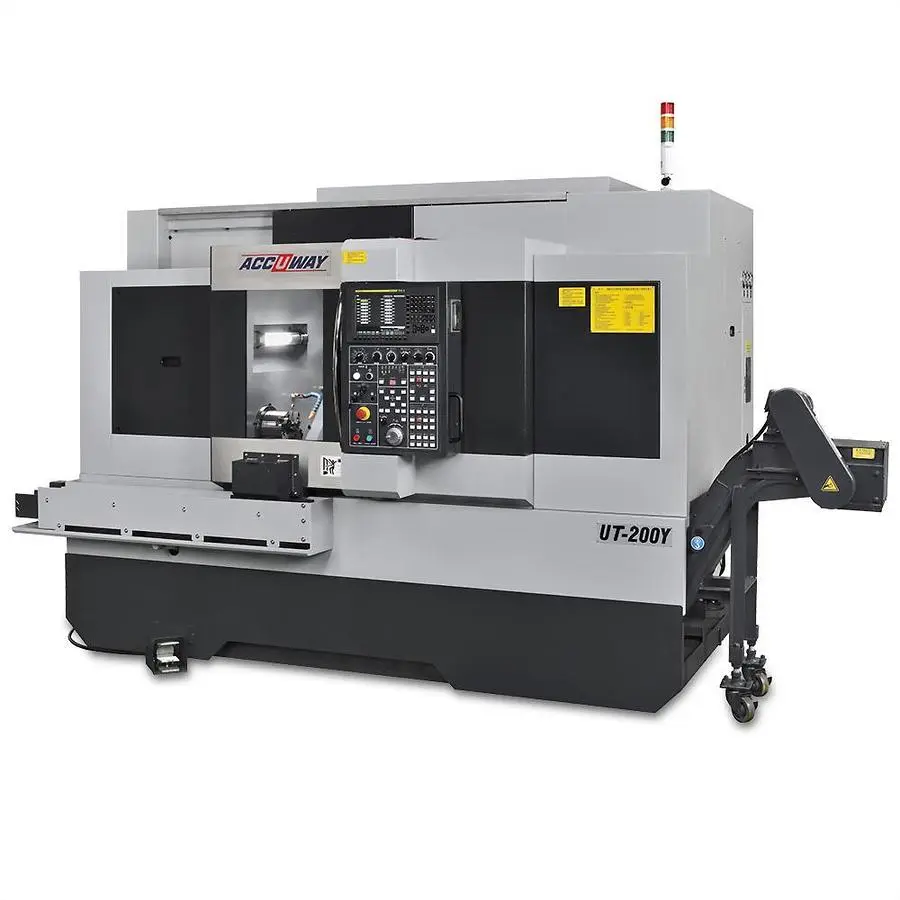

NEW ACCUWAY UT-200Y UA-200Y

Slant Bed Turning Center

STANDARD ACCESSORIES
FANUC 0i-T controller
RJ-45 interface
Rigid tapping
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Lubrication system
4-bar coolant system
Three-color warning light

OPTIONAL ACCESSORIES
Upgrade to 15" Colored LCD monitor
Collect chuck
Tool setter
Parts catcher and parts conveyor
Bar feeder interface (7 or 24 pins)
Bar feeder
Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet
Transformer
CE version
Loader interface
Gantry loader system
0 degree rotary tool holder
90 degree rotary tool holder
Auto door
Linear scale

Controller: FANUC 0i-T
Swing over bed: mm 680 680
Swing over saddle: mm 485 485
Max. turning diameter: mm 240 155
Max. turning length: mm 440 365 500 425
Guide way type: Box
Spindle nose taper: ASA A2-5 A2-6 A2-8 A2-5 A2-6 A2-8
Chuck diameter: inch 6 8 10 6 8 10
Bar capacity: mm 44 52 65 75 44 52 65 75
Spindle speed: rpm 6000 4500 4000 3500 6000 4500 4000 3500
Spindle motor power(Cont. / 30min): kW 11/15(15/18.5) 11/15(15/18.5)
X-axis Travel: mm 220 220
Z-axis Travel: mm 600 600
Y-axis Travel: mm ±50 ±50
X-axis Rapid Traverse Rate: m/min 20 20
Z-axis Rapid Traverse Rate: m/min 20 20
Y-axis Rapid Traverse Rate: m/min 10 10

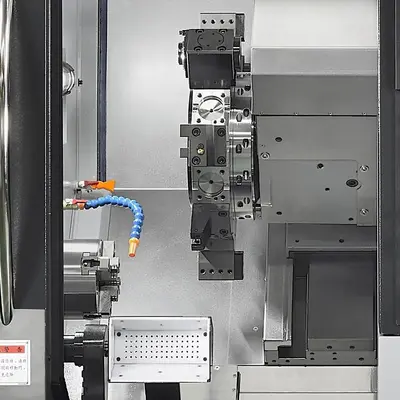

Tooling system: BMT/VDI BMT-55N
Turret driven type: Servo mechanical Servo mechanical
Number of tools: station 12 15
Square tool shank size: mm 20 20
Round tool shank size: mm 32 32
Max. Rotary Tool Speed: rpm 6000 6000
Rotary Tool power: kW 3.7/5.5 3.7/5.5
Tailstock body travel: mm 545 545
Quill travel: mm 80 80
Quill diameter: mm 75 75
Quill taper: MT 4 4
Machine dimension L x W x H: m 3.0 x 1.9 x 2.2 3.3 x 1.9 x 2.2
Net weight: kg 4500 5000
