Overview
Type:
CNC Lathes
Manufacturer:
ACCUWAY
Model:
UT-200L UT-200LM
Stock #:
8142258
Description

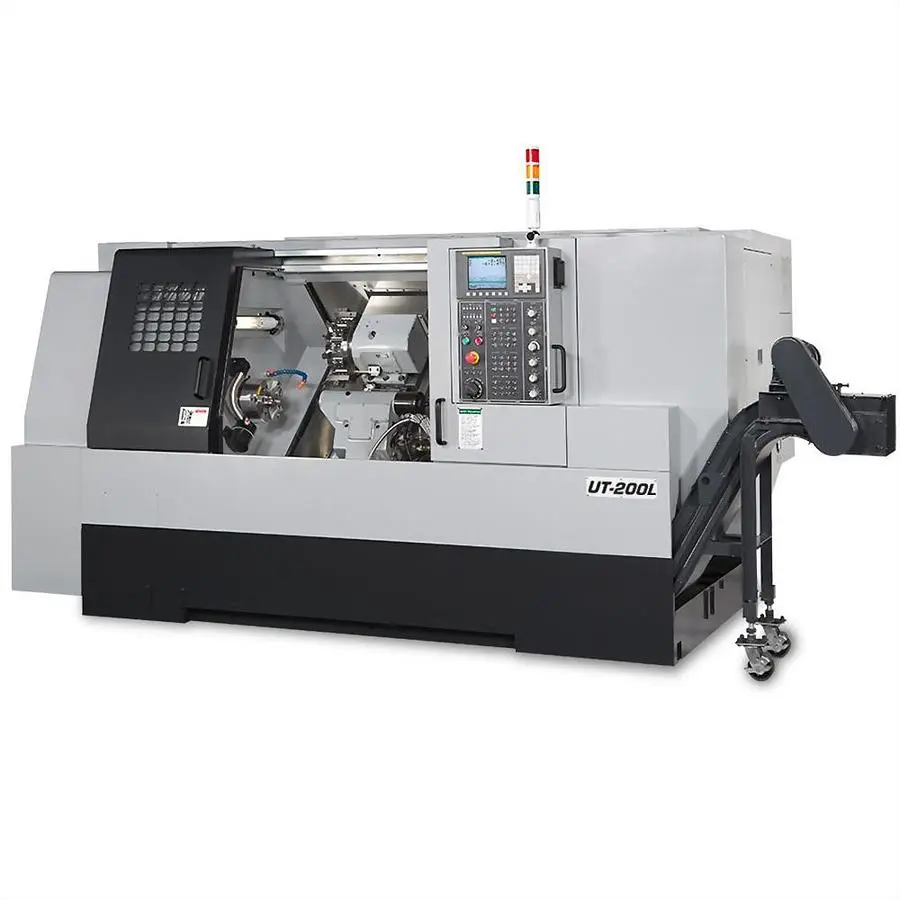

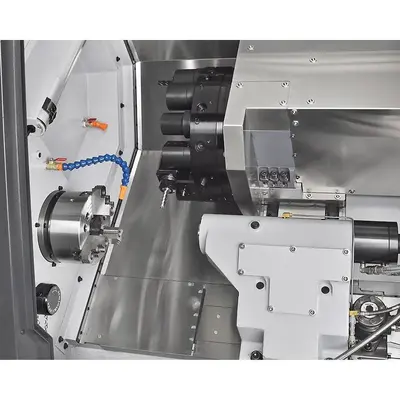

Slant Bed Turning Center

STANDARD ACCESSORIES
FANUC 0i-T controller
RJ-45 interface
Rigid tapping
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Lubrication system
4-bar coolant system
Three-color warning light

OPTIONAL ACCESSORIES
Upgrade to 15" Colored LCD monitor
Collet chuck
Tool setter
Parts catcher and parts conveyor
Bar feeder interface (7 or 24 pins)
Bar feeder
Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet
Transformer
CE version
Loader interface
Gantry loader system
Auto door
Linear scale
0 degree rotary tool holder(UT-200LM)
90 degree rotary tool holder(UT-200LM)

Specifications

Controller: FANUC 0i-T
Swing over bed: mm 505 505
Swing over saddle: mm 318 318
Max. turning diameter: mm 300 260
Max. turning length: mm 1000 920 900 820
Guide way type: Box
Spindle nose taper: ASA A2-5 A2-6 A2-8 A2-5 A2-6 A2-8
Chuck diameter: inch 6 8 10 6 8 10
Bar capacity: mm 44 52 65 75 44 52 65 75
Spindle speed: rpm 6000 4500 4000 3500 6000 4500 4000 3500
Spindle motor power(Cont. / 30min): kW 11/15(15/18.5) 11/15(15/18.5)
X-axis Travel: mm 220 220
Z-axis Travel: mm 1050 1050
X-axis Rapid Traverse Rate: m/min 20 20
Z-axis Rapid Traverse Rate: m/min 20 20
Tooling system: BOT BMT/VDI
Turret driven type: Hydraulic/Servo Servo mechanical
Number of tools: station 8 10 12 12
Square tool shank size: mm 25 25 20 20
Round tool shank size: mm 32 32
Tailstock body travel: mm 1045 1045
Quill travel: mm 80 80
Quill diameter: mm 75 75
Quill taper: MT 4 4
Machine dimension L x W x H: m 3.7 x 1.6 x 1.8 3.7 x 1.6 x 1.9
Net weight: kg 4700 4700
