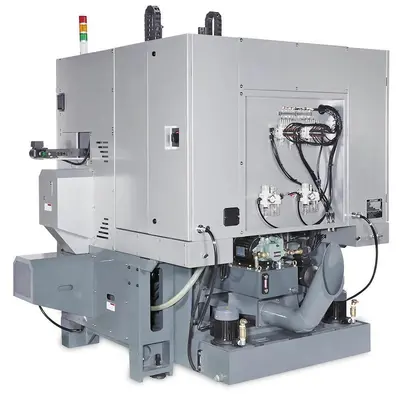

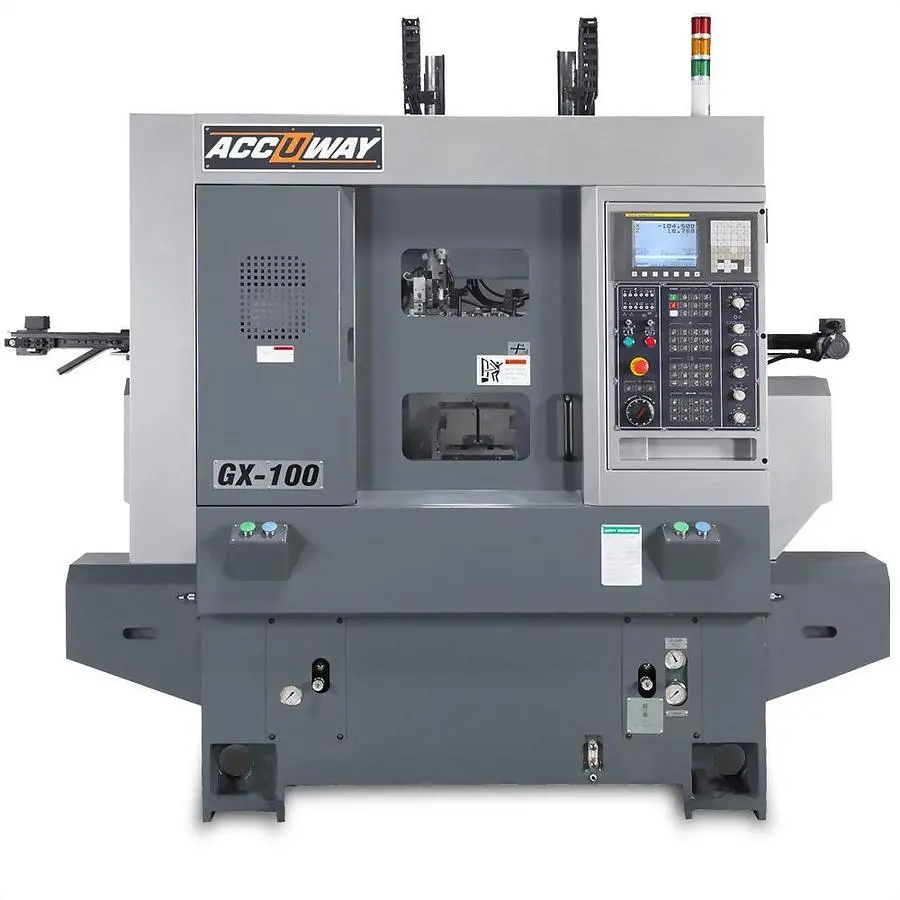

Compact CNC Lathe for Automatic Machining
STANDARD ACCESSORIES
Fanuc 0i-T controller

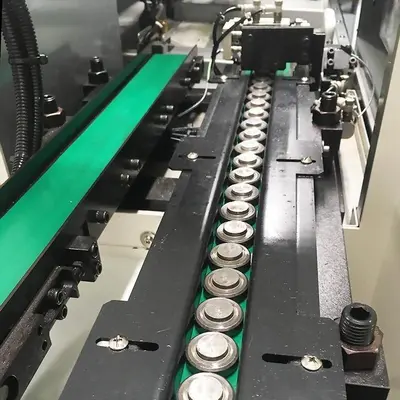

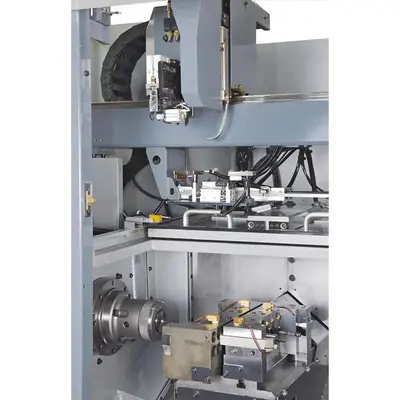

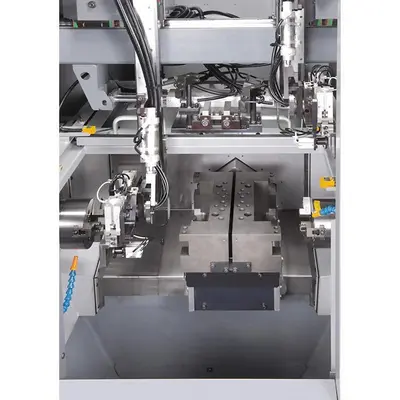

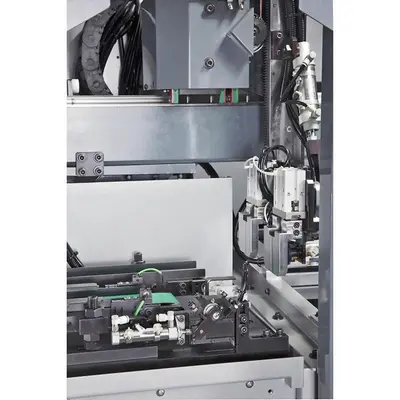

Integrated loader
Spindle air blow
Rigid tapping
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Lubrication system
4-bar coolant system
Three-color working light
OPTIONAL ACCESSORIES
Upgrade to 15" Colored LCD monitor
Collect chuck
Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet
Transformer
CE version
CTS + Spindle air blow system
Gripper blank
Controller: FANUC 0i-T
Max. Turning Diameter(SP1): mm 50
Max. Turning Diameter(SP2): mm 50
Max. Turning Length: mm 60
Guide way type: Linear
Spindle Nose: ASA A2-5
Chuck Diameter: inch 5
Bar Capacity: mm 30
Spindle Speed: rpm 6000
Spindle Motor Power(Cont. /30min): kW 5.5/7.5
X-axis Travel: mm 210
Z-axis Travel: mm 310(±155)
X-axis Rapid Traverse Rate: m/min 18
Z-axis Rapid Traverse Rate: m/min 24
Tooling system: Gang
Turret driven type: -
Square Tool Shank Size: mm 20
Round Tool Shank Size: mm 25
Machine dimension L x W x H: m 2.7 x 2.0 x 2.4
Machine Weight: kg 3200
Diameter: mm 10~50
Length: mm 20~60
Weight (One side): kg 0.5
Stroke: mm 500
Rapid traverse rate: m/min 84
