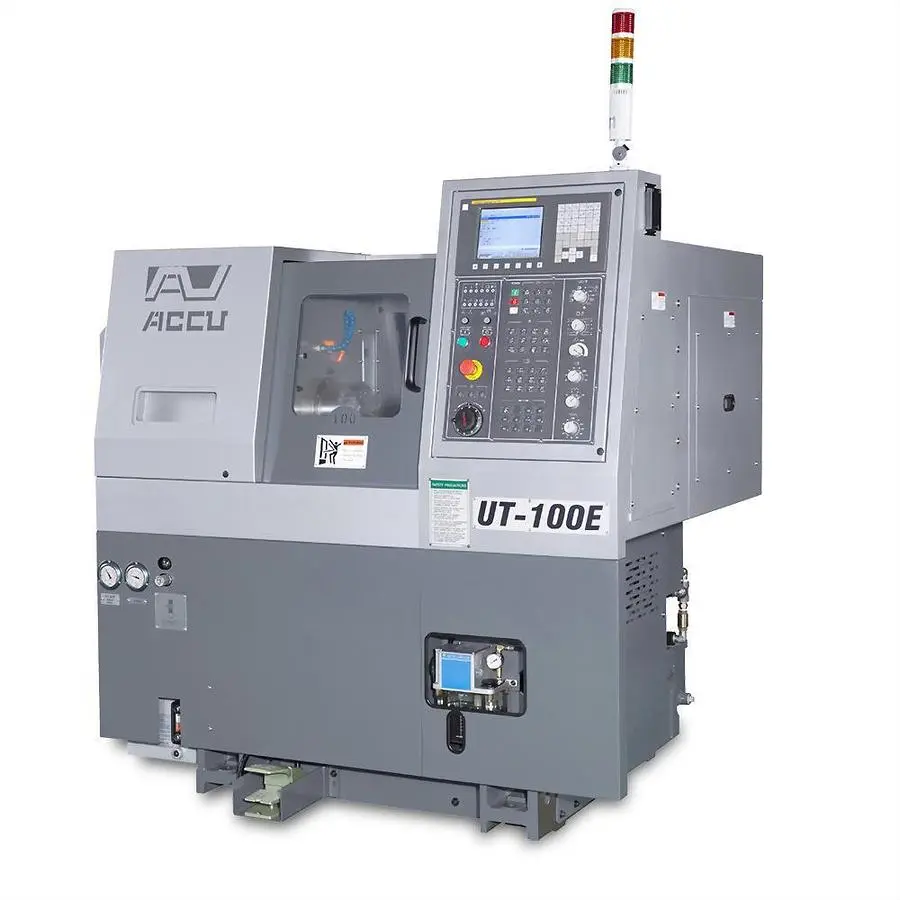

Compact CNC Lathe for Automatic Machining
STANDARD ACCESSORIES
FANUC 0i-T controller
RJ-45 interface
Rigid tapping
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Lubrication system
4-bar coolant system
Three-color warning light
OPTIONAL ACCESSORIES
Collet chuck
Tool setter
Parts catcher and parts conveyor
Bar feeder interface (7 or 24 pins)
Bar feeder
Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet
Transformer
CE version
15 bar high pressure coolant system
Linear scale
Controller: FANUC 0i-T
Swing over bed: mm 380 380
Swing over saddle: mm 320 320
Max. turning diameter: mm 180 100
Max. turning length: mm 175 140
Guide way type: Box way
Spindle nose taper: ASA A2-5 A2-5
Chuck diameter: inch 6 6
Bar capacity: mm 30 30
Spindle speed: rpm 6000 6000
Spindle motor power(Cont. / 30min): kW 5.5/7.5 5.5/7.5
X-axis Travel: mm 120 120
Z-axis Travel: mm 230 230
X-axis Rapid Traverse Rate: m/min 12 12
Z-axis Rapid Traverse Rate: m/min 18 18

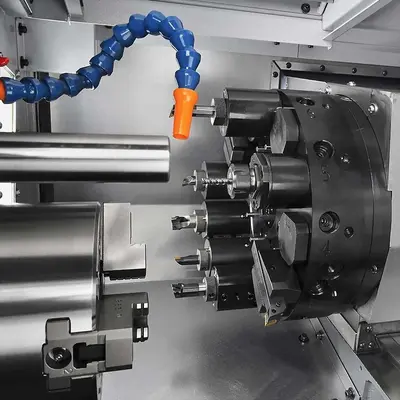

Tooling system: BOT BMT/VDI
Turret driven type: Hydraulic/Servo Servo
Number of tools: station 12 12
Square tool shank size: mm 20 20
Round tool shank size: mm 32 32
Machine dimension L x W x H: m 1.7 x 1.8 x 1.8 1.7 x 1.8 x 1.8
Net weight: kg 1800 1800
