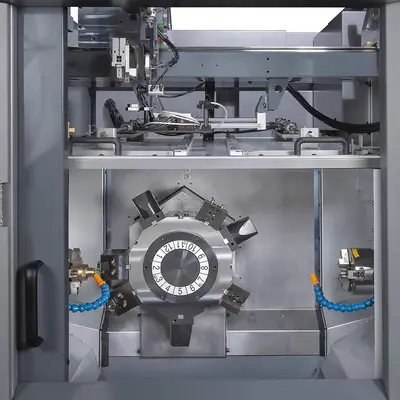

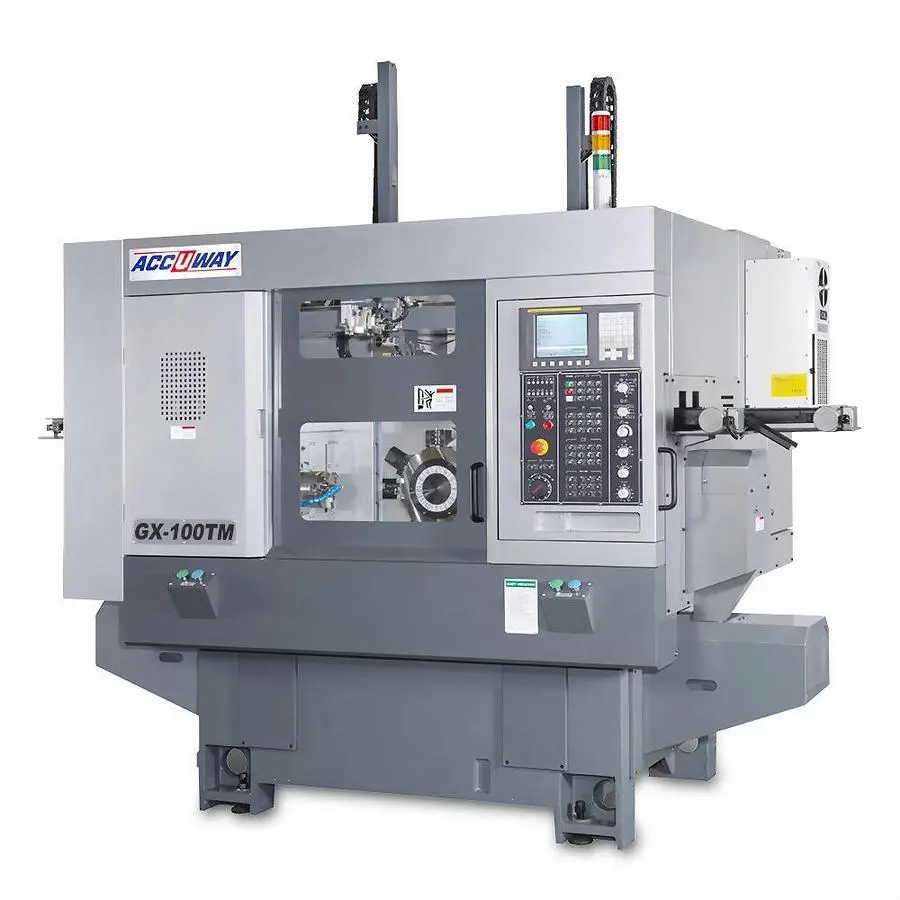

NEW ACCUWAY GX-100TM

Compact CNC Lathe for Automatic Machining

STANDARD ACCESSORIES
Fanuc 0i-T controller
Integrated loader
Spindle air blow
Rigid tapping
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Lubrication system
4-bar coolant system
Three-color working light

OPTIONAL ACCESSORIES
Collect chuck
Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet
Transformer
CE version
CTS + Spindle air blow system
Gripper blank
0 degree rotary tool holder
90 degree rotary tool holder

Controller: FANUC 0i-T
Max. Turning Diameter(SP1): mm 70
Max. Turning Diameter(SP2): mm 70
Max. Turning Length: mm 55
Guide way type: Linear
Spindle Nose: ASA A2-5
Chuck Diameter: inch 5
Bar Capacity: mm 30
Spindle Speed: rpm 6000
Spindle Motor Power(Cont. /30min): kW 5.5/7.5
X-axis Travel: mm 160(145+15)
Z-axis Travel: mm 310(±155)
X-axis Rapid Traverse Rate: m/min 18
Z-axis Rapid Traverse Rate: m/min 24
Tooling system: BMT-45
Turret driven type: Servo
mechanical
Number of tools: station 12
Square Tool Shank Size: mm 20
Round Tool Shank Size: mm 32
Max. Rotary Tool Speed: rpm 6000
Rotary Tool power: kW 3.7/5.5
Machine dimension L x W x H: m 3 x 2 x 2.4
Machine Weight: kg 3300
Diameter: mm 10~50
Length: mm 20~60
Weight (One side): kg 0.5
Stroke: mm 550
Rapid traverse rate: m/min 84
