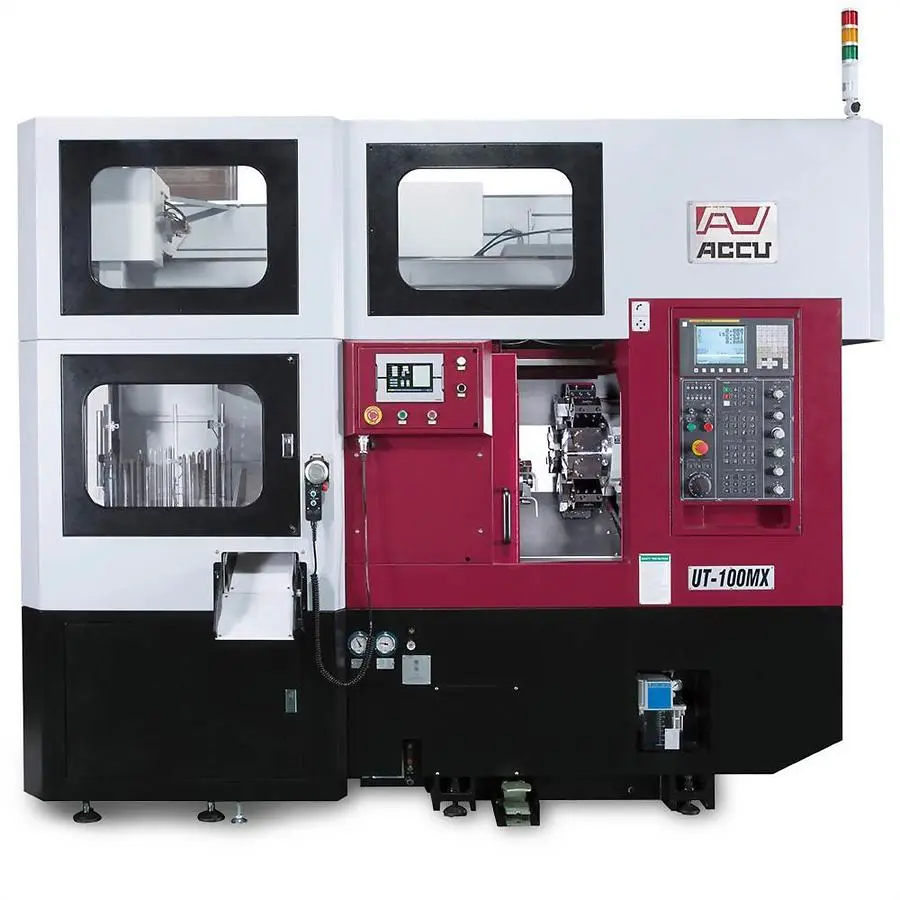

Compact CNC Lathe for Automatic Machining
STANDARD ACCESSORIES
FANUC 0i-T controller
RJ-45 interface
Rigid tapping
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Lubrication system
4-bar coolant system
Three-color warning light
OPTIONAL ACCESSORIES
Collet chuck
Tool setter
Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet
Transformer
CE version
15 bar high pressure coolant system
0 degree rotary tool holder
90 degree rotary tool holder
Linear scale
Controller: FANUC 0i-T
Swing over bed: mm 380
Swing over saddle: mm 320
Max. turning diameter: mm 220
Max. turning length: mm 155
Guide way type: Box
Spindle nose taper: ASA A2-5
Chuck diameter: inch 6
Bar capacity: mm 30
Spindle speed: rpm 6000
Spindle motor power(Cont. / 30min): kW 5.5/7.5
X-axis Travel: mm 120
Z-axis Travel: mm 230
X-axis Rapid Traverse Rate: m/min 12
Z-axis Rapid Traverse Rate: m/min 18
Turret driven type: BMT-55
Tooling system: Servo mechanical
Number of tools: station 12
Square tool shank size: mm 25
Round tool shank size: mm 40
Max. Rotary Tool Speed: rpm 6000
Rotary Tool driver power: kW 3.7/5.5
Machine dimension L x W x H: m 3.1 x 1.7 x 2.4
Net weight: kg 2200

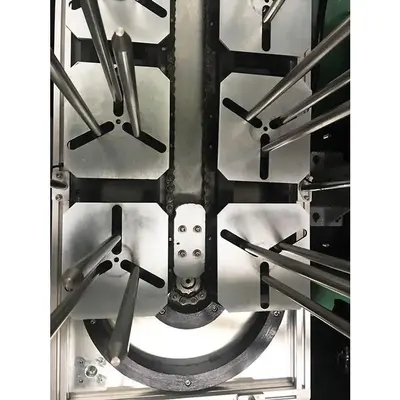

Loader control system: OMRON
Diameter: mm 20~150
Length: mm 20~100
Weight (One side): kg 1
Stroke: mm 360
Rapid traverse rate: m/min 75
