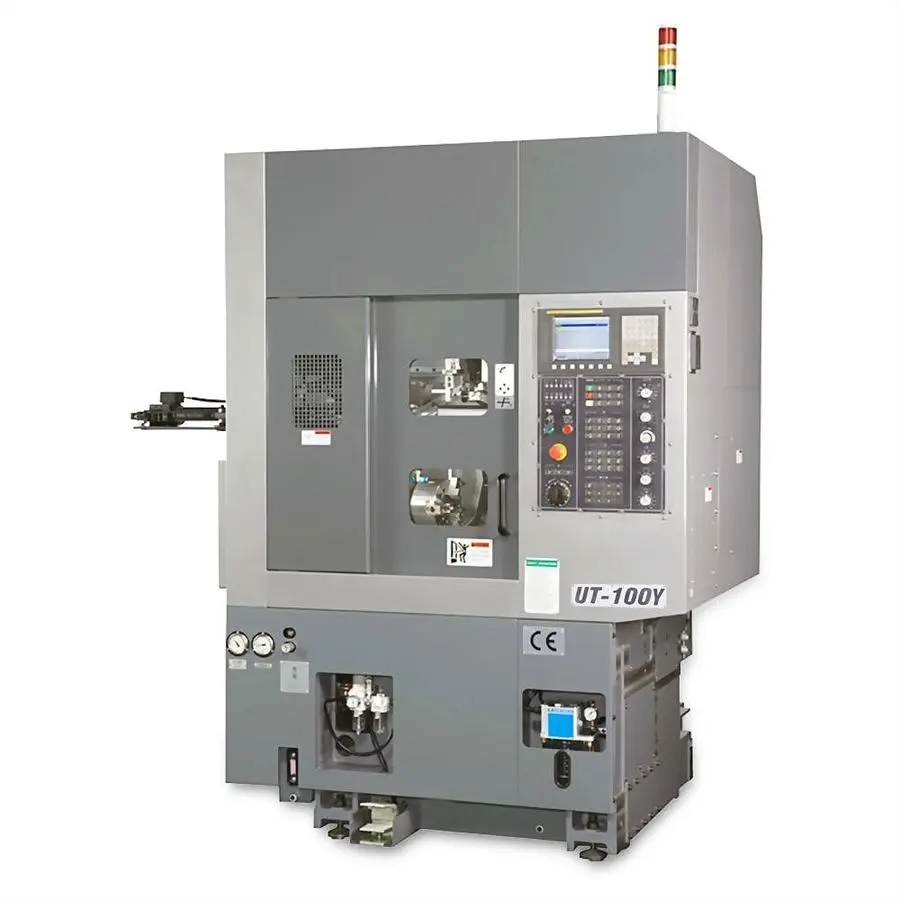

NEW ACCUWAY UT-100Y

Compact CNC Lathe for Automatic Machining

STANDARD ACCESSORIES
FANUC 0i-T controller
RJ-45 interface
Rigid tapping
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Lubrication system
4-bar coolant system
Three-color warning light

OPTIONAL ACCESSORIES
Collet chuck
Air cooler for electric cabinet
Oil mist collector
Oil-coolant skimmer
CE version
Transformer
15 bar high pressure coolant system
0 degree rotary tool holder
90 degree rotary tool holder
Linear scale

Controller: FANUC 0i-T
Swing over bed: mm 450
Swing over saddle: mm 330
Max. turning diameter: mm 110
Max. turning length: mm 170
Guide way type: Box
Spindle nose taper: ASA A2-5
Chuck diameter: inch 6
Bar capacity: mm 30
Spindle speed: rpm 6000
Spindle motor power(Cont. / 30min): kW 5.5/7.5
X-axis Travel: mm 80
Z-axis Travel: mm 220
Y-axis Travel: mm ±25
X-axis Rapid Traverse Rate: m/min 12
Z-axis Rapid Traverse Rate: m/min 18
Y-axis Rapid Traverse Rate: m/min 10

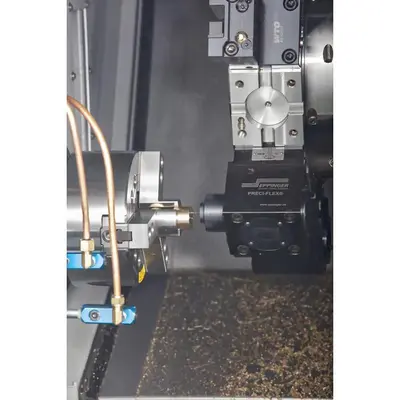

Turret driven type: BMT-55
Tooling system: Servo mechanical
Number of tools: station 12
Square tool shank size: mm 25
Round tool shank size: mm 40
Max. Rotary Tool Speed: rpm 6000
Rotary Tool driver power: kW 3.7/5.5
Machine dimension L x W x H: m 2.4 x 2 x 2.53
Net weight: kg 2300

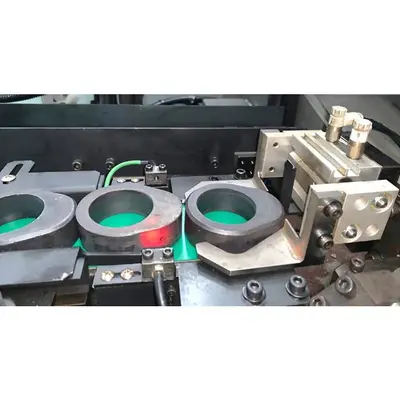

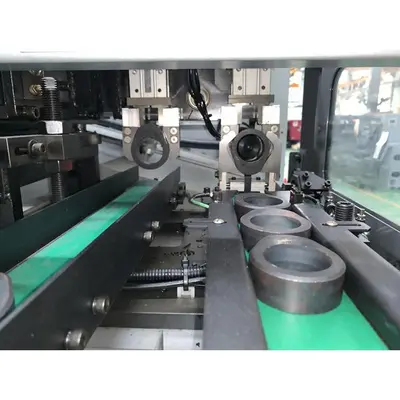

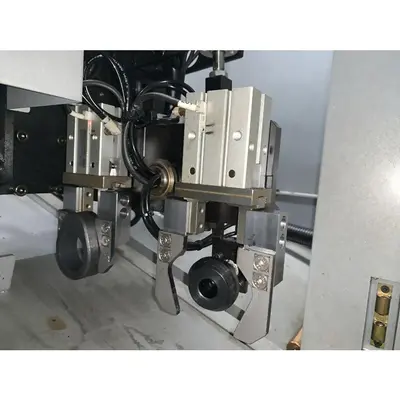

Diameter: mm 10~60
Length: mm 20~100
Weight (One side): kg 0.5/1
Stroke: mm 660
Rapid traverse rate: m/min 84
