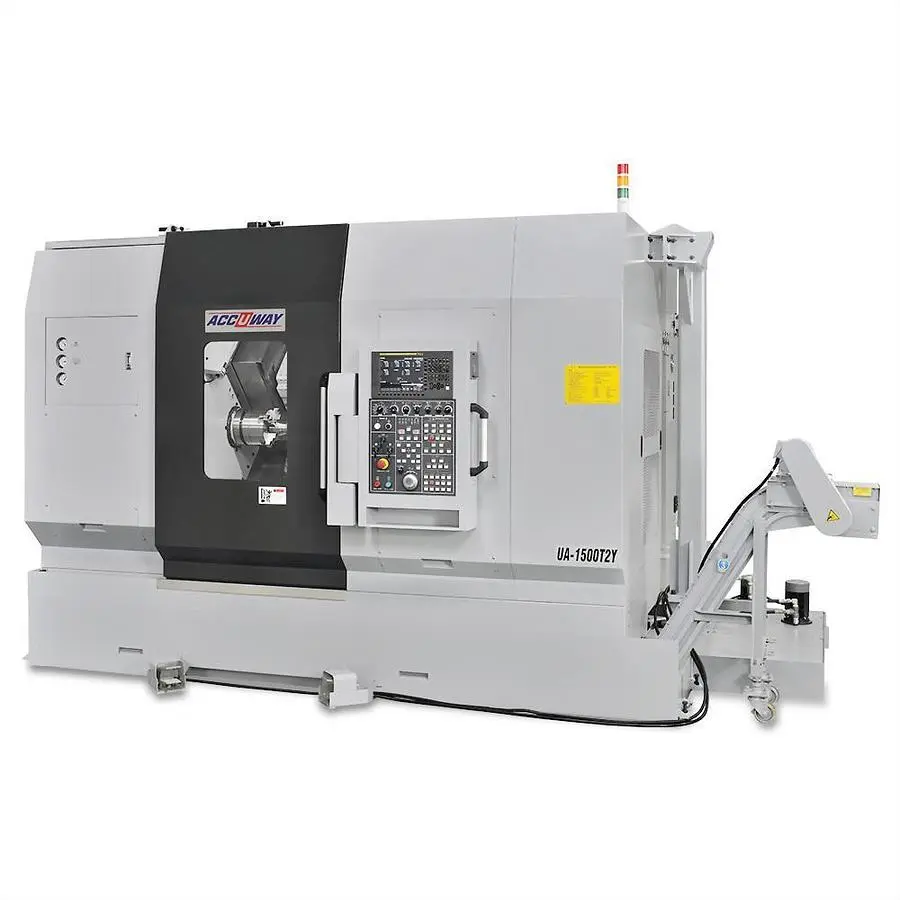

NEW ACCUWAY UA-1500T2Y

Multi-axis Complex Turning-milling Center

Controller: FANUC 0i-T
Swing over bed: mm 660
Swing over saddle: mm 620
Max. Turning Diameter(SP1): mm 300
Max. Turning Diameter(SP2): mm 300
Max. turning length: mm 480
Guide way type: Linear + Box
Spindle Nose: ASA A2-6
Chuck Diameter: inch 6 8
Bar Capacity: mm 52
Spindle Speed: rpm 4500
Spindle Motor Power(Cont. /30min): kW 7.5/11
X1/X2 axis Travel: mm 190
Z1/Z2 axis Travel: mm 600
Y-axis Travel: mm ±50
B-axis Travel: mm 700
X1/X2 axis Rapid Traverse Rate: m/min 20
Z1/Z2 axis Rapid Traverse Rate: m/min 36
Y-axis Rapid Traverse Rate: m/min 10
B-axis Rapid Traverse Rate: m/min 40

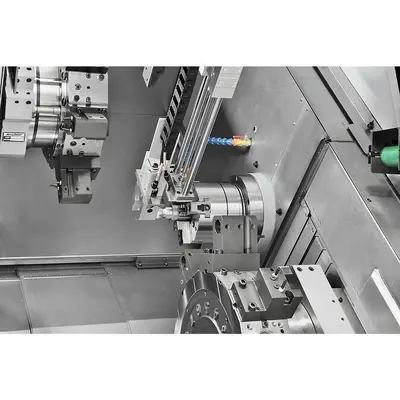

Tooling system: BMT-55N (BMT-40)
Turret driven type: Servo mechanical
Number of tools: station 16+16
Square tool shank size: mm 20(25)
Round tool shank size: mm 25(32)
Max. Rotary Tool Speed: rpm 6000
Rotary Tool power: kW 3.7/5.5
Machine dimension L x W xH: m 4.0 x 2.5 x 2.4
Net weight: kg 10000
