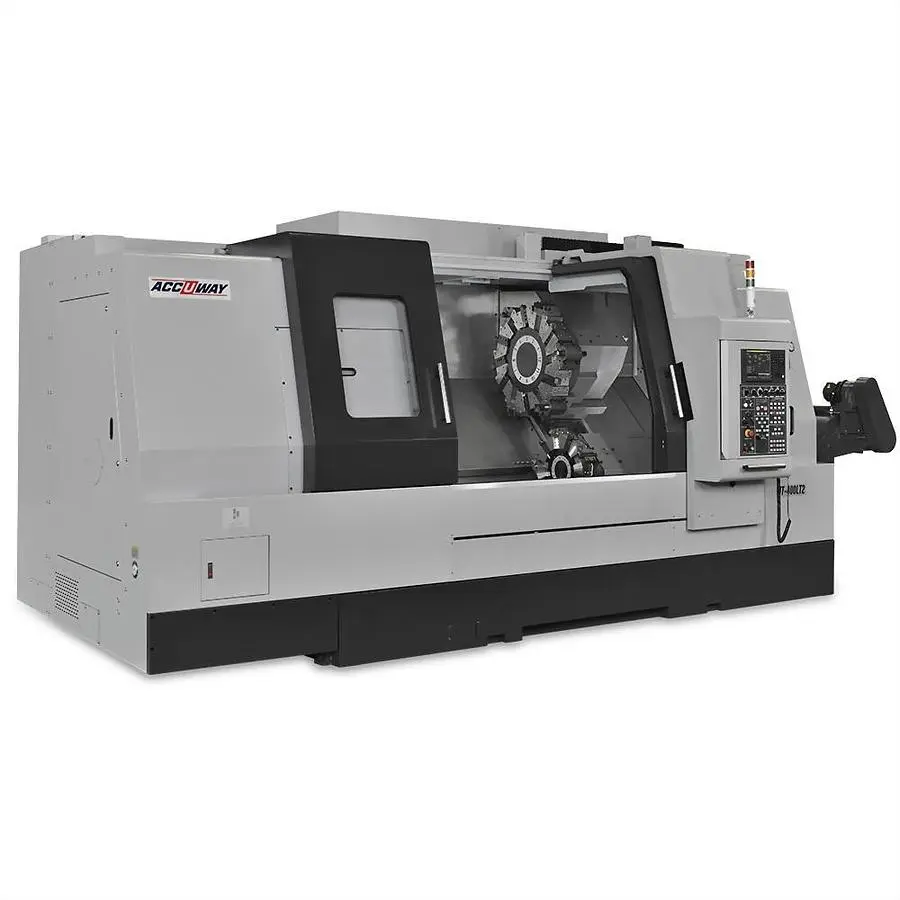

NEW ACCUWAY UT-400LT2

Multi-Axis Super Complex Turning Center

Controller: FANUC 0i-TF Plus
Swing over bed: mm 900
Swing over saddle: mm 745
Max. Turning Diameter (SP1): mm 700
Max. Turning Diameter (SP2): mm 460
Max. turning length: mm 1400
Guide way type: Box
Spindle Nose: ASA A2-15
Chuck Diameter: inch 24
Bar Capacity: mm 180
Spindle Speed: rpm 800(Belt)
Spindle Motor Power(Cont. /30min): kW 30/37 + 2 speed
gear box
X1/X2 axis Travel: mm 380 / 260
Z1/Z2 axis Travel: mm 1500
X1/X2 axis Rapid Traverse Rate: m/min 20
Z1/Z2 axis Rapid Traverse Rate: m/min 24

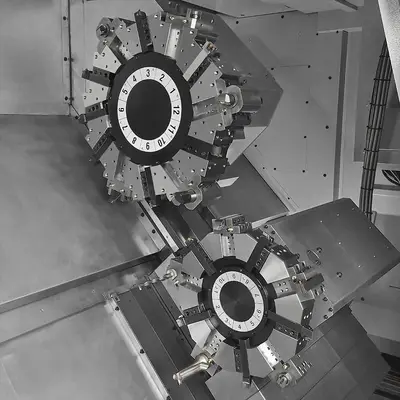

Tooling system: BOT
Turret driven type: Servo mechanical
Number of tools: station 12+10
Square tool shank size T1/T2: mm □32 / □25
Round tool shank size T1/T2: mm Ø50 / Ø32
Machine dimension L x W xH: m 6.2 x 3.2 x 2.6
Net weight: kg 14500
