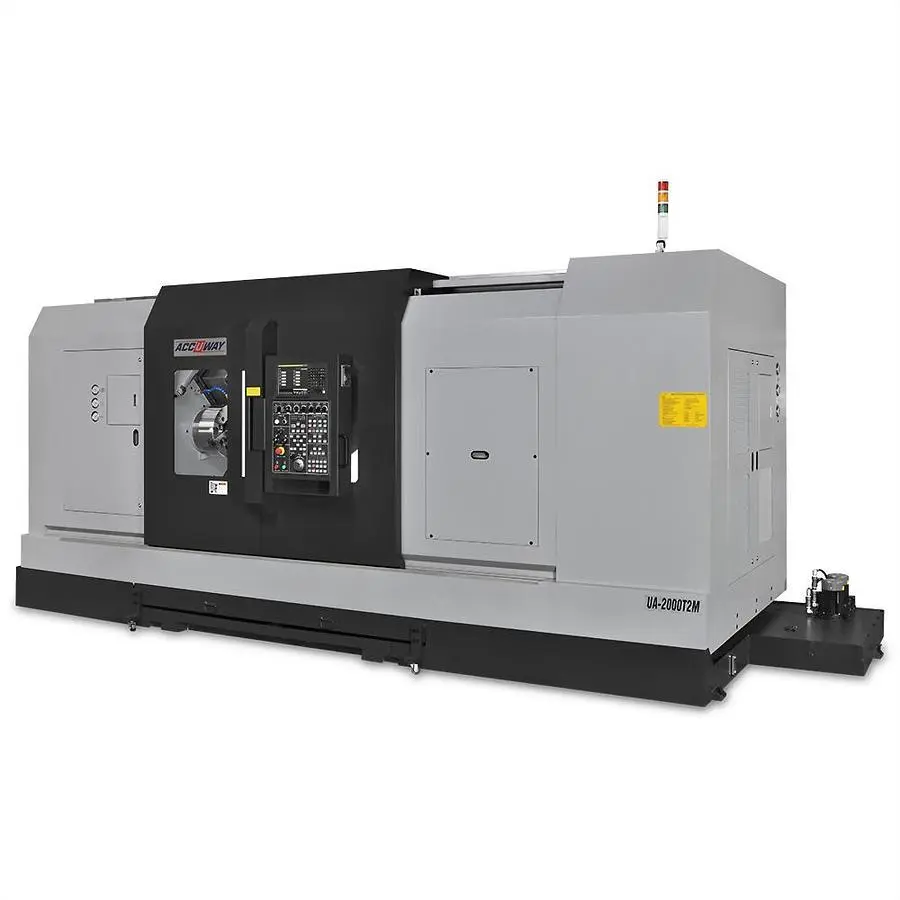

NEW ACCUWAY UA-2000T2M UA-2000T2MB

Multi-axis Complex Turning-milling Center

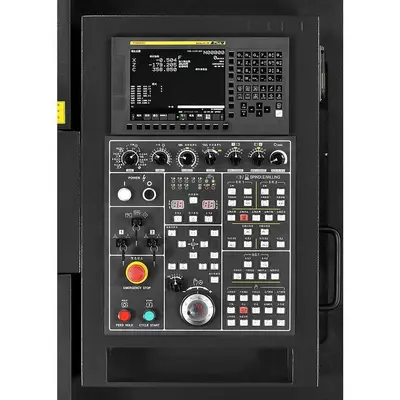

Controller: FANUC 0i-T
Swing over bed: mm 660 660
Swing over saddle: mm 620 620
Max. Turning Diameter (SP1): mm 340 340
Max. Turning Diameter (SP2): mm 340 340
Max. turning length: mm 510 440
Guide way type: Linear + Box
Spindle Nose: ASA A2-8 A2-11
Chuck Diameter: inch 10 12 15
Bar Capacity: mm 75 75 105
Spindle Speed: rpm 3500(3 jaw) 2500(3 jaw) 2500(3 jaw)
Spindle Motor Power(Cont. /30min): kW 11/15 15/18.5
X1/X2 axis Travel: mm 210 210
Z1/Z2 axis Travel: mm 600 600
B-axis Travel: mm 1500 1400
X1/X2 axis Rapid Traverse Rate: m/min 20 20
Z1/Z2 axis Rapid Traverse Rate: m/min 30 30
B-axis Rapid Traverse Rate: m/min 30 30
Tooling system: BMT-55N
Turret driven type: Servo mechanical
Number of tools: station 16+16 16+16
Square tool shank size: mm 20(25) 20(25)
Round tool shank size: mm 32(40) 32(40)
Max. Rotary Tool Speed: rpm 6000 6000
Rotary Tool power: kW 3.7/5.5 3.7/5.5
Machine dimension L x W xH: m 6.0 x 2.4 x 2.4 6.0 x 2.4 x 2.4
Net weight: kg 11500 13000
