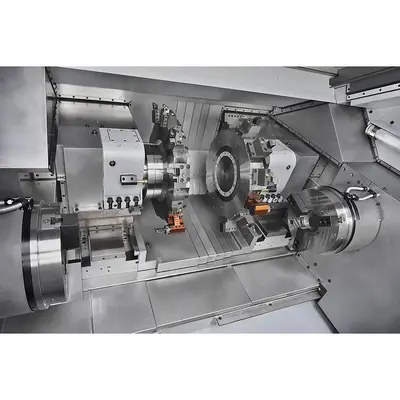

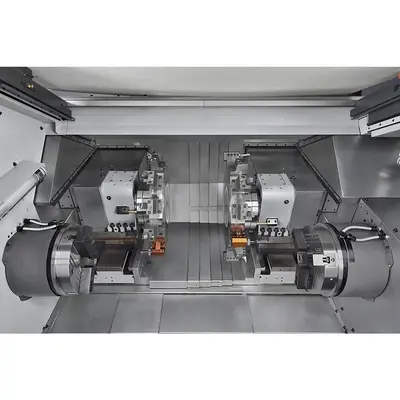

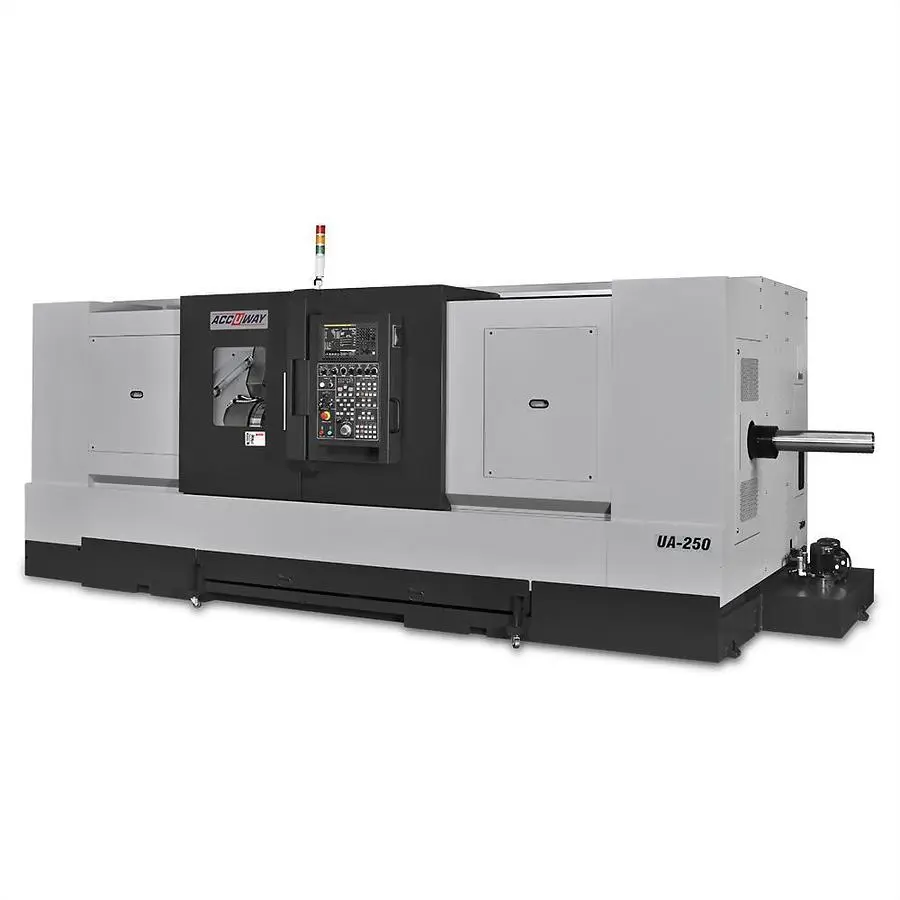

NEW ACCUWAY UA-250

Multi-axis Complex Turning-milling Center

Controller: FANUC 0i-T
Swing over bed: mm 700
Swing over saddle: mm 600
Max. Turning Diameter (SP1): mm 360
Max. Turning Diameter (SP2): mm 360
Max. turning length: mm 290
Guide way type: Box
Spindle Nose: ASA A2-11

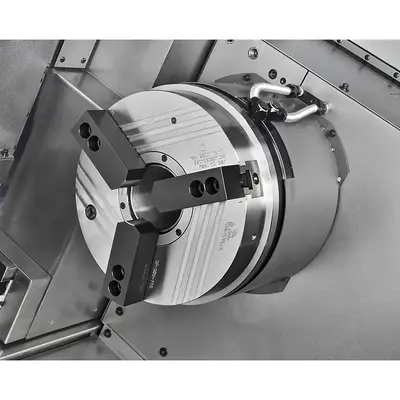

Chuck Diameter: inch 15
Bar Capacity: mm 105
Spindle Speed: rpm 2500
Spindle Motor Power(Cont. /30min): kW 15/18.5
X1/X2 axis Travel: mm 210
Z1/Z2 axis Travel: mm 500
B-axis Travel: mm 1200
X1/X2 axis Rapid Traverse Rate: m/min 20
Z1/Z2 axis Rapid Traverse Rate: m/min 24
B-axis Rapid Traverse Rate: m/min 24
Tooling system: BMT-55N
Turret driven type: Servo mechanical
Number of tools: station 12+12
Square tool shank size: mm 25
Round tool shank size: mm 40
Machine dimension L x W xH: m 5.6 x 2.6 x 2.4
Net weight: kg 11000
