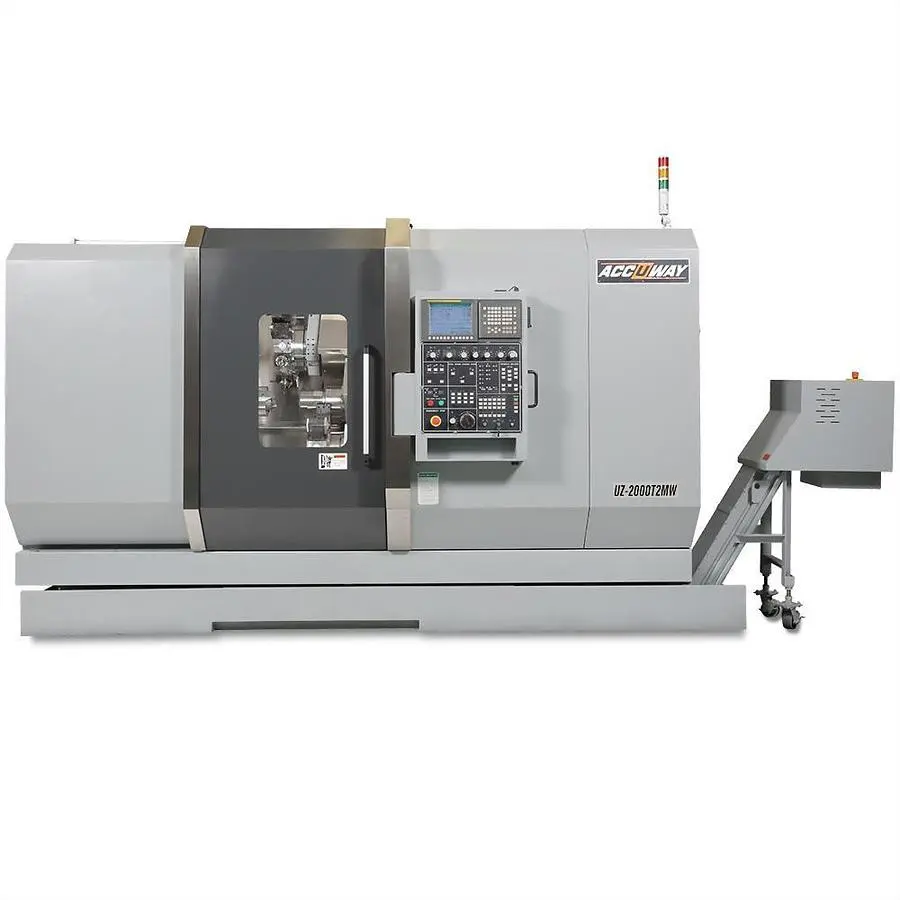

NEW ACCUWAY UZ-2000T2MW UZ-2000T2W

Multi-Axis Machine for Mass Production

Controller: FANUC 0i-T
Swing over bed: mm 660 660
Swing over saddle: mm 620 620
Max. Turning Diameter: mm 320 320
Max. turning length: mm 790 790
Guide way type: Linear + Box
Spindle Nose: ASA A2-5 A2-8 A2-11 A2-5 A2-8 A2-11
Chuck Diameter: inch 6 10 15 6 10 15
Bar Capacity: mm 52 78 105 52 78 105
Spindle Speed: rpm 5000(Built-in) 3500(Belt) 2500(Belt) 5000(Built-in) 3500(Belt) 2500(Belt)
Spindle Motor Power: kW 11/15 (15/18.5) Cont.
/30min
Tailstock body travel: mm 770 770
Quill travel: mm 120 120
Quill diameter: mm 85 85
Quill taper: MT 5 5
X1/X2 axis Travel: mm 210 210
Z1/Z2 axis Travel: mm 840 840
X1/X2 axis Rapid Traverse Rate: m/min 20 24
Z1/Z2 axis Rapid Traverse Rate: m/min 36 40
Tooling system: BMT-40 BMT-40
Turret driven type: Servo mechanical
Number of tools: station 16+16 16+16
Square tool shank size: mm 20 20
Round tool shank size: mm 32 32
Machine dimension LxWxH: m 5.1 x 2.4 x 2.4 5.1 x 2.4 x 2.4
Net weight: kg 10500 10500
