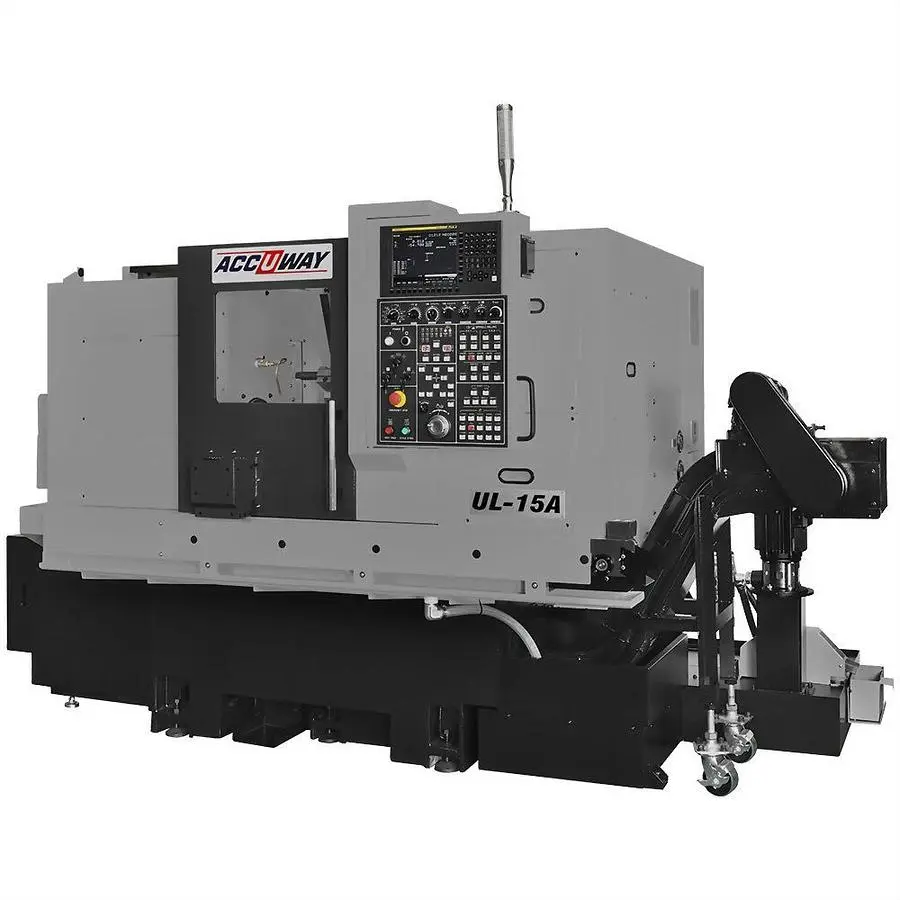

Two Turret Flat Bed CNC Turning Center
Controller: FANUC 0i-TF
Swing over bed: mm 455
Swing over saddle: mm 260
Max. turning diameter: mm 260
Max. turning length: mm 250
Spindle nose taper: ASA A2-5
Chuck: CK42 Collet Chuck
Bar capacity: mm 44
Spindle speed: rpm 6000
Spindle motor power(Cont. / 30min): kW 11/15
X1/X2-axis travel: mm 175/260
Z1/Z2-axis travel: mm 350/260
X1/X2-axis Rapid Traverse Rate: m/min 20/12
Z1/Z2-axis Rapid Traverse Rate: m/min 20/12

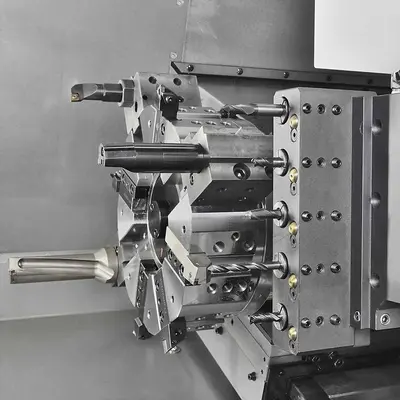

Tooling system: BOT+ Gang type
Turret driven type: Hydraulic
Number of tools: station 8+5
Square tool shank size(T1): mm 25
Round tool shank size(T1/T2): mm 32/25
Machine dimension L x W x H: m 3.1 x 1.75 x 1.85
Net weight: kg 3000
