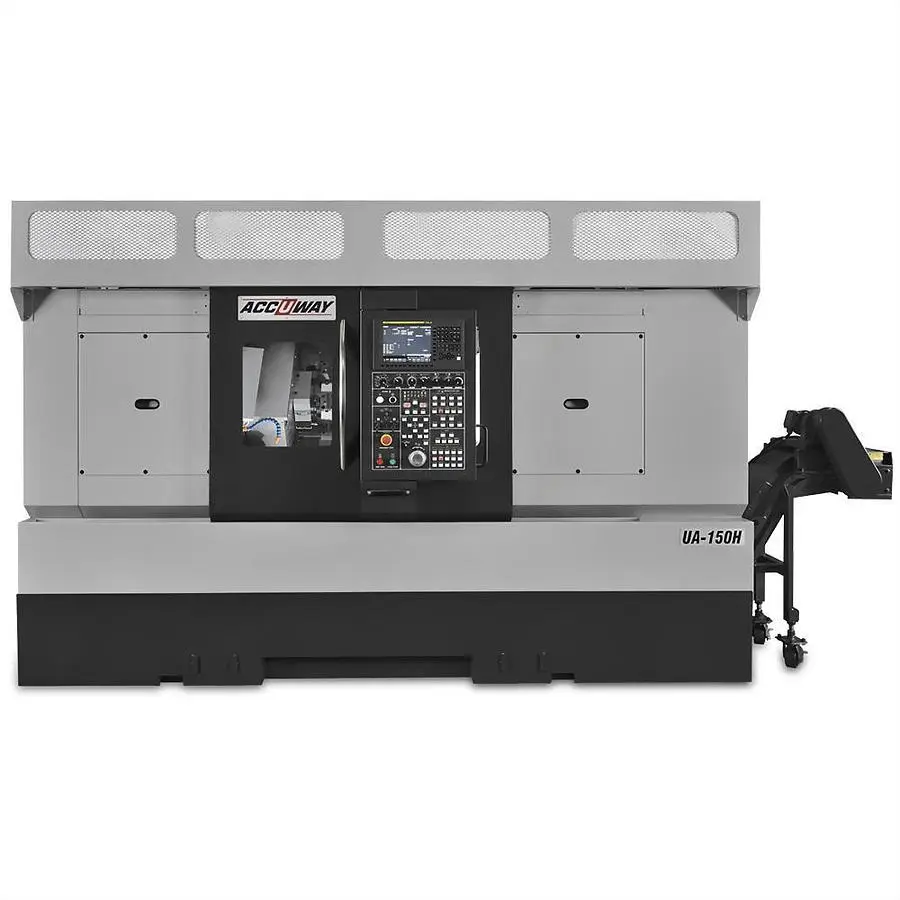

NEW ACCUWAY UA-150H

Multi-axis Slant Bed Turning Center

Controller: FANUC 0i-TF
Swing over bed: mm 600
Swing over saddle: mm 260
Max. Turning Diameter (SP1): mm 250
Max. Turning Diameter (SP2): mm 250
Max. turning length: mm 240
Guide way type: Box
Spindle Nose: ASA A2-6
Chuck Diameter: inch 6
Bar Capacity: mm 52
Spindle Speed: rpm 4500
Spindle Motor Power(Cont. /30min): kW 7.5/11
X1/X2 axis Travel: mm 220
Z1/Z2 axis Travel: mm 350
B-axis Travel: mm 900
X-axis Rapid Traverse Rate: m/min 20
Z-axis Rapid Traverse Rate: m/min 24
B-axis Rapid Traverse Rate: m/min 20

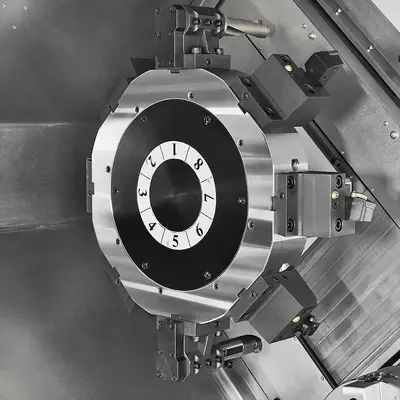

Tooling system: BMT-55N Servo
Turret driven type: Servo mechanical
Number of tools: station 12+12
Square tool shank size: mm 25
Round tool shank size: mm 32
Machine dimension L x W xH: m 3.9 x 2.1 x1.9
Net weight: kg 8000
