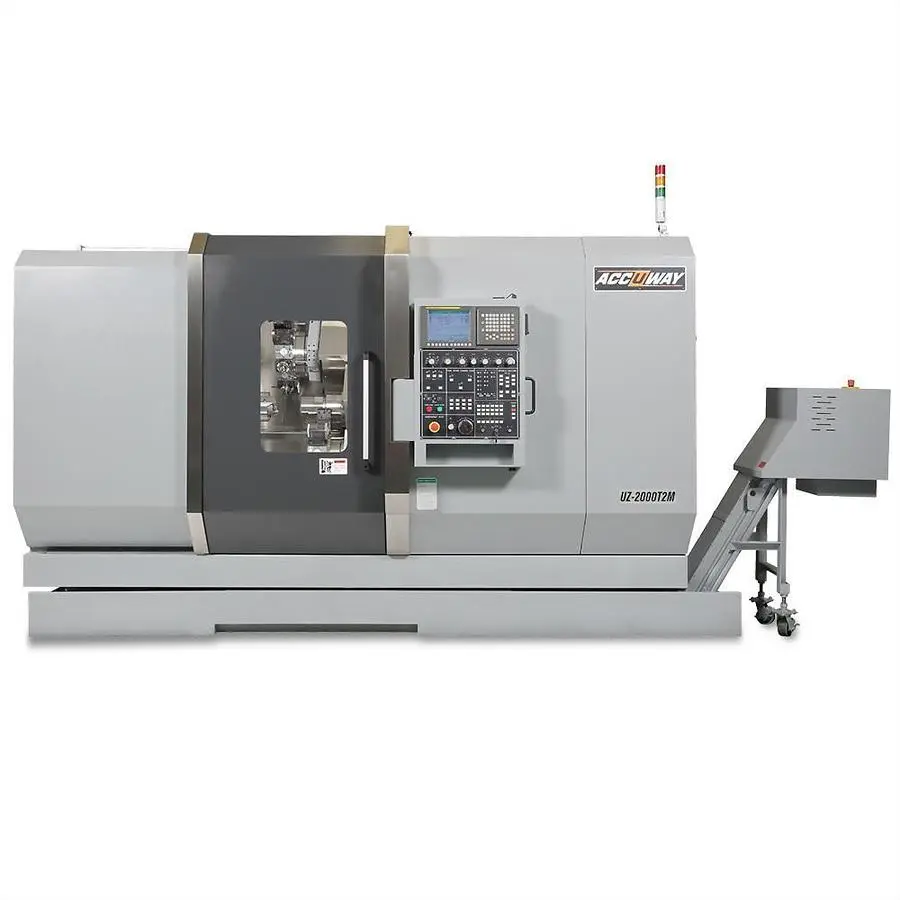

Multi-axis Complex Turning-milling Center
Controller: FANUC 0i-T
Swing over bed: mm 660
Swing over saddle: mm 620
Max. Turning Diameter (SP1): mm 320
Max. Turning Diameter (SP2): mm 320
Max. turning length: mm 790
Guide way type: Linear + Box
Spindle Nose: ASA A2-5 A2-6
Chuck Diameter: inch 6 8
Bar Capacity: mm 52 65
Spindle Speed: rpm 5000(Built-in) 4500(Built-in)
Spindle Motor Power(Cont. /30min): kW 11/15
X1/X2 axis Travel: mm 210
Z1/Z2 axis Travel: mm 840
B-axis Travel: mm 920
X1/X2 axis Rapid Traverse Rate: m/min 30
Z1/Z2 axis Rapid Traverse Rate: m/min 40
B-axis Rapid Traverse Rate: m/min 40
Tooling system: BMT-40
Turret driven type: Servo mechanical
Number of tools: station 16+16
Square tool shank size: mm 20
Round tool shank size: mm 32
Max. Rotary Tool Speed: rpm 6000
Rotary Tool power: kW 3.7/5.5
Machine dimension L x W xH: m 4.7 x 2.4 x 2.4
Net weight: kg 10500
