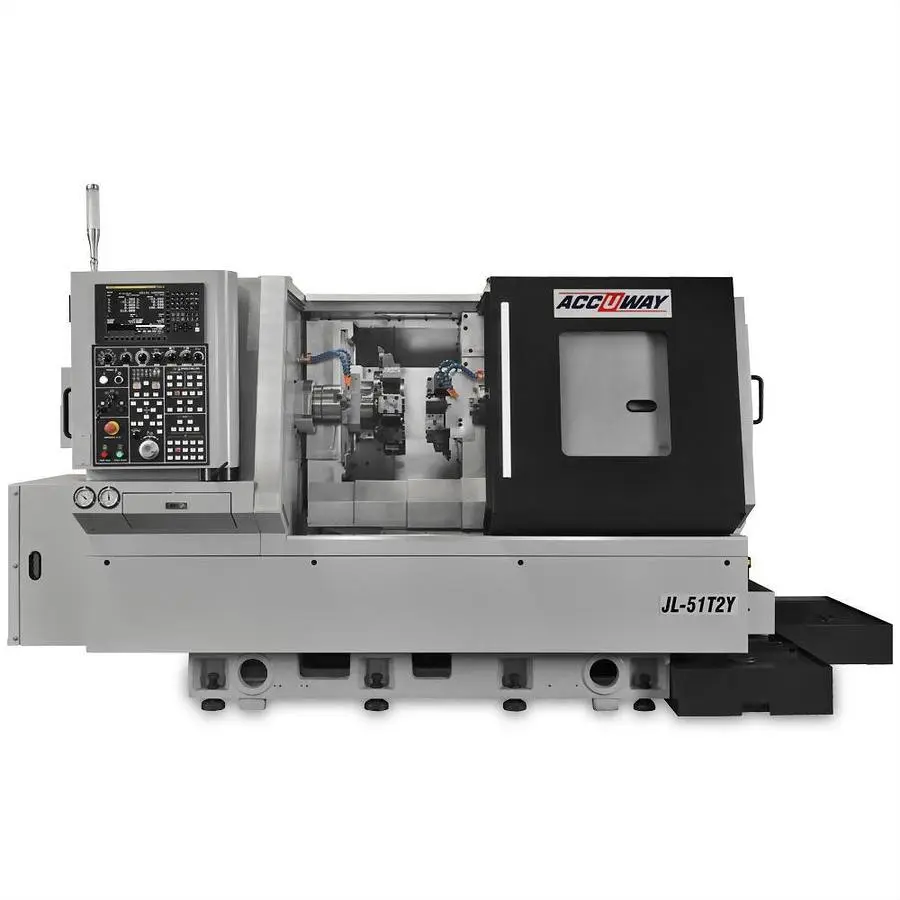

NEW ACCUWAY JL-51T2Y

Fixed Headstock Type CNC Automatic Lathe

STANDARD ACCESSORIES
FANUC 0i-T controller
RJ-45 interface
Rigid tapping
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
4-bar coolant system
Lubrication system
Three-color warning light

OPTIONAL ACCESSORIES
Unloader & conveyor for finished parts
Upgrade to 15" Colored LCD monitor
Collet chuck
Tool setter
Bar feeder interface (7 or 24 pins)
Bar feeder
Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet
Transformer
CE version
Loader interface
Gantry loader system
Automatic door
Axial rotary tool holder
Radial rotary tool holder
Linear scale

Controller: FANUC 0i-T
Max. Turning Diameter(SP1): mm 160
Max. Turning Diameter(SP2): mm 100
Max. turning length: mm 170
Guide way type: Linear + Box
Spindle Nose: ASA A2-5
Chuck Diameter: inch 6 8
Bar Capacity: mm 44
Spindle Speed: rpm 6000
Spindle Motor Power(Cont. /30min): kW 7.5/11
X1/X2 axis Travel: mm 165/85
Z1/Z2 axis Travel: mm 220/590
Y-axis Travel: mm ±40
X1/X2 axis Rapid Traverse Rate: m/min 20
Z1/Z2 axis Rapid Traverse Rate: m/min 30
Y-axis Rapid Traverse Rate: m/min 12
Tooling system: BMT-55N power+servo
Number of tools: station 12+8
Square tool shank size: mm 25
Round tool shank size: mm 32
Max. Rotary Tool Speed: rpm 6000
Rotary Tool power: kW 2.2/3.7
Machine dimension L x W xH: m 2.9 x 1.8 x 1.7
Net weight: kg 6500
