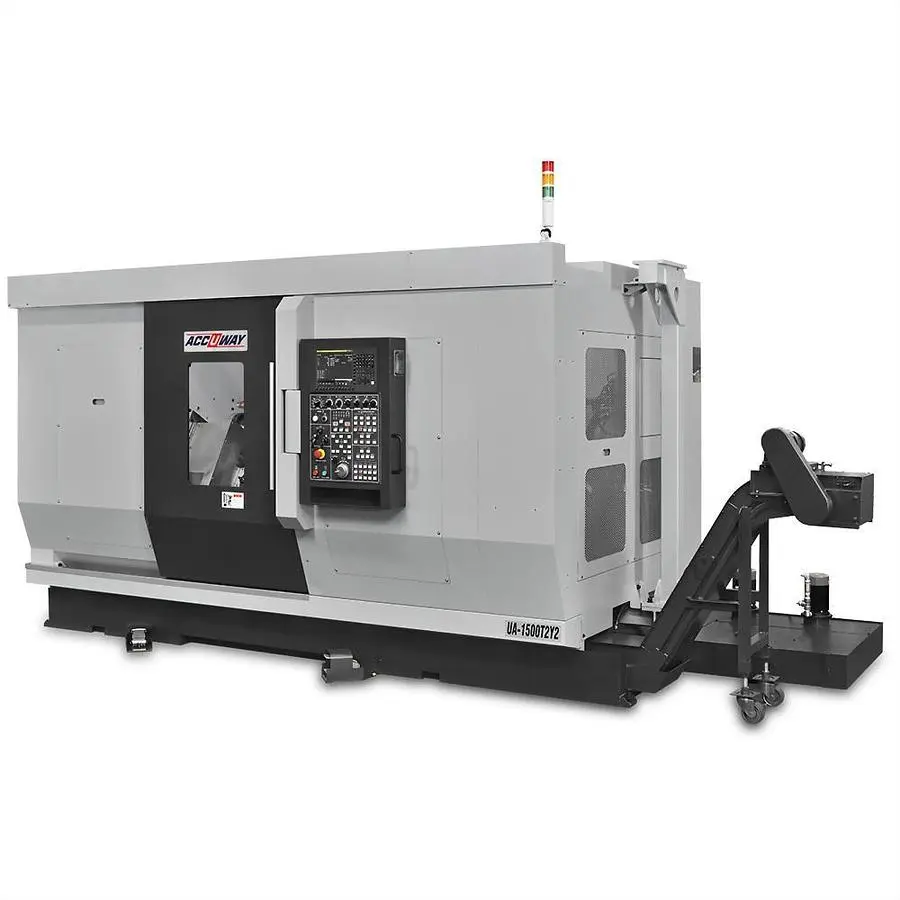

NEW ACCUWAY UA-1500T2Y2

Multi-axis Complex Turning-milling Center

Controller: FANUC 0i-T
Swing over bed: mm 460
Swing over saddle: mm 400
Max. Turning Diameter (SP1): mm 200
Max. Turning Diameter (SP2): mm 200
Max. turning length: mm 500
Guide way type: Linear + Box
Spindle Nose: ASA A2-6
Chuck Diameter: inch 6 8
Bar Capacity: mm 52
Spindle Speed: rpm 4500
Spindle Motor Power(Cont. /30min): kW 7.5/11
X1/X2 axis Travel: mm 170
Z1/Z2 axis Travel: mm 570
Y1/Y2 axis Travel: mm ±50
B-axis Travel: mm 650
X1/X2 axis Rapid Traverse Rate: m/min 20
Z1/Z2 axis Rapid Traverse Rate: m/min 36
Y1/Y2 axis Rapid Traverse Rate: m/min 10
B-axis Rapid Traverse Rate: m/min 40
Tooling system: BMT-55N
Turret driven type: Servo mechanical
Number of tools: station 15+15
Square tool shank size: mm 20(25)
Round tool shank size: mm 25(32)
Max. Rotary Tool Speed: rpm 6000
Rotary Tool power: kW 3.7/5.5
Machine dimension L x W x H: m 4 x 2.4 x 2.4
Net weight: kg 10500
