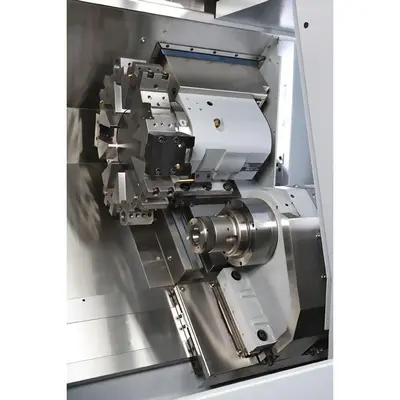

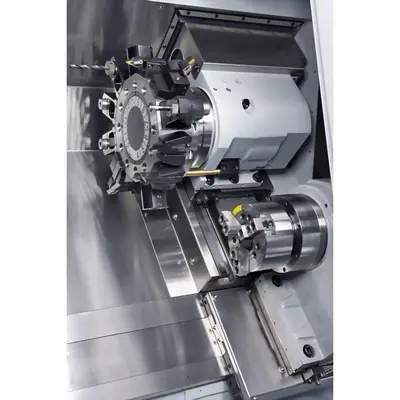

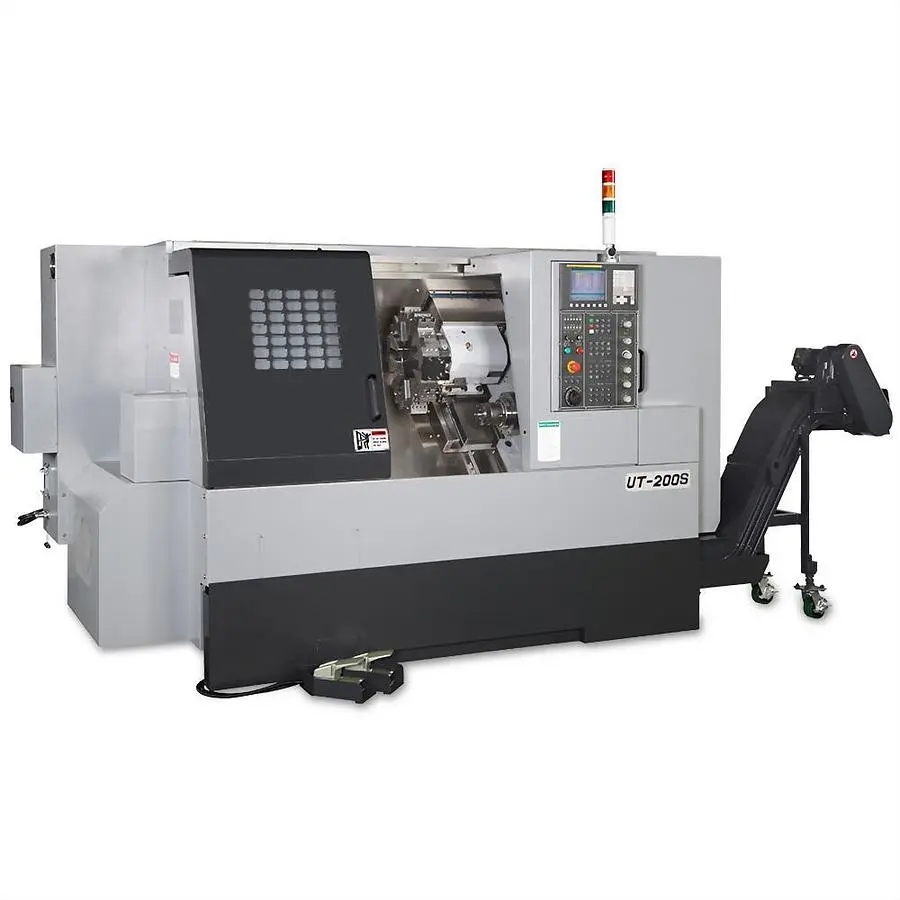

NEW ACCUWAY UT-200S UT-200SM

Slant Bed Turning Center

STANDARD ACCESSORIES
FANUC 0i-T controller
RJ-45 interface
Rigid tapping
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Lubrication system
4-bar coolant system
Three-color warning light

OPTIONAL ACCESSORIES
Upgrade to 15" Colored LCD monitor
Collect chuck
Tool setter
Parts catcher and parts conveyor
Bar feeder interface (7 or 24 pins)
Bar feeder
Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet
Transformer
CE version
Linear scale
0 degree rotary tool holder(UT-200SM)
90 degree rotary tool holder(UT-200SM)

Controller: FANUC 0i-T
Swing over bed: mm 505 570
Swing over saddle: mm 318 378
Max. turning diameter(SP1): mm 250 250
Max. turning diameter(SP2): mm 220 220
Max. turning length: mm 480 400 440 370
Guide way type: Box
Spindle nose taper: ASA A2-5 A2-5
Chuck diameter: inch 6 8 6 8
Bar capacity: mm 44 44
Spindle speed: rpm 6000 5000 6000 5000
Spindle motor power(Cont. / 30min): kW 5.5/7.5 5.5/7.5
X-axis Travel: mm 220 220
Z-axis Travel: mm 600 600
B-axis Travel: mm 585 585
X-axis Rapid Traverse Rate: m/min 20 20
Z-axis Rapid Traverse Rate: m/min 20 20
B-axis Rapid Traverse Rate: m/min 20 20
Tooling system: BOT BMT/VDI
Turret driven type: Hydraulic/Servo Servo mechanical
Number of tools: station 12 12
Square tool shank size: mm 20 20
Round tool shank size: mm 32 32
Machine dimension L x W x H: m 3.2 x 1.6 x 1.8 3.2 x 1.6 x 1.8
Net weight: kg 4000 4000
