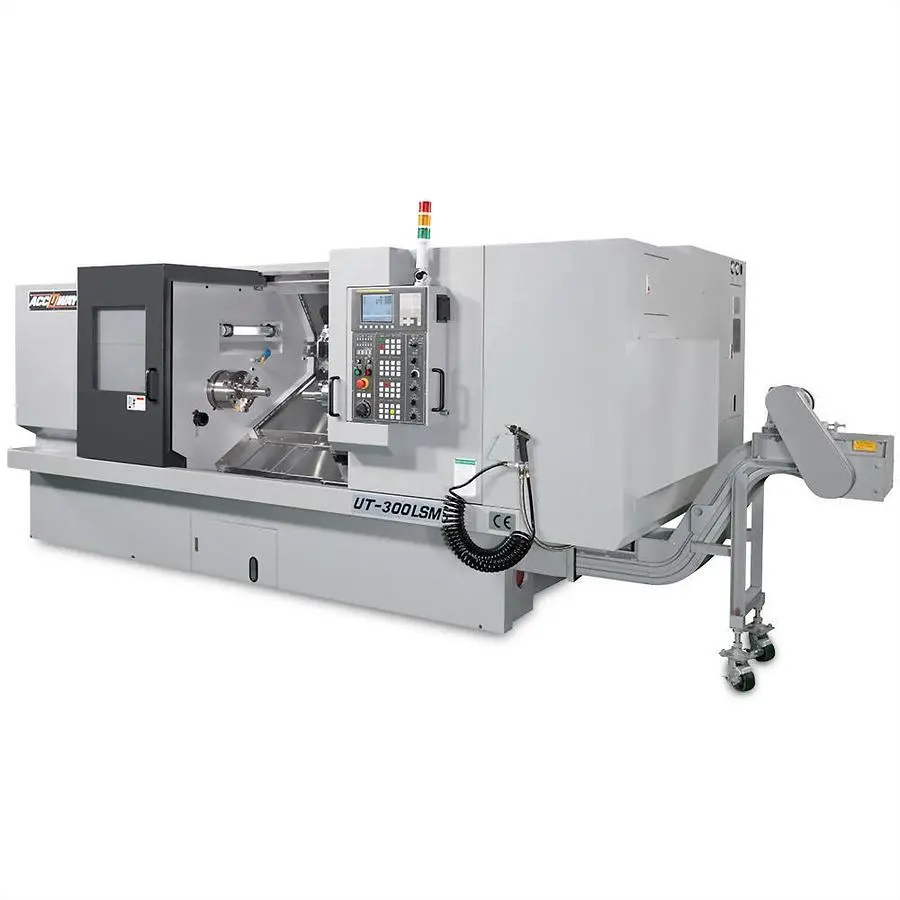

NEW ACCUWAY UT-300LS UT-300LSM

new

Welcome to Equipt
Log in or Sign up
Your Cart
You don't have any items in your cart.
NEW ACCUWAY UT-300LS UT-300LSM
  • NEW ACCUWAY UT-300LS UT-300LSM
  • NEW ACCUWAY UT-300LS UT-300LSM
  • NEW ACCUWAY UT-300LS UT-300LSM
  • NEW ACCUWAY UT-300LS UT-300LSM

NEW ACCUWAY UT-300LS UT-300LSM

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
CNC Lathes
Manufacturer:
ACCUWAY
Model:
UT-300LS UT-300LSM
Stock #:
8142194
Description

Slant Bed Turning Center

STANDARD ACCESSORIES
FANUC 0i-T controller
RJ-45 interface
Rigid tapping
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Lubrication system
4-bar coolant system
Three-color warning light

OPTIONAL ACCESSORIES
Upgrade to 15" Colored LCD monitor
Collect chuck
Tool setter
Parts catcher and parts conveyor
Bar feeder interface (7 or 24 pins)
Bar feeder
Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet
Gear box
Transformer
CE version
Linear scale
0 degree rotary tool holder(UT-300LSM)
90 degree rotary tool holder(UT-300LSM)

Specifications

Controller: FANUC 0i-T
Swing over bed: mm 612 700
Swing over saddle: mm 400 500
Max. turning diameter(SP1): mm 500 480
Max. turning diameter(SP2): mm 400 375
Max. turning length: mm 1110 1040 1040 970
Guide way type: Box
Spindle nose taper: ASA A2-5 A2-5
Chuck diameter: inch 6 8 6 8
Bar capacity: mm 44 44
Spindle speed: rpm 6000 5000 6000 5000
Spindle motor power(Cont. / 30min): kW 5.5/7.5
X-axis Travel: mm 300 275
Z-axis Travel: mm 1250 1250
B-axis Travel: mm 1200 1200
X-axis Rapid Traverse Rate: m/min 20 20
Z-axis Rapid Traverse Rate: m/min 24 24
B-axis Rapid Traverse Rate: m/min 20 20
Tooling system: BOT BMT-65
Turret driven type: Hydraulic Servo mechanical
Number of tools: station 12 12
Square tool shank size: mm 25 25
Round tool shank size: mm 400 40
Machine dimension L x W x H: m 4 x 1.8 x 1.9 3.9 x 1.8 x 1.9
Net weight: kg 6200 6200
