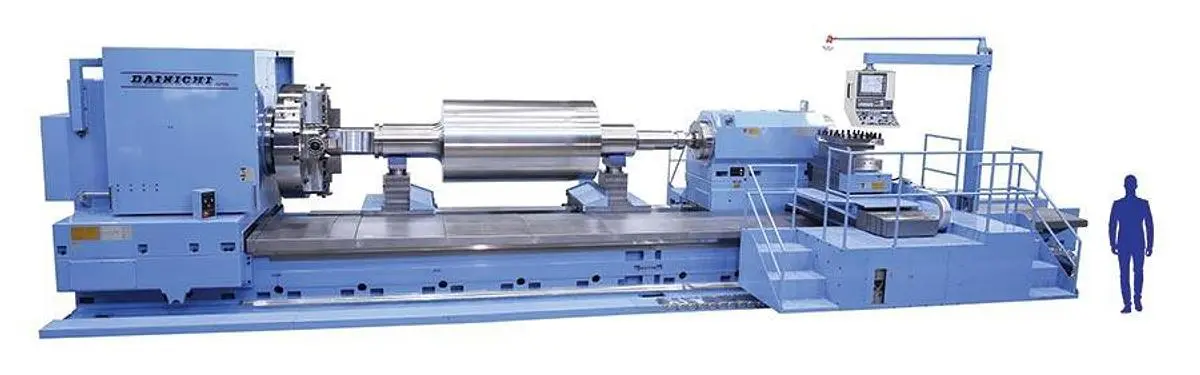

Dainichi’s DRNC Series Roll Lathes have set the standards and raised the bar; strong enough to handle the largest rolls, with the rigidity to accurately machine the longest shaft. Equipped with Dainichi’s original and revolutionary tooling system, the DRNC 80/100 models significantly outperform conventional lathes using formed tools. Each of the Dainichi DRNC Series models provides a proven and total solution for roll turning.

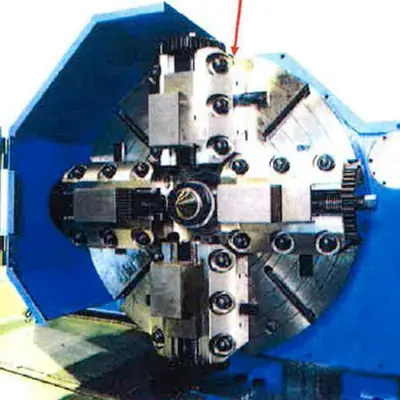

Special Chuck

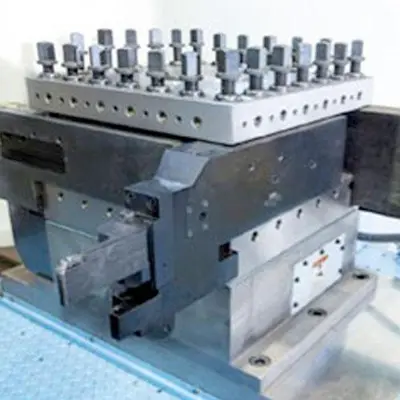

Special Turret

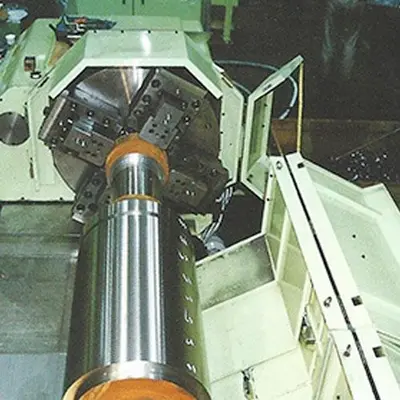

DR80 / Roll Manufacturing

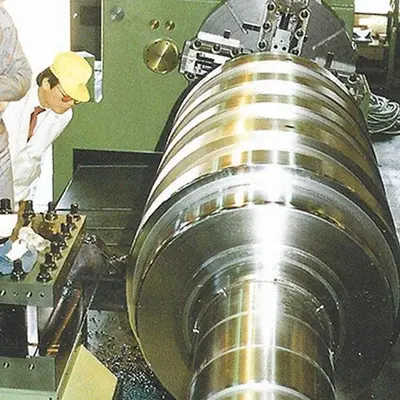

DR80 / Wet Turning Technology

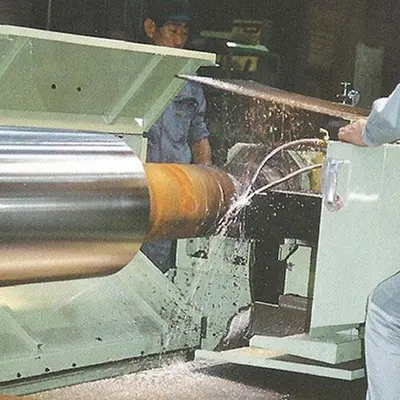

DR100 / Deep Rolling Pass Process
Swing over Bed: 35" 47"
Swing over Carriage: 32" 39"
Distance between Centers: 79" - 197" 79" - 197"
Max. Supporting Capacity: 22,000 lbs 35,200 - 110,000 lbs
Main Drive Motor: 50/60 hp 60/74 hp
Spindle Speed: 1~224 rpm 1~280 rpm
