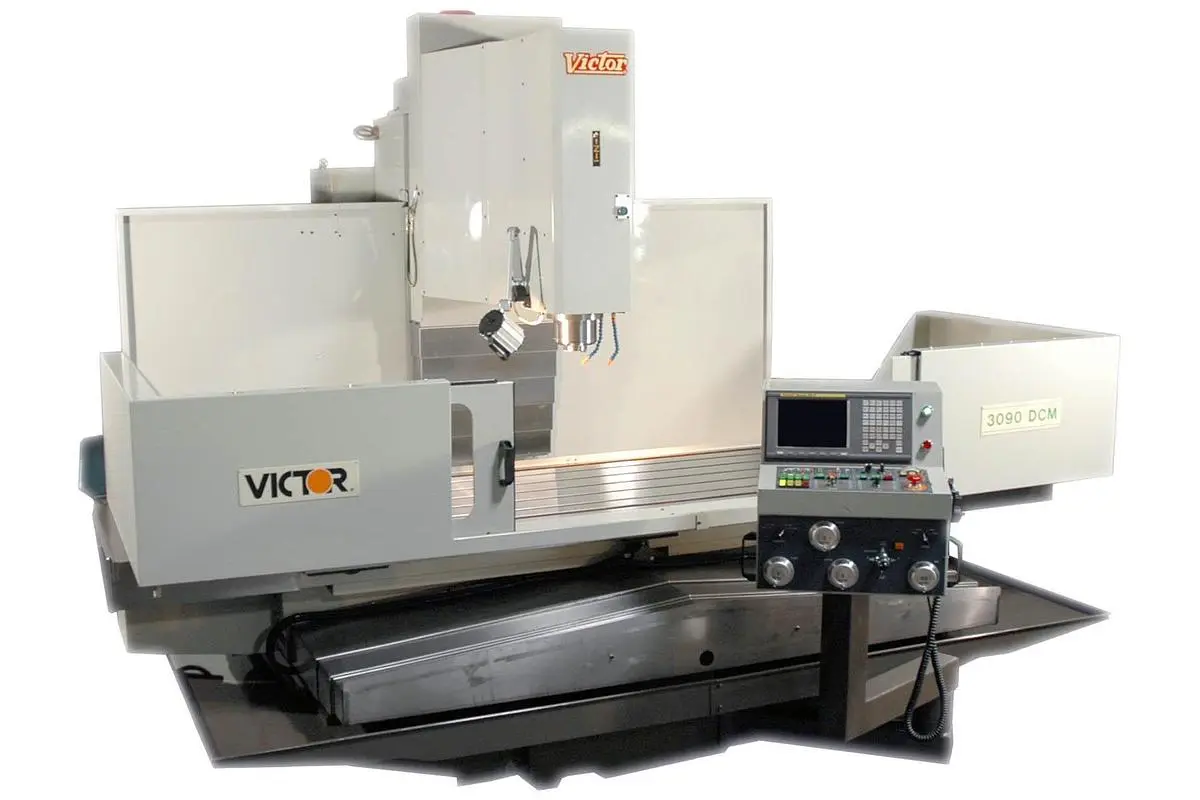

A highly reliability 3-axis Vertical Machining Center with advanceddigital servo technology, user friendly operation and simple operationprogramming support tool.
FEATURES:
Fanuc Oi-MD CNC controller
Main machine body is made from rugged Meehanite casting for excellent vibration damping and heavy workloads
Heavy duty box way construction
Double wall working table and rigid saddle structure provide unsurpassed rigidity
Both side of the saddle are coated with TURCITE B for smooth traversing, reducing friction and wear resistance
The saddle, slideway and table are hardened and precision ground to ensure long life
Automaticlubrication system for all ballscrews and sliding ways to keep highprecision of the machine - X and Y axes with 20 lube points and Z-axiswith 13 lube points
X and Y axes slideway and ballscrew are protected by telescopic steel shield to keep chips out
Z-axis ballscrew is covered by conical spring cover to protect against chips and dust
High accuracy C-5 grade ballscrews on X, Y and Z axes to ensure backlash-free transmission
High rigidity one-piece CNC spindle head
Precision P4 spindle bearing
Counter balanced spindle head
Built-in coolant system
Optional 24 tools carousel type or arm type automatic tool changer (ATC)
STANDARD ACCESSORIES:
Servo spindle motor
One remote pendant handwheel
Table chip guard with dual sliding doors
Bottom coolant and chip tray
Dual rear splash shields
Telescopic steel way covers on X and Y axes
Conical spring cover on Z-axis ballscrew
Air power drawbar
Halogen work light
Built-in auto lubrication system
Built-in flood coolant system
Type: Digital Control Mill
CNC controller: Fanuc Oi-MD
Number of electronic handwheels: One remove pendant handwheel
X-axis travel: 78.75"
Y-axis travel: 35"
Z-axis travel: 28"
Spindle nose to table surface: 3" ~ 32"
Spindle center to column distance: 35"
Table size: 92" x 30"
T-slot width: 0.71"
Number of T-slots: 5
Max. weight: 3,960 lb.
Max. speed: 8,000 rpm
Spindle taper: CAT 40 (CAT 50 optional)
Drive system: Direct drive
Spindle motor: 15 HP
X-axis rapid traverse: 400 ipm
Y-axis rapid traverse: 400 ipm
Z-axis rapid traverse: 300 ipm
ATC Type: Carousel (optional) Arm type (optional)
Capacity: 24
Servo motor: Fanuc A/C brushless servo motor
Amplifier system: Fanuc digital servo amplifier drives
X-axis servo motor torque: 188.5 in-lb.
Y-axis servo motor torque: 188.5 in-lb.
Z-axis servo motor torque: 188.5 in-lb.
Positioning: 0.0004"
Repeatability: 0.0002"
Electrical: 220V / 3 Phase
Shipping dimensions (LxWxH): 195" x 145" x 117"
Net weight: 16,940 lb.
Gross weight: 17,380 lb.
