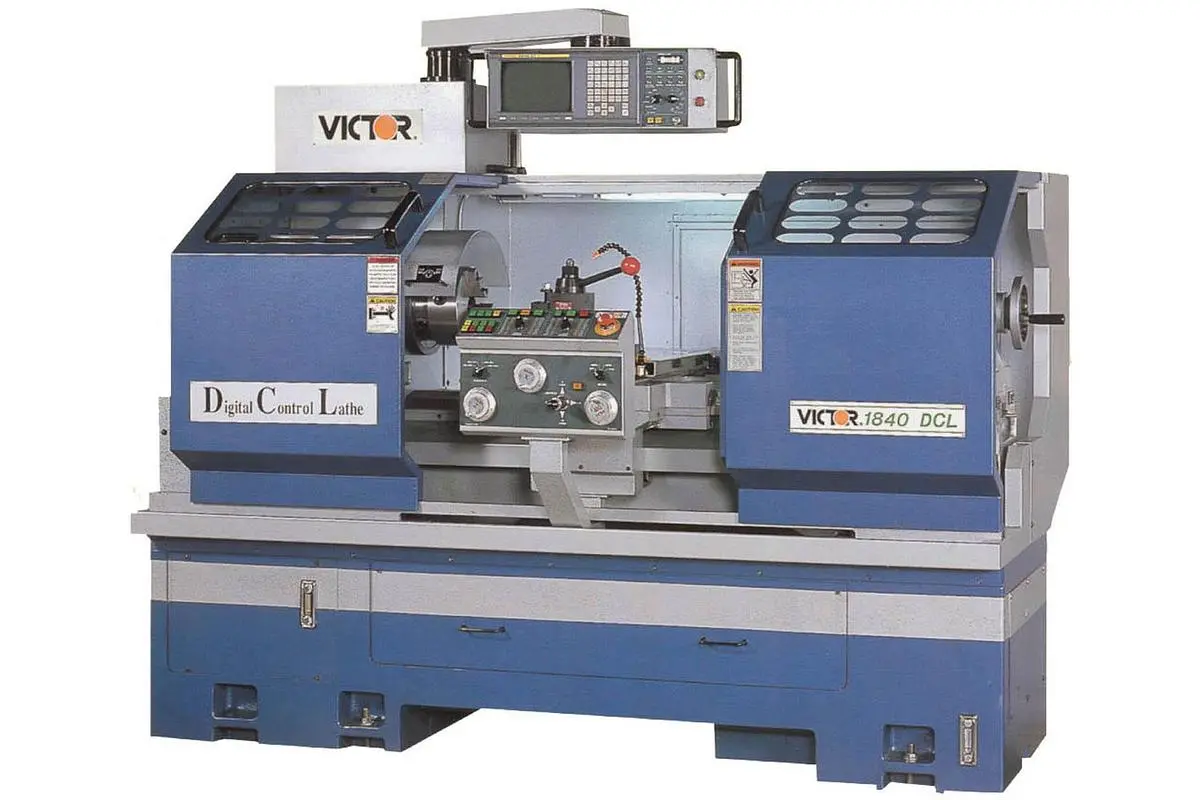

NEW VICTOR MACHINES 1840DCL 1860DCL

FEATURES:
Fanuc 0i Mate-T CNC control system
Fanuc AC Digital Servo System with high resolution absolute encoders
8.4" color LCD display
Built-in flash memory slot for file transfer and data storage
Fanuc industry standard G-code
CNC assisted manual machining
Manual Guide 0i Conversational Adaptive Programming (C.A.P.)
Full CNC automatic operation
Tool radius and geometry operation
CNC controlled spindle
Constant surface speed (vector control)
Two (2) electronic handwheels
Main casting pieces are by massive Meehanite castings for superior dampening and rigidity
Headstock gears are made from Chromium Molybdenum steel (SCM21), hardened by carbonization, and precisely ground to provide smooth and quiet running
Forced lubrication of headstock gears
Spindle is supported by 3 precision bearings to insure accuracy and rigidity during heavy cutting
High precision ballscrew to ensure backlash-free transmission
Hardened and precision ground bedways
Ribbed bed constructed from an annealed processed casting insures no deformation occurs on the slideways
Turcite B coating on slideways to provide wear resistance
Auto lubrication system on all slideways and ballscrews
Front chip tray with pull out handles
Built-in coolant system
Hardware over travel limit switch for all travel directions and tailstock to prevent accidental crash

Ultra-compact CNC integrated with 8.4" color LCD display
Built-in compact flash memory slot
Rear enclosure with dual sliding doors
Automatic lubrication system
Two (2) MPG electronic handwheels
Constant surface speed (CSS)
High resolution absolute encoders
High visibility fluorescent work light
Run-time / parts counter
Built-in coolant system
Tool nose radius and ballscrew pitch error compensation
Aloris super precision tool post, CA series (1" tool shank)

Type: Digital Control Lathe
Swing over bed: 18.1"
Swing over cross slide: 9.4"
Bed width: 13.78"
Distance between centers: 40" 60"
Tool post shank: 1" x 1"
Spindle bore diameter: 2.05"
Spindle bore taper: M.T. 6
Spindle nose: D1-6 (A1-6 optional)
Spindle speeds (Gear 1): 50 ~ 130 rpm
Spindle speeds (Gear 2): 131 ~ 340 rpm
Spindle speeds (Gear 3): 341 ~ 960 rpm
Spindle speeds (Gear 4): 961 ~ 2,500 rpm
CNC controller: Fanuc 0i Mate-T
Number of electronic handwheels: 2 Handwheels
Servo motor: FANUC A/C brushless servo motor
Amplifier system: FANUC digital servo amplifier drives
Servo motor torque (X / Z axis): 51.4 in-lb. / 51.4 in-lb.
Cross slide travel (X-axis): 11.02"
Longitudinal travel (Z-axis): 35.2" 55.7"
Rapid traverse (X / Z axis): 200 ipm / 300 ipm
Tailstock taper center: M.T. 4
Tailstock quill diameter: 2.5"
Tailstock quill travel: 5.91"
Spindle motor: AC 10 HP
Voltage: 220V / 3 Phase
Positioning (inch): 0.0004"
Repeatability (inch): 0.0002"
Shipping dimensions (LxWxH): 98"x73"x85" 114"x73"x85"
Gross weight: 5,280 lb. 5,940 lb.
