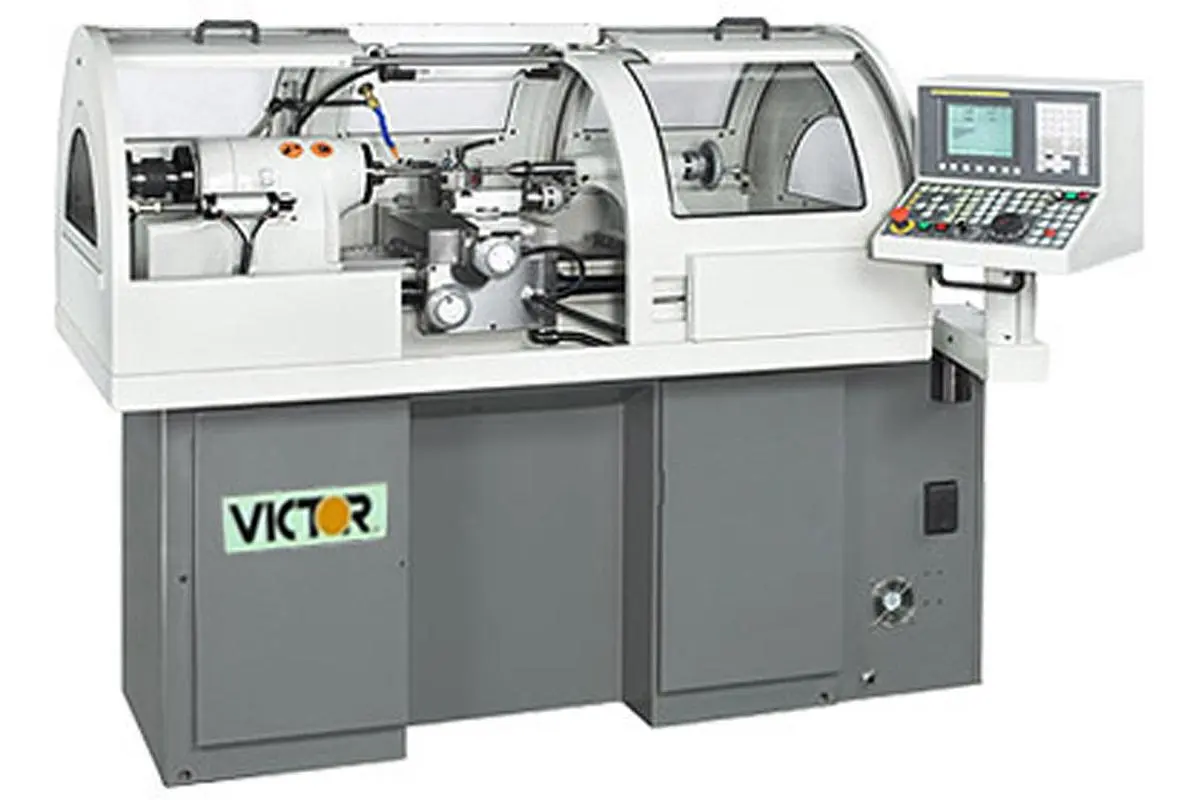

NEW VICTOR MACHINES 1118DCL

A powerful multi-function super precision CNC toolroom lathe comes with a smooth 3 HP inverter spindle motor that runs virtually vibration free and extremely quite.
Fanuc Oi Mate T ultra-compact CNC integrated with LCD display plus Manual Guide
Spindle runout within 50 millionths
Main casting pieces are by Meehanite castings for superior dampening and rigidity
High precision ballscrew on X, Z-axis
X, Z-axis feed is driven by an AC servo motor
X, Z-axis ballscrews directly coupled to AC servo motor, minimizing backlash
Hardened and ground bedways
Hardened and ground spindle mounted on high precision preloaded angular contact ball bearings
Turcite-B slideway bearing surface between carriage and bed to provide wear resistance

STANDARD ACCESSORIES:
Hand lever type 5C collet closer
Manual rigid tailstock with inch/metric graduations
Coolant system
Work light
OPTIONAL ACCESSORIES:


      Air operated 5C collet closer

Type: Digital Control Lathe
CNC controller: Fanuc 0i Mate T
With jaw chucks: 6"
With expanding collets: 3"
With round 5C collets: 1-1/16"
With hexagon 5C collets: 7/8"
With square 5C collets: 3/4"
With step chucks: 1-1/16" to 6"
Spindle nose I.D. / O.D.: 5C / 4° taper
Hole through spindle: 1-1/4"
Variable spindle speeds: 50 ~ 4,000 rpm (3 HP) 50 ~ 6,000 rpm (5 HP optional)
Maximum swing: 14.96"
Maximum turning diameter: 6"
Distance between centers: 18"
Quick-action compound slide travel: 0.1"
Maximum cross slide travel (X-axis): 8.66"
Maximum longitudinal travel (Z-axis): 13.39"
Rapid traverse (X / Z axis): 787 ipm
Tailstock taper center: M.T. 2
Tailstock quill diameter: 1.36"
Tailstock quill travel: 3-3/4"
Inverter spindle motor: 3 HP (5 HP optional)
X / Z-axis servo motor: X : ß2 / Z : ß2
Coolant pump motor: 1/4 HP
Voltage: 220V / 3 Phase
Shipping dimensions (LxWxH): 87"x44"x85"
Gross weight: 2,860 lb.
