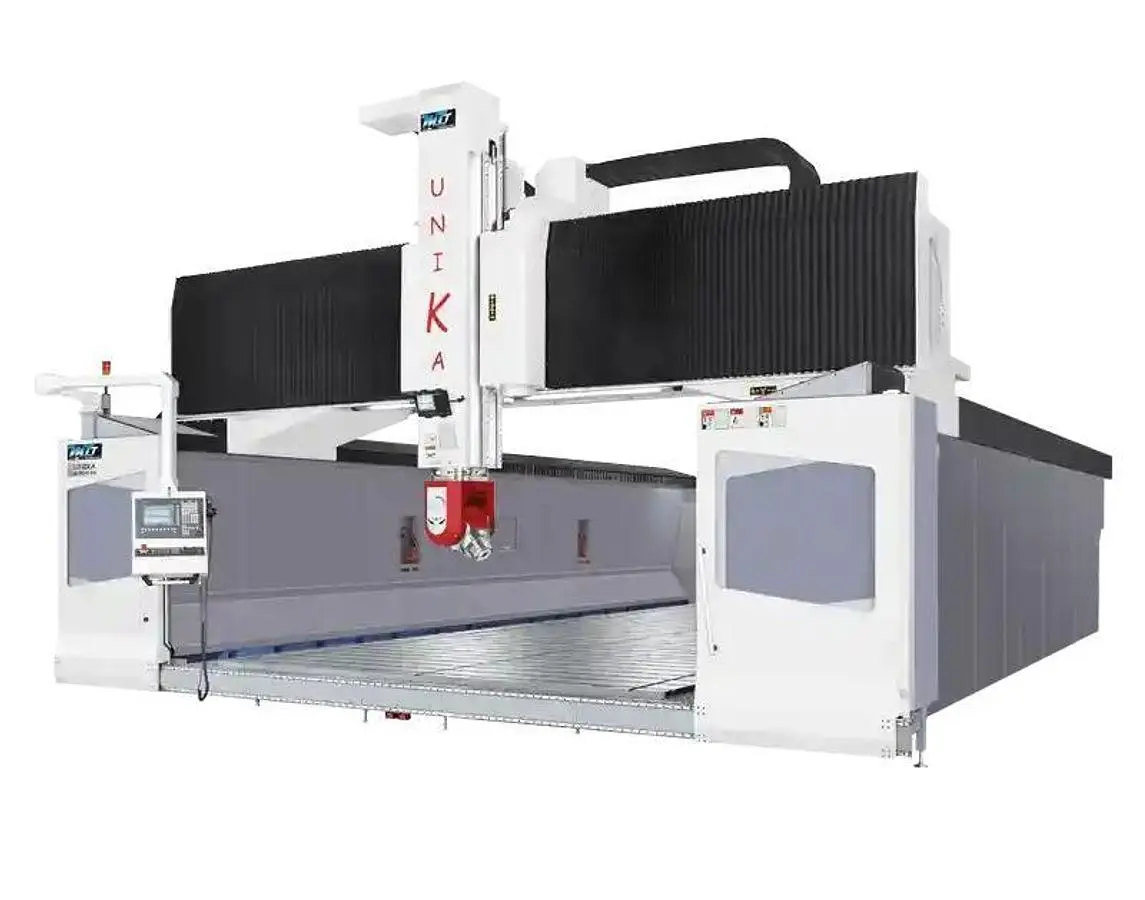

NEW TWINHORN UNIT UNIKA 5A

ㆍAerospace, structural components, high speed and high torque machining Aerospace molds, fixture, jigs
ㆍComposite material (CFRP) machining
ㆍAluminum alloy structural parts, high speed machining with efficient material removal rate
ㆍAutomotive stamping die, plastic injection mold
ㆍShipbuilding Industry
ㆍGreen energy industry
As a leading manufacturer in the industry, we specialize in designing and manufacturing advanced 5 axis machining solutions. Our commitment to precision and innovation is evident in every aspect of our machines, from the structural design to the advanced technology incorporated.
ㆍHigh rigidity linear guide way: Rigid, accurate and smooth running guide ways ensure great static and dynamic loading capacity.
ㆍLarge sliding block: Enlarged sliding blocks guarantee exceleent linear accuracy and durable service life.
ㆍDual servo motor for each power package: Rack and Pinion transmission is adopted when X-axis travel exceeds 5000 mm or when Y-axis travel exceeds 3500 mm.
ㆍThe X-axis and Y-axis are driven by 4 and 2 servo motors respectively.
ㆍElectrically pre-loaded drive train eliminates backlash.
ㆍRack and pinion transmission paired with specialized cleaning and lubri cating system.

Standard Accessories
Carousel type 24T ATC (Servo-driven magazine)
Coolant system
Automatic lubrication system
LED work lamp
Tool box with adjust tools
Fully surrounded type splash guard
Spindle air blast
Work air blast
RS-232 interface
Rigid tapping
Spindle oil cooler
Leveling bolts and pads
Automatic power off (M30)
Air conditioner type heat exchanger for elect. cabinet
Air gun & coolant gun
Dual chip conveyors along X-ax
Chain type chip conveyor with cart
Optical scales for 3 axes
Ring-type encoders for A/C axes

Optional Accessories
Built-in spindle 15,000 rpm
Oil skimmer
Coolant through spindle system,  20 / 30 / 50 / 70 bar
Automatic tool length measuring device
Automatic workpiece measuring device
Oil mist collection unit
Rotating & tilting center point calibration kit
Transformer
CE regulation
TS regulation
Finned crankcase type way cover along X-ax
TT2S dual spindle head (vert./hori.), #50, gear-driven 4000rpm (5-Sided)
TT2i universal head, #50, gear-driven 5000rpm (5-Sided)
TTFG1 fork type milling head, #50, gear-driven 4000rpm (5-Sided)

Controller Options
Fanuc 31i MB5
Siemens ONE
Heidenhain TNC7
Fagor 8065 Power

X Axis: mm 2,000 or above (+1,000) ~ 10,000
Y Axis (Vertical/Horizontal): mm 2,000 or above (+500) ~ 4,000
Z Axis: mm 800 (Opt.: 1,000 / 1,200)
Distance Between Columns (DBC): mm 2,800 or above (+500) ~ 4,800
C Axis (Rotating): degree +/-200
Table Size (X Axis direction): mm 2,000 or above (+1,000) ~ 10,000
Table Size (Y Axis direction): mm 2,000 or above (+500) ~ 4,000
T-slot Configuration (Width/Pitch): mm 28 / 250
Max. Loading: kg/m2 2,500
Spindle Nose To Table Surface: mm 120~920 (Opt.: 120~1,120 / 120~1,320)
Spindle Driven Method: Built-in
Spindle Taper: HSK-A63
Spindle Motor Power: kW 35 / 49 (S1-Cont. / S6-40%)
Spindle Motor Torque: Nm 120 / 170 (S1-Cont. / S6-40%)
Spindle Speed: rpm 12,000 (Opt.: 15,000)
X,Y Axes Rapid Feed: m/min 20 (Opt.: 30)
Z Axis Rapid Feed: m/min 12 (Opt.: 30)
Cutting Feed: m/min 10
ATC Type: Carousel type with servo-driven magazine
Tool Number: T 24 (Opt.: 32 / 40)
Max. Tool Weight: kg 8
Max. Tool Diameter (With Adj. Tool/Without Adj. Tool): mm Φ75 / Φ120
Max. Tool Length: mm 300
X/Y/Z Axis Positioning: mm 0.02 or above (+0.005 per meter)
X/Y/Z Axis Repeatability: mm 0.015 or above (+0.005 per meter)
Required Air Pressure: kg/cm2 6
Machine Weight: kg 31,000 or above
Machine Dimension (WxDxH): mm 6,330 or above x 5,600 x 4,900
