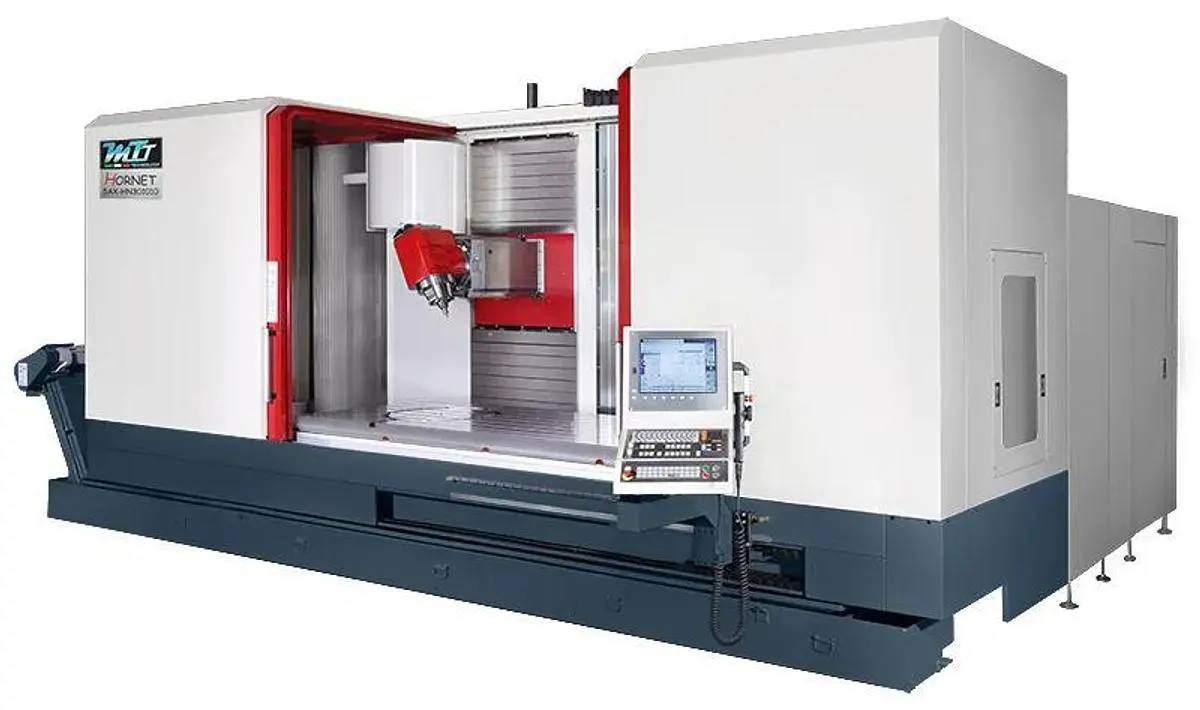

NEW TWINHORN UNIT HORNET

Finite Element Analysis (FEA)
FEA proven machine structure ensures execellent rigidity and stability, which enables accurate and relibable machining performance.
ㆍHigh Rigidity Structure:HORNET Series machine is optimized for structural rigidity and high dynamic performance. The Z-ax wagon adopts box frame structure and wide span roller rails, which ensures proper stability and excellent accuracy under high speed or heavy duty cuttings.
ㆍSwivel Head (B-axis):B-axis swivel head with C-axis rotary table enables single set-up for irregular curved surface or complex angle machining tasks, dramatically enhances the productivity.
ㆍRotary Table (C-axis):Maximum workpiece diameter of 640 mm and maximum loading capacity up to 1000 kg.
ㆍTransmission System:DD motor powered rotary axes provides excellent accuracy and high speed without backlash. Linear axes rapid speed up to 30 m/min.
ㆍDual Working Area:Dual-working-area concept allows flexible utilizations of working space. The set-up of the other work-piece can be done at one area while is on duty, and achieves maximum productivity.

Standard Accessories
Carousel type 32T ATC with servo-driven magazine
Coolant system
Automatic lubrication system
LED work lamp
Tool box with adjust tools
Fully enclosed type splash guard
Spindle air blast
Work air blast
RS-232 interface
Rigid tapping
Spindle oil cooler
Leveling bolts and pads
Automatic power off (M30)
Air conditioner type heat exchanger for elect. cabinet
Air gun & coolant gun
Chip auger behind the table
Chain type chip conveyor with cart
Optical scales for 3 axes
Ring-type encoders for B/C axes

Optional Accessories
Built-in spindle 15,000 rpm
Oil skimmer
Coolant through spindle system,  20 / 30 / 50 / 70 bar
Automatic tool length measuring device
Automatic workpiece measuring device
Oil mist collection unit
Rotating & tilting center point calibration kit
Transformer
CE regulation
TS regulation

Controller Options
Fanuc 31i MB5
Siemens ONE
Heidenhain TNC7
Fagor 8065 Power

X Axis: mm 3,000 or above (+1,000)
Y Axis: mm 1,000 (Opt.: 800)
Z Axis: mm 1,000 (Opt.: 800)
Swivel head B Axis (Tilting): degree +/- 95
Rotary table C Axis (Rotating): degree +/- 360 (Cont.)
Table Size: mm Φ640
T-slot Configuration (Width/No./Pitch): mm 18 H3 / 5 / 120
Max. Loading: kg/m2 1,000
Spindle Nose To Table Surface: mm 100~1,100 (Opt.: 100~900)
Spindle Driven Method: Built-in
Spindle Taper: HSK-A63
Spindle Motor: kW 35 / 49 (S1-Cont. / S6-40%)
Spindle Speed: rpm 12,000 (Opt.: 15,000)
X,Y Axes Rapid Feed: m/min 30
Z Axis Rapid Feed: m/min 30
Cutting Feed: m/min 10
ATC Type: Carousel type with servo-driven magazine
Tool Number: T 32 (Opt.: 40 / 48 / 60)
Max. Tool Weight: kg 8
Max. Tool Diameter (With Adj. Tool/Without Adj. Tool): mm Φ80 / Φ120
Max. Tool Length: mm 300
X/Y/Z Axis Positioning: mm 0.03 or above (+0.005 per meter)
X/Y/Z Axis Repeatability: mm 0.02 or above (+0.005 per meter)
Required Air Pressure: kg/cm2 6
Machine Weight: kg 25,000 or above
Machine Dimension (WxDxH): mm 7,650 or above x 4,150 x 3,320
