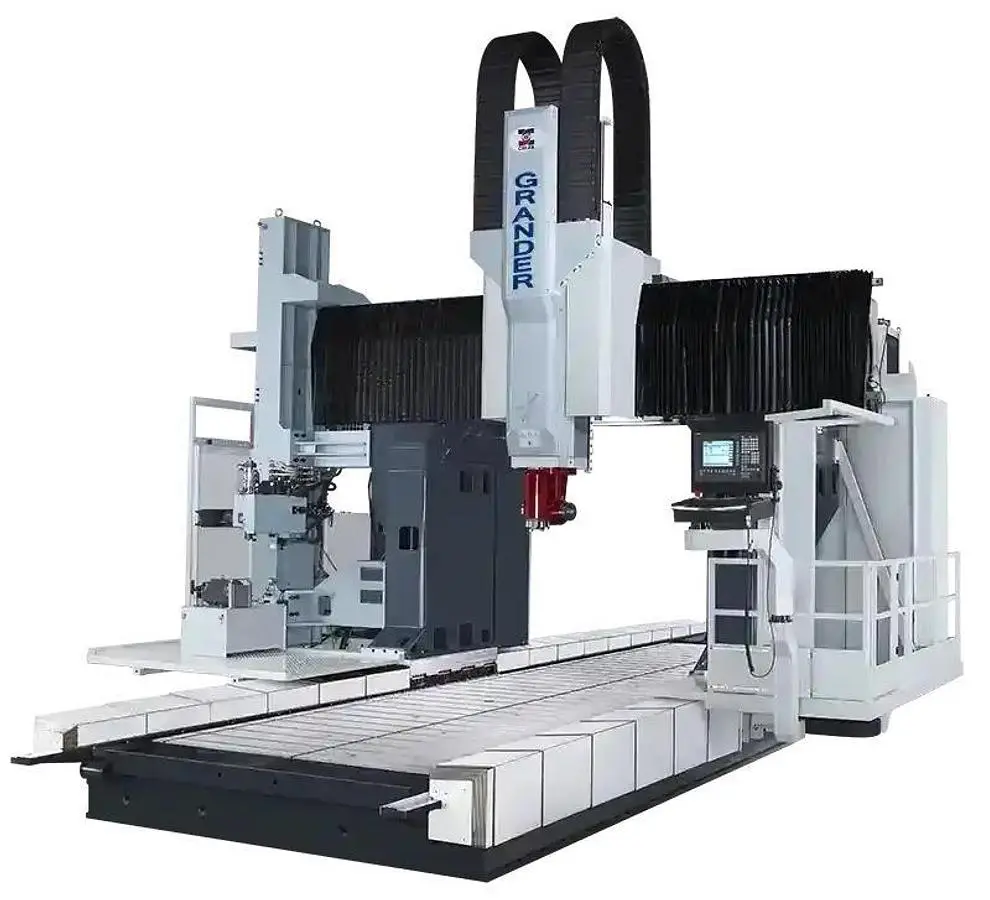

NEW TWINHORN UNIT GRANDER 5F

● C-axis rotation angle ± 190˚ and minimum movement unit 0.001˚
● The spindle head adopts dual spindle (vertical and horizontal) design and 45˚ universal head design, which can save time in replacing the head.
● Provide 2+3 axes for five-sided milling
As a leading manufacturer, we specialize in designing and manufacturing high-quality moving column solutions. Our commitment to precision and innovation is evident in every aspect of our machines, from the structural design to the advanced technology incorporated.
● The Italian original factory participates in the entire design and manufacturing process of this model, and its mechanical structure and design technology are stable and mature.
● This model has been marketed in Europe for more than ten years and has been recognized and appreciated by the majority of users.
● The machine adopts modular design and can be equipped with various five-face heads or five-axis heads. It is suitable for complex body processing needs such as aerospace, rail, automobile and locomotive sheet metal molds, aerospace parts, green energy industry, LCD panel molds, and shipbuilding industry.
● Built-in high-torque and powerful spindle provides a wide range of applications, including rough milling, semi-finish milling and fine milling.
● C-axis rotation angle ± 190˚ and minimum movement unit 0.001˚
● The spindle head adopts dual spindle (vertical and horizontal) design and 45˚ universal head design, which can save time in replacing the head.
● Provide 2+3 axes for five-sided milling
● All moving axes adopt a fully closed-loop optical scale feedback system.
● There is no need to configure an automatic switching device, saving maintenance and reducing the failure rate.
● It can be configured into dual work areas, one of which can work and the other can load and unload workpieces, saving time and improving efficiency.

Standard Accessories
Coolant system
Automatic lubrication system
LED work lamp
Tool box with adjust tools
Semi surrounded type splash guard
Spindle air blast
Work air blast
RS-232 interface
Rigid tapping
Spindle oil cooler
Leveling bolts and pads
Automatic power off (M30)
Air conditioner type heat exchanger for elect. cabinet
Air gun & coolant gun
Dual chip conveyors along X-ax
Chain type chip conveyor with cart
Optical scales for 3 axes
Ring-type encoders for B/C axes (TT2i, TTFG1)
Ring-type encoders for C axes (TT2S)

Optional Accessories
Chain type 60T ATC with vert./hori. tool changer (TT2S)
Chain type 32 / 40 / 60T ATC (TT2i, TTFG1)
Oil skimmer
Coolant through spindle system, 20 / 30 / 50 / 70 bar
Automatic tool length measuring device
Automatic workpiece measuring device
Oil mist collection unit
Rotating & tilting center point calibration kit
Transformer
CE regulation
TS regulation

Controller Options
Fanuc 31i-MB
Siemens ONE
Heidenhain TNC7
Fagor 8065 Power

X Axis: mm 4,000 or above (+1,000) ~ 40,000
Y Axis: mm 2,700 / 3,200 / 3,700
Z Axis: mm 1,000 (Opt.: 1,250)
Distance Between Columns (DBC): mm 2,500 / 3,000 / 3,500
C Axis (Rotating): degree +/-200, 5 index (Opt.: 0.001)
B Axis (Tilting): degree +/-95, 1 index
Table Size (X Axis direction): mm 4,000 or above (+1,000) ~ 40,000
Table Size (Y Axis direction): mm 2,000 / 2,500 / 3,000
T-slot Configuration (Width/Pitch): mm 22 / 240
Max. Loading: kg/m2 2500
Spindle Nose To Table Surface (Vert. spindle): mm 200~1,200 (Opt.: 200~1,450)
Spindle Nose To Table Surface (Hori. spindle) (TT2S): mm 340~1,340 (Opt.: 340~1,590)
Spindle Driven Method: Gear-driven
Spindle Taper: BT/CAT/DIN-50
Spindle Motor Power (TT2S): kW 18.5 / 30 (S1-Cont./ S3-25%)
Spindle Motor Torque (TT2S): Nm 698 / 1,130 (S1-Cont./ S3-25%)
Spindle Motor Power (TT2i): kW 37
Spindle Motor Torque (TT2i): Nm 500 / 700 (S1-Cont./ S6-40%)
Spindle Motor Power (TTFG1): kW 37
Spindle Motor Torque (TTFG1): Nm 860 / 1,100 (S1-Cont./ S6-40%)
Spindle Speed (TT2S, TTFG1): rpm 4,000
Spindle Speed (TT2i): rpm 5,000
X,Y Axes Rapid Feed: m/min 20
Z Axis Rapid Feed: m/min 20
Cutting Feed: m/min 10
ATC Type (TT2i, TTFG1): Chain type
ATC Type: Chain type with vert./hori. tool changer
Tool number: T 32 (Opt.: 40/60)
Max. Tool Weight: kg 8
Max. Tool Diameter (With Adj. Tool/Without Adj. Tool): mm Φ75 / Φ120
Max. Tool Length: mm 300
X/Y/Z Axis Positioning: mm 0.03 or above (+0.005 per meter)
X/Y/Z Axis Repeatability: mm 0.02 or above (+0.005 per meter)
Required Air Pressure: kg/cm2 6
Machine Weight: kg Please contact us for more info.
Machine Dimension (WxDxH): mm Please contact us for more info.
