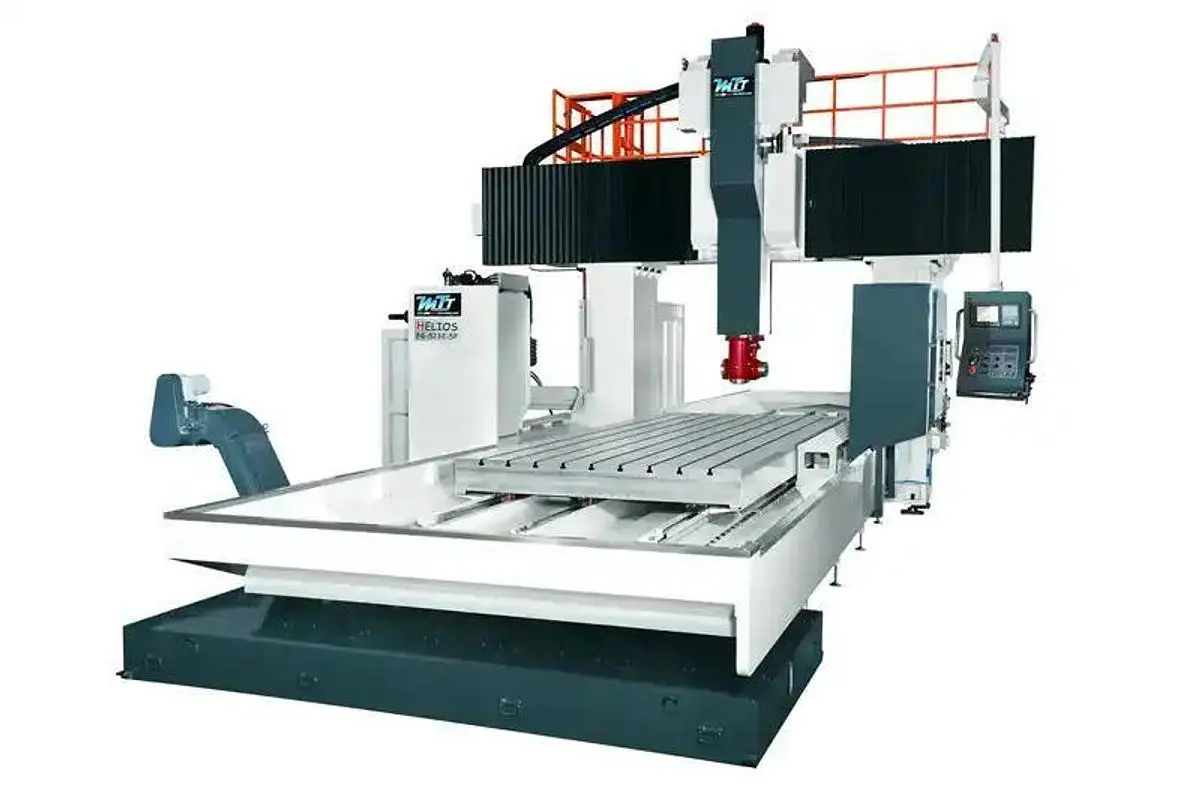

NEW TWINHORN UNIT FG-3227-5F FG-4227-5F

Widely used in various fields
ㆍAutomotive industry, railway industry, shipbuilding industry
ㆍConstruction Machinery, petrochemical industry, aerospace industry
ㆍMilitary Enterprise
The 5-axis machining center stands out as one of the high-efficiency, multifunctional solutions provided by Qifa Corporation. This machine tool features all-around machining capabilities, allowing processing on five different faces in a single clamping operation, significantly enhancing production efficiency.
A machine tool with exceptional rigidity starts with meticulous attention to detail, down to a single screw component. The HELIOS Gantry Series, backed by 40 years of design and manufacturing experience, develops and produces key components in-house, mastering core technologies to create top-tier machines.

Standard Accessories
Chain type 32T ATC with vert./hori. tool changer (TT2S)
Chain type 32 T ATC (TT2i, TTFG1)
Coolant system
Automatic lubrication system
LED work lamp
Tool box with adjust tools
Fully surrounded type splash guard
Spindle air blast
Work air blast
RS-232 interface
Rigid tapping
Spindle oil cooler
Leveling bolts and pads
Automatic power off (M30)
Air conditioner type heat exchanger for elect. cabinet
Air gun & coolant gun
Dual chip conveyors along X-ax
Chain type chip conveyor with cart
Foot switch for tool clamp/unclamp
5-sided milling heads (TT2S / TT2i / TTFG1)

Optional Accessories
Chain type 40 / 60T ATC with vert./hori. tool changer (TT2S)
Chain type 40 / 60T ATC (TT2i, TTFG1)
Fully enclosed type splash guard
Oil skimmer
Coolant through spindle system,  20 / 30 / 50 / 70 bar
Automatic tool length measuring device
Automatic workpiece measuring device
Oil mist collection unit
Optical scales for 3 axes
Transformer
CE regulation
TS regulation

Controller Options
Fanuc 0i-MF Plus
Mistubishi M80A
Fagor 8065 Elite
Siemens 828D
Heidenhain TNC7

X Axis: mm 3,200 4,200
Y Axis: mm 2,700
Z Axis: mm 1,000
Distance Between Columns (DBC): mm 2,000
C Axis (Rotating): degree +/-185, 5 index (Opt.: 0.001)
B Axis (Tilting): degree +/-95, 1 index
C Axis (Tilting): degree +/-200, 5 index (Opt.: 0.001)
Table Size: mm 3,000 x 1,600 4,000 x 1,600
T-slot Configuration (Width/Pitch): 7 / 22 / 200
Max. Loading: kg 10,000 12,000
Spindle Nose To Table Surface (Vert. spindle): mm 200 ~1,200 (Opt.: 200~1,450)
Spindle Nose To Table Surface (Hori. spindle) (TT2S): mm 340 ~1,340 (Opt.: 340~1,590)
Spindle Driven Method: Gear type
Spindle Taper: BT/CAT/DIN-50
Spindle Motor Power (TT2S): kW 18.5 / 30 (S1-Cont./ S3-25%)
Spindle Motor Torque (TT2S): Nm 698 / 1,130 (S1-Cont./ S3-25%)
Spindle Motor Power (TT2i): kW 37
Spindle Motor Torque (TT2i): Nm 500 / 700 (S1-Cont./ S6-40%)
Spindle Motor Power (TTFG1): kW 37
Spindle Motor Torque (TTFG1): Nm 860 / 1,100 (S1-Cont./ S6-40%)
Spindle Speed (TT2S, TTFG1): rpm 4,000
Spindle Speed (TT2i): rpm 5,000
X,Y Axes Rapid Feed: m/min 15 / 15
Z Axis Rapid Feed: m/min 10
Cutting Feed: m/min 10
ATC Type (TT2S): Chain type with vert./hori. tool changer
ATC Type (TT2i, TTFG1): Chain type
Tool Number: T 32 (Opt.: 40 / 60)
Max. Tool Weight: kg 8
Max. Tool Diameter (With Adj. Tool/Without Adj. Tool): mm Φ80 / Φ150
Max. Tool Length: mm 300
X/Y/Z Axis Positioning: mm 0.025 0.03
X/Y/Z Axis Repeatability: mm 0.02 0.025
Required Air Pressure: kg/cm2 6
Machine Weight: kg 30,000 35,000
Machine Dimension (WxDxH): mm 8,300 x 5,900 x 5,400 11,000 x 5,900 x 5,400
