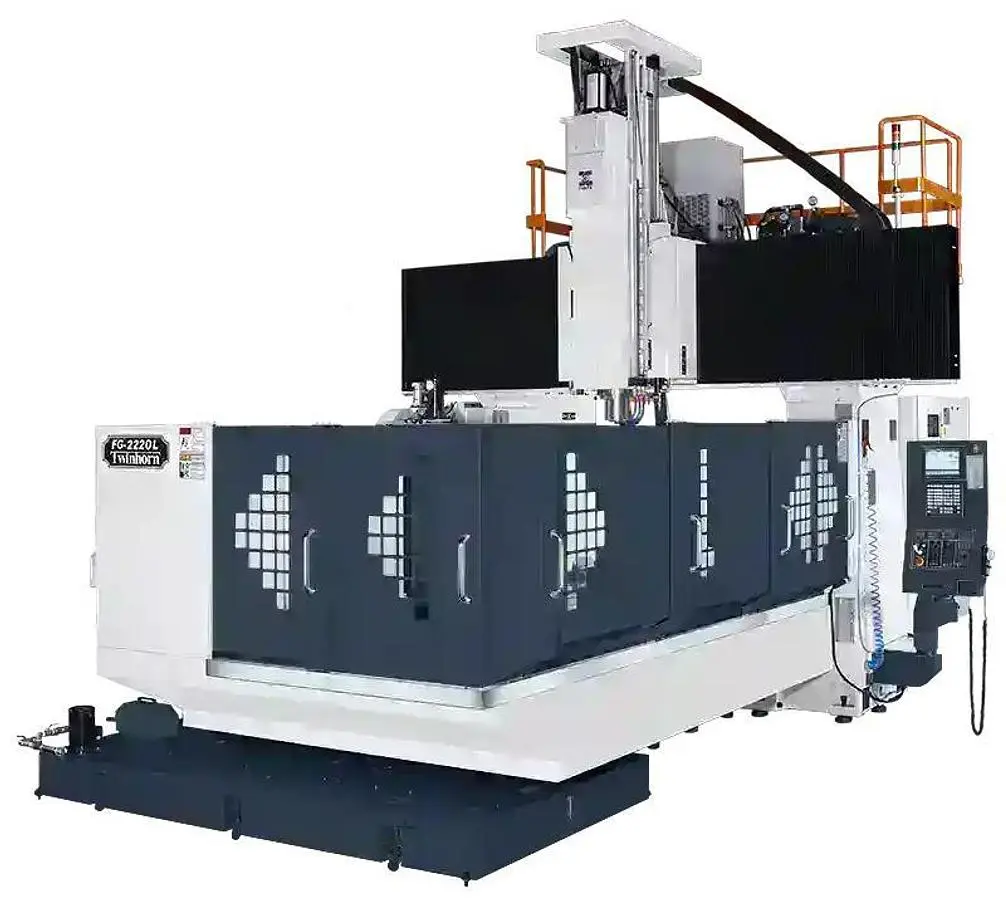

NEW TWINHORN UNIT FG-2220L / LG FG-2720L / LG FG-3220L / LG FG-4220L / LG

To produce a high rigid machine tool, it needs to start from rigorous requirement of a small screw. With over 30 years of design and manufacturing experience, Chi-Fa's FG series double column machining center has been developed and manufactured in-house throughout the entire machine. Only with this way, we can fully understand how to optimize combination and running for the thousands of parts on a large machine tool, that also allow us to build the optimum machine structure.
ㆍZ-axis is a box way design and sliding surfaces are precisely scraped to ensure the service life of the slide ways. The box ways and the ram are one-piece fabricated to achieve no clearance between the slideways and the saddle. This feature is normally requested by a high end machine.
ㆍClass C3 Ball Screws on Three Axes: Ball screws have been pre-tensioned to ensure machining accuracy under heavy loading condition for a long time.
ㆍTable, Spindle Head & Saddle: Manufactured from high quality Meehanite cast iron, they feature ultra high rigidity, excellent absorbing capacity and wear-resistance.
ㆍBase, Beam & Column: These structural parts are manufactured with multi-walls with internal rib, welded by high strength steel plates with tempered and stress-elieved. With the meticulous design, various structural parts will provide the best possible vibration absorbing performance and rigidity.

Standard Accessories
Chain type 32T ATC
Coolant system
Automatic lubrication system
LED work lamp
Tool box with adjust tools
Semi surrounded type splash guard
Spindle air blast
Work air blast
RS-232 interface
Rigid tapping
Spindle oil cooler
Leveling bolts and pads
Automatic power off (M30)
Air conditioner type heat exchanger for elect. cabinet
Air gun & coolant gun
Dual chip conveyors along X-ax
Chain type chip conveyor with cart
Foot switch for tool clamp/unclamp

Optional Accessories
Built-in spindle 8,000 / 10,000 rpm (BBT-50 / HSK-A100)
Built-in spindle 12,000 / 15,000 rpm (BBT-40)
Chain type 40 / 60T ATC
Fully enclosed type splash guard
Oil skimmer
Coolant through spindle system, 20 / 30 / 50 / 70 bar
Automatic tool length measuring device
Automatic workpiece measuring device
Optical scales for 3 axes
90 degree milling head
Universal milling head
A/C axis milling head
Transformer
CE regulation
TS regulation

Controller Options
Fanuc 0i-MF Plus
Mitsubishi M80A
Fagor 8060 Elite
Siemens 828D
Heidenhain TNC7

X Axis: mm 2,200 2,700 3,200 4,200
Y Axis: mm 2,000
Z Axis: mm 1,000
Distance Between Columns (DBC): mm 2,000
Table Size: mm 2,000 x 1,600 2,500 x 1,600 3,200 x 1,600 4,200 x 1,600
T-slot Configuration (Width/No./Pitch): mm 22 / 7 / 200
Max. Loading: kg 8,000 9,000 10,000 12,000
L Series: mm BBT-50: 350, BBT-40: 250
LG Series: mm BT/CAT/DIN-50: 350
X, Y Axes Rapid Feed: m/min 15 / 20
Z Axis Rapid Feed: m/min 10
Cutting Feed: m/min 7.5
ATC Type: Chain type
Tool Number: T 32 (Opt.: 40 / 60)
X/Y/Z Axis Positioning: mm +/-0.005 / 300, +/-0.015 / full length
X/Y/Z Axis Repeatability: mm +/-0.003
Required Air Pressure: kg/cm2 6
Machine Weight: kg 23,000 25,000 28,000 33,000
Machine Dimension (WxDxH): mm 6,831 x 4,503 x 5,600 7,918 x 4,503 x 5,600 8,988 x 4,503 x 5,600 11,088 x 4,503 x 5,600
