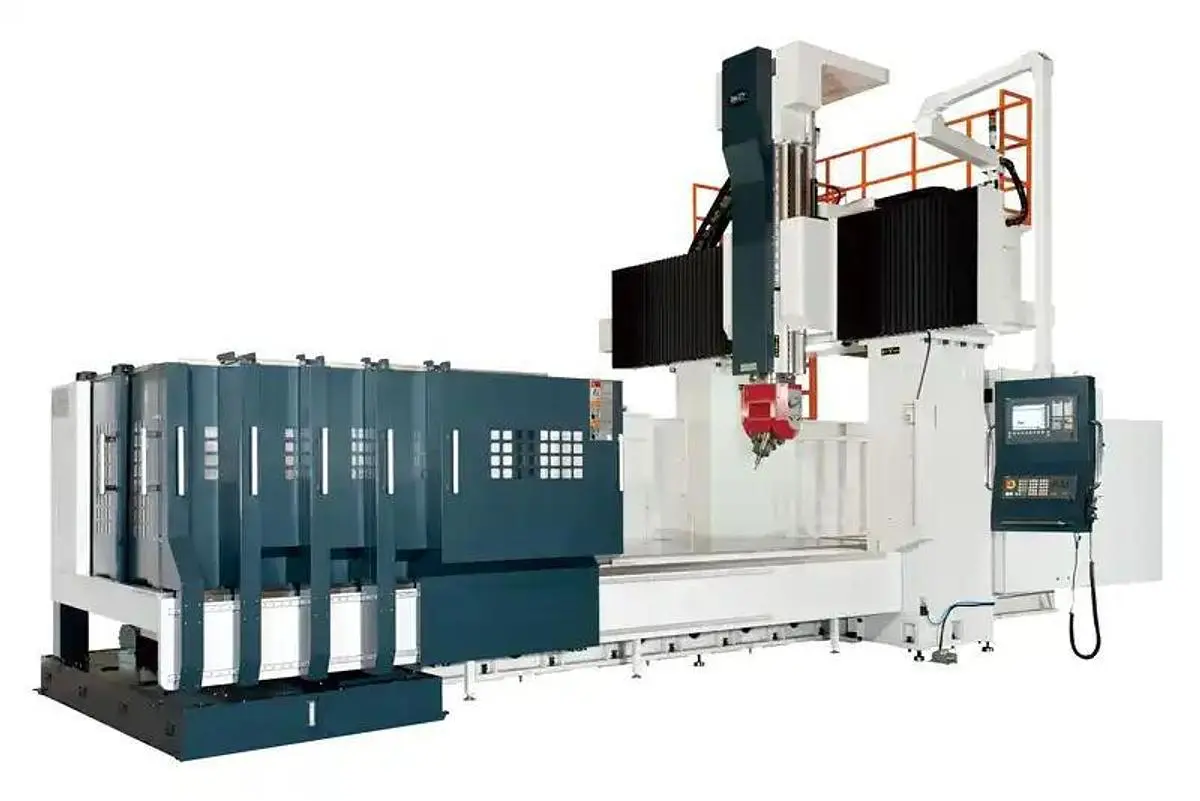

NEW TWINHORN UNIT FG-2725-5A FG-3225-5A FG-4225-5A

Finite Element Analysis is applied to simulate
the machine structure under realistic loading
conditions. All structural components are
optimized to meet the required rigidity and
stability.
ㆍHigh rigidity cross-roller linear guides:X, Y, Z Axes adopts rigid, high-precision and smooth running guide ways. Mutiple blocks and guide ways along the same axis
enhance the static and dynamic loading capacity, thus guarantee accuracy and long service life.
ㆍHigh rigidity crossbeam structure design:The muti-layered steel column structure is specially reinforced and widened at the base to achieve the stability, rigidity and
vibration damping characteristic required during high pricision and high chip removal rate operations.
ㆍHigh performance five Axis milling head:C-axis is powered by a DD motor to achieve high speed, and B-axis is driven by a servo motor with specially designed zero backlash transmission to minimize the head size.

Standard Accessories
Chain type 32T ATC
Coolant system
Automatic lubrication system
LED work lamp
Tool box with adjust tools
Fully surrounded type splash guard
Spindle air blast
Work air blast
RS-232 interface
Rigid tapping
Spindle oil cooler
Leveling bolts and pads
Automatic power off (M30)
Air conditioner type heat exchanger for elect. cabinet
Air gun & coolant gun
Dual chip augers along X-ax
Chain type chip conveyor with cart
Foot switch for tool clamp/unclamp
Optical scales for 3 axes
Ring-type encoders for A/C axes
A/C axes milling head (TTFE3)

Optional Accessories
Built-in spindle 15,000 rpm
Chain type 40 / 60T ATC
Fully enclosed type splash guard
Oil skimmer
Coolant through spindle system,  20 / 30 / 50 / 70 bar
Automatic tool length measuring device
Automatic workpiece measuring device
Rotating & tilting center point calibration kit
Transformer
CE regulation
TS regulation

Controller Options
Fanuc 31i MB5
Siemens ONE
Heidenhain TNC7
Fagor 8065 Power

X Axis: mm 2,700 3,200 4,200
Y Axis: mm 2,500
Z Axis: mm 1,000
Distance Between Columns (DBC): mm 2,000
C Axis (Rotating): degree +/-200
Table Size: mm 2,500 x 1,600 3,000 x 1,600 4,000 x 1,600
T-slot Configuration (Width/Number/Pitch): 7 / 22 / 200
Max. Loading: kg 9,000 10,000 12,000
Spindle Nose To Table Surface: mm 120 ~ 1,120
Spindle Driven Method: Built-in
Spindle Taper: HSK-A63
Spindle Motor Power: kW 35 / 49 (S1-Cont./ S6-40%)
Spindle Motor Torque: Nm 120 / 170 (S1-Cont./ S6-40%)
Spindle Speed: rpm 12,000 (Opt.: 15,000)
X,Y Axes Rapid Feed: m/min 20 / 20 20 / 20 15 / 15
Z Axis Rapid Feed: m/min 12
Cutting Feed: mm/min 10
ATC Type: Chain type
Tool Number: T 32 (Opt.: 40 / 60)
Max. Tool Weight: kg 8
Max. Tool Diameter (With Adj. Tool/Without Adj. Tool): mm Φ80 / Φ150
Max. Tool Length: mm 300
X/Y/Z Axis Positioning: mm 0.023 0.025 0.03
X/Y/Z Axis Repeatability: mm 0.018 0.02 0.025
Required Air Pressure: kg/cm2 6
Machine Weight: kg 25,000 30,000 35,000
Machine (WxDxH): mm 7,990 x 4,900 x 5,590 7,990 x 4,900 x 5,590 11,125 x 4,900 x 5,590
