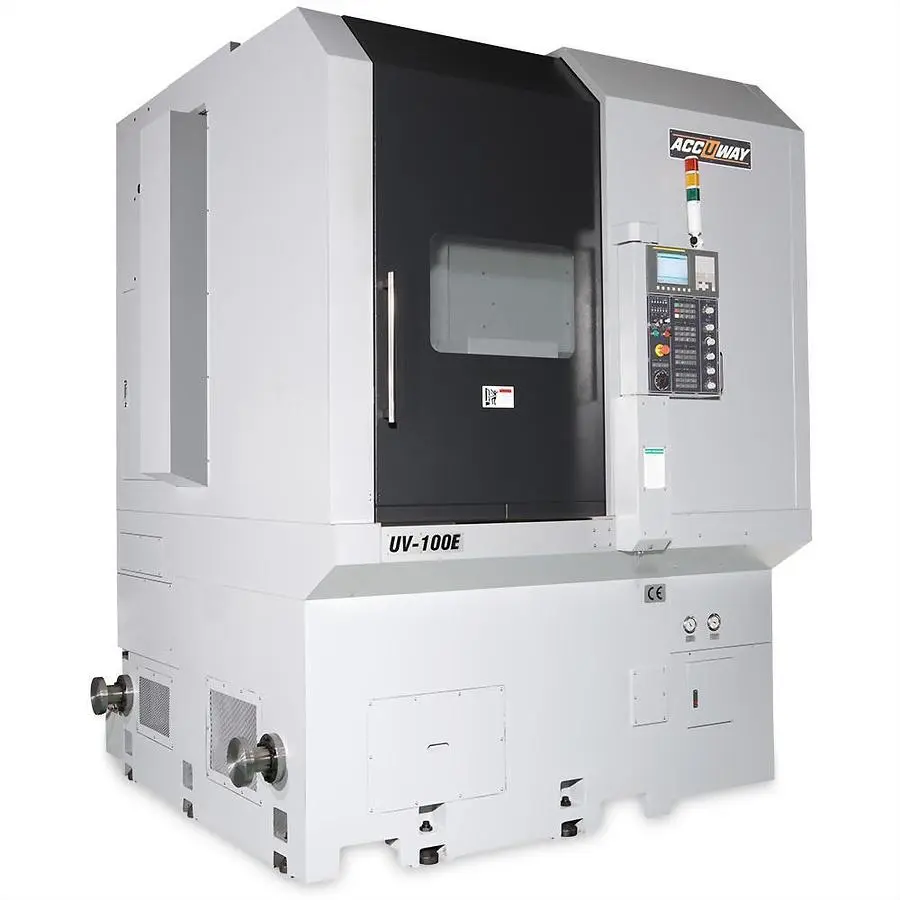

NEW ACCUWAY UV-100E

Vertical Turning Center

STANDARD ACCESSORIES
FANUC 0i-T controller
RJ-45 interface
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Hydraulic power supply unit
Lubrication system
4-bar coolant system
Three-color warning light
Single chain type chip conveyor + chip cart
Tool kit

OPTIONAL ACCESSORIES
Upgrade to 15" Colored LCD monitor
Tool setter
12 station servo turret
Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet
Spindle power upgrate (45/55) kW
Upgrade to non-through hole 3-jaw 32"(40")  hydraulic chuck & cylinder
Transformer
CE version
Auto door
Linear scale (Heidenhain)

Controller: FANUC 0i-T
Swing over bed: mm 1100
Max. turning diameter: mm 1000
Max. turning length: mm 700
Guide way type: Box way
Spindle nose taper: ASA A2-15
Chuck diameter: inch 24(32/40)
Spindle Speed: rpm 1200
Spindle drive system: 2-step gearbox +
Belt
Spindle Motor Power(Cont. /30min): kW 30/37
(37/45,45/55)
X-axis Travel: mm 550
Z-axis Travel: mm 800
X-axis Rapid Traverse Rate: m/min 15
Z-axis Rapid Traverse Rate: m/min 7
Tooling system: BOT
Turret driven type: Hydraulic
Number of tools: station 12
Square tool shank size: mm 32
Round tool shank size: mm 50
Machine dimension L x W x H: m 3.1 x 3.7 x 4.2
Net weight: kg 16000
